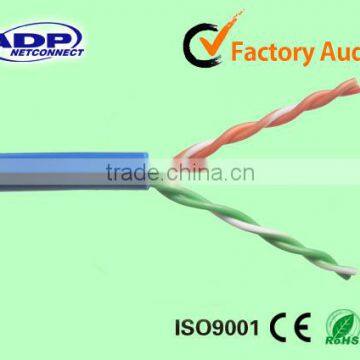

One pair telephone cable HYV
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | shenzhenADP cables | |
| Model Number | HYV | Type | Indoor | |
| Shielded Cable | No | Conductor Material | CU,CCA,CCS | |
| Jacket Color | white or optional | Jacket Material | pvc | |
| Length | 100m coil |
Product Description
Specifications
One pair telephone cable1.factory price
2,high transmission speed, low loss of signal.
One pair telephone cable HYV
Description:
1.standard: YD/T630-93
2, inner conductor: single annealing bare copper, OD: 0.4 mm and 0.5 mm or 0.8mm, 1.0mm
3.No. of conductor: can be 2/4/6/8 cores
4, insulation: HDPE
5.sheath:PVC or PE
6.features: high purity oxygen free copper phone line, transmission attenuation is small, small loss of signal, timbre clear no noise, no distance.
Application:
Communication engineering, wiring, wiring connection between indoor telephone communication cable system, voice communication system between the main line, program-controlled switches, phone, fax and digital phone
Electrical Characteristics:
Frequency(MHz): 1 4 8 10 16
Attenuation(dB/100m): 2. 6 5. 6 8. 5 9. 7 13. 1
Impedance(ohm): 100 100 100 100 100
Return Loss(dB): 12. 0 12. 0 12. 0 12. 0 12. 0
NEXT(dB/100m): 41. 3 32. 3 27. 8 26. 3 23. 3
PS NEXT(dB/100m): 41. 3 32. 3 27. 8 26. 3 23. 3
Packing:
1) Packing Lengths:
100m/roll Other lengths available according to client's request.
2) Inner packing:Coil, Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
HYV4*1/0.5 BC Round
HBYV4*1/0.5 BC Flat
