300/500v flexible 3cx1.5mm2 rvv cable
Negotiable
/ Roll
300 Rolls(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
-
227 iec 52(rvv) pvc cable flexible 3cx1.5mm2 rvv cable
-
227 iec 53 rvv cable flexible copper cable electrical cable wire 3mm
-
2*1,5 pvc insulated pvc jacked rvv cable
-
h07vvf flexible cable 6mm2 copper rvv cable
-
227 iec 53 rvv cable flexible copper cable electric wire and cable 16mm
-
227 iec 53 rvv cable flexible copper cable electrical cable wire 10mm
Product Details
| Place of Origin | Guangdong, China | Brand Name | ADP&OEM | |
| Model Number | fire alarm cable | Conductor Material | Other, strand copper | |
| Jacket | PVC | Insulation Material | PVC |
Product Description

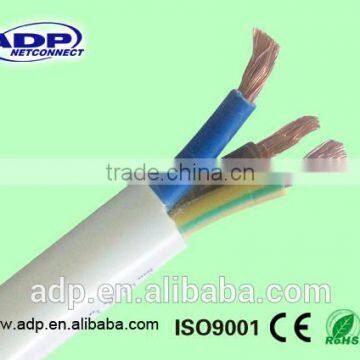

300/500v flexible 3cx1.5mm2 rvv cable
RVV cable
Description:
Using twisted-pair multiple independent bare copper conductor
PVC insulated
PVC casing
300/500 v rated voltage
Long-term working temperature: 70 °C
Condutor:2-24 cores is available
cross section of every core:1/1.5/2.5 sq meter is available
Application:
To communicate under the 300/500 v rated voltage of electrical devices, equipment and lighting using electrical equipment and power line, the line of control and signal transmission line.
Applicable to safety monitoring engineering anti-theft alarm system, building systems and lines
Specification:
2×0.50,3×0.50,4×0.50,5×0.50,6×0.50,7×0.50,8×0.50,10×0.50,12×0.50,18×0.50,25×0.50,36×0.50.
2×0.75,3×0.75,4×0.75,5×0.75,6×0.75,7×0.75,8×0.75,10×0.75,12×0.75,18×0.75,25×0.75,36×0.75.
2×1.0,3×1.0,4×1.0,5×1.0,6×1.0,7×1.0,8×1.0,10×1.0,12×1.0,18×1.0,25×1.0,36×1.0.
2×1.5,3×1.5,4×1.5,5×1.5,6×1.5,7×1.5,8×1.5,10×1.5,12×1.5,18×1.5,25×1.5,36×1.5.
2×2.5,3×2.5,4×2.5,5×2.5,6×2.5,7×2.5,8×2.5,10×2.5,12×2.5,18×2.5,25×2.5,36×2.5.
3×4.0,4×4.0,5×4.0,7×4.0.
3×6.0,4×6.0,5×6.0,7×6.0.
3×10.0,4×10.0,5×10.0.
3×16.0,4×16.0,5×16.0.
4×25.0,5×25.0.
4×36.0,5×36.0.
Technical parameters:
CORES×CROSS SECTION(mm) | SPECIFICATION | THICKNESS OF INSULATION mm | THICKNESS OF JACKET mm | 20°C CONDUTOR RESISTANCE Ω/km | |
Cu | TC | ||||
2×0.5 | 16/0.20 | 0.5 | 0.6 | 39.0 | 40.1 |
2X0.75 | 24/0.20 | 0.6 | 0.8 | 26.0 | 26.7 |
2X1 | 32/0.20 | 0.6 | 0.8 | 19.5 | 20.0 |
2X1.5 | 30/0.25 | 0.7 | 0.8 | 13.3 | 13.7 |
2X2.5 | 49/0.25 | 0.8 | 1.0 | 7.98 | 8.21 |
3×0.5 | 16/0.20 | 0.6 | 0.6 | 39.0 | 40.1 |
3X0.75 | 24/0.20 | 0.6 | 0.8 | 26.0 | 26.7 |
3X1 | 32/0.20 | 0.6 | 0.8 | 19.5 | 20.0 |
3X1.5 | 30/0.25 | 0.7 | 0.9 | 13.3 | 13.7 |
3X2.5 | 49/0.25 | 0.8 | 1.1 | 7.98 | 8.21 |
4X0.75 | 24/0.20 | 0.6 | 0.8 | 26.0 | 26.7 |
4X1 | 32/0.20 | 0.6 | 0.9 | 19.5 | 20.0 |
4X1.5 | 30/0.25 | 0.7 | 1.0 | 13.3 | 13.7 |
4X2.5 | 49/0.25 | 0.8 | 1.1 | 7.98 | 8.21 |
5X0.75 | 24/0.20 | 0.6 | 0.9 | 26.0 | 26.7 |
5X1 | 32/0.20 | 0.6 | 0.9 | 19.5 | 20.0 |
5X1.5 | 30/0.25 | 0.7 | 1.1 | 13.3 | 13.7 |
5X2.5 | 49/0.25 | 0.8 | 1.2 | 7.98 | 8.21 |
Pictures for show:
