Home > Products > rg slmr coaxial cable > RG6/ RG11 / RG59 Coaxial Cable PVC/PE/ LDPE Waterproof AMPED PVC Jacket

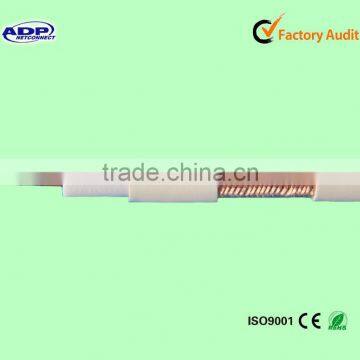

RG6/ RG11 / RG59 Coaxial Cable PVC/PE/ LDPE Waterproof AMPED PVC Jacket
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ADP | |
| Model Number | RG6u | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
CCTV/CCAV Satelite Cable RG6/ RG11 / RG59 Coaxial Cable
Applications:
For use in communication and signal control systems
1). Computer Network Outdoor Cabling Project
2). Broadband Network Communication
3). Digital ISDN Network and ATM 155Mbps Network
4). Ethernet Network
5). Audio and Data Transmission
coaxial cable(RG6/RG11/RG58/RG59)
Construction and Dimension | |||||
Item | RG59 | RG58 | RG6 | RG7 | RG11 |
Material of inner conductor | Cu | Cu | Cu | Cu | Cu |
Diameter of inner conductor(mm) | 0.81±0.02 | 19*0.20±0.01 | 1.00±0.02 | 1.29±0.02 | 1.63±0.02 |
Material of dielectric | Foam PE | PE | Foam PE | Foam PE | Foam PE |
Diameter of Dielectric(mm) | 3.66±0.15 | 2.95 | 4.57±0.01 | 5.72 | 7.11 |
Material of Shield | ALfoil+Al brading | BC/TC braiding | ALfoil+Al brading | ALfoil+Al brading | ALfoil+Al brading |
Coverage | 40%--95% | 95% | 40%--95% | 40%--95% | 40%--95% |
Diameter of 1st outer conductor(mm) | 3.90 | 4.90 | 5.90 | 7.52 | |
Diameter of 2nd outer conductor | 4.12 | 5.00 | 7.80 | ||
Material of Jacket | PVCPE | PVCPE | PVCPE | PVCPE | PVCPE |
Diameter of Jacket | 6.30 | 4.95 | 6.90 | 8.10 | 10.16 |
USE:Mainly used in the fields of closed-circuit television system,CATV system and other electronic equipments.
Sample:sample can be available if want final checking.
coaxial cable(RG6/RG11/RG58/RG59)
Not sure about product quality? Find reliable inspectors to help ensure product quality!
- Related Searches:
- category 5e cable , rf cable assembly , ethernet cable price , box cables , fiber communication , utp networking cable , fiber optic patch cords , cable antenna , video coaxial , fiber sc patch cord More..
Company Information - Site Map - Partnerships
Buy - Sell - My Alibaba - Community - Trade Shows - Safety & Security - Help - Contact Us
Browse by:Manufacturers - Wholesalers - China Gold Suppliers - All Products - Countries - Importers - Buying Leads - China - India - UK - Australia
Alibaba Group: : Alibaba China - Alibaba International - AliExpress | Taobao Marketplace | Taobao Mall | eTao | Juhuasuan | Alibaba Cloud Computing | China Yahoo! | Alipay
Product Listing Policy - Intellectual Property Policy and Infringement Claims - Privacy Policy - Terms of Use
Copyright Notice © 1999-2012 Hong Kong Limited and licensors. All rights reserved.
specification:
Attenuation: [@68 F. (20 C) ] dB/100meters
5MHz: 1.25dB 400MHz: 8.53dB
55MHz: 3.15dB 450MHz: 9.02dB
83MHz: 3.87dB 500MHz: 9.51dB
187MHz: 5.74dB 550MHz: 9.97dB
211MHz: 6.23dB 600MHz: 10.43dB
250MHz: 6.72dB 750MHz: 11.97dB
300MHz: 7.38dB 865MHz: 13.05dB
350MHz: 7.94dB 1000MHz: 14.27dB
