Home > Products > Controllers, Dimmers, Amplifiers > LED Controller WIFI

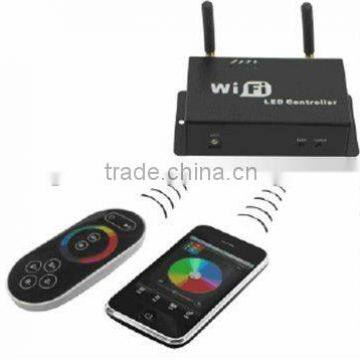

LED Controller WIFI
- 300000 Piece / Pieces per Month
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | QL Light | |
| Model Number | QL-CTL-WIFI-RGB-31 LED Controller WIFI | Type | Remote Control | |
| Max. Load Power | 288W | Voltage | Other, DC5V-DC24V |
Product Description
Specifications
LED Controller WIFI1. For IOS and Android operating system
2. DC5V-DC24V
3. 4A*3Channels
4. High Quality, best service
LED Controller WIFI Technical Parameters:
1. Remote control technical parameters
1:Working temperature:-20-60°C
2:Power supply method:AAA*3
3:Supply voltage:1.5V*3
4:Standby power:0.015mW
5:Standby current:3uA
6:Working current:200uA
7:Emission current:10mA
8:Remote control distance:about 50m
9:Standby time:6 months
2. Software technical parameters
1:Name:Magic Color 1.0
2:Runtime platform:Android version support Android system, IOS version support IOS
system, equipment must have WiFi function.
3:Byte: Android version(622K),IOS version(581K).
4:Language: English
5:Category: communications
6:Free, green, no plug-ins
3. Controller technical parameters
1:Working voltage: DC5--24V
2:Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.
3:Output current: 4A*3
4:Connect mode: common anode
5:Packing size:L215*W165*H55(mm)
6:External dimension: L107*W65*H30(mm)
7:Net weight:340g
8:Gross weight:480g
9:Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g
OFDM(-15dBm)
LED Controller WIFI Typical Application :
