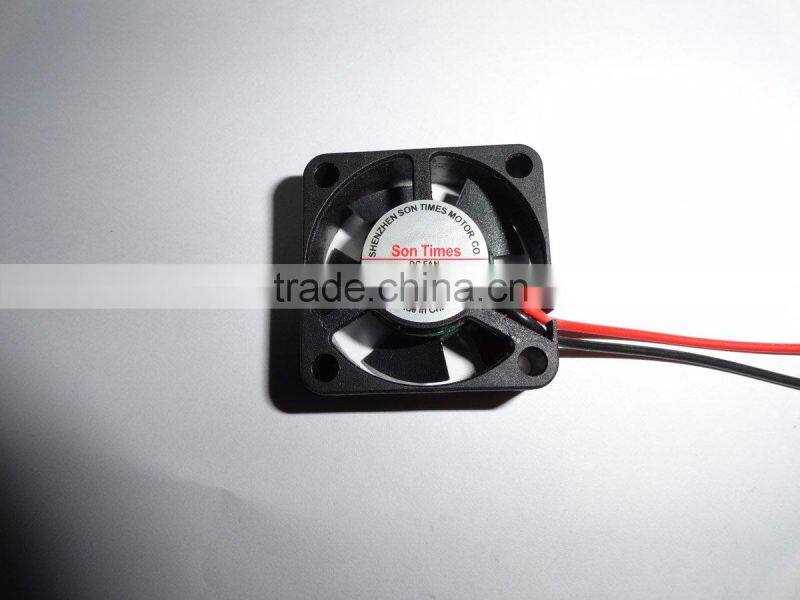

Low Noise dc Fan 5v 12v 30mm
US$ 0.75 - 2.05
/ Piece
1000 Pieces(Min. Order)
- shenzhen
- Credit Card
You May Like
Product Details
| Electric Current Type | DC | Mounting | Free Standing | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | son times | Model Number | ST3010HS(B) | |
| Voltage | 5v/12v | Power | 0.48-0.76W | |
| Air Volume | 12-18CFM | Speed | 6000-10000RPM | |
| Certification | CE |
Product Description
Specifications
1.low noise dc fan 5v 12v2.Size:30*30*10mm
3..Sleeve bearing/ball bearing
4.Max airflow:18CFM,5/12v
5.Max noise:28.4db
low noise dc fan 5v 12v
| Frame size(mm) | 30*30*10mm |
| Bearing type | hypro bearing.sleeve.ball bearing |
| Rated voltage | 5V |
| Rated speed | 9500RPM |
| Max air flow | 5.6CFM |
| Max pressure | 5.49mmAq |
| Max noise | 28.4dBA |
| Functions | by impedance,by IC, FG |
| Safety approvals | CE ROHS |
| Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
| Insulation resistance | 10M ohm between lead wire and frame(DC 500V) |
| Life expectancy(ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Operation temperature | -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
| Storge temperature | -40~75 degree C(-40~167 degree F) |
| Protection | Motor protection and polarity protection |
| Lead wire | UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
| Plastic material | Motor protection and polarity protection |
