Excellent Quality Axial Flow Fan
US$ 0.45 - 1.5
/ Piece
1000 Pieces(Min. Order)
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Electric Current Type | DC | Mounting | Free Standing | |
| Blade Material | Plastic | Place of Origin | Guangdong, China | |
| Brand Name | SON TIMES | Model Number | ST3010HS | |
| Voltage | 5V/ 12V | Power | 0.40-0.84W | |
| Air Volume | 12-18CFM | Speed | 6000-10000RPM | |
| Certification | CE |
Product Description
Specifications
1.low noise dc mini fan2.size:30*30*10mm
3.bearing type:sleeve,ball bearing
4.rated voltage:5v 12v
5.low noise,long-life
low noise dc mini fan

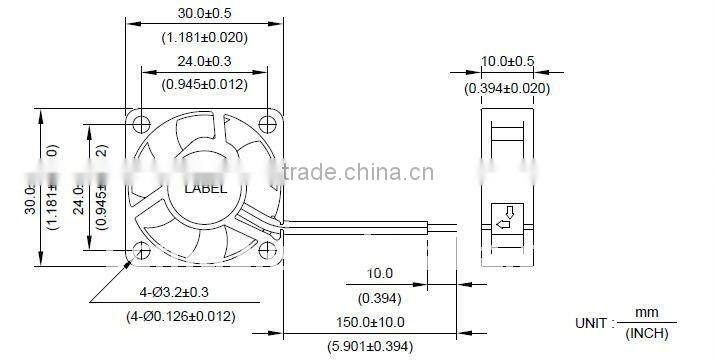

| Frame size(mm) | 30*30*10mm |
| Bearing type | ball bearing/sleeve |
| Rated voltage | 5/12v |
| Rated speed | 8000-10000RPM |
| Max air flow | 12-18CFM |
| Max pressure | 0.07-0.15inch-H2O |
| Max noise | 16-18dBA |
| Functions | by impedance,FG |
| Safety approvals | CE ROHS |
| Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
| Insulation resistance | 100M ohm between lead wire and frame(DC 500V) |
| Life expectancy(ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Operation temperature | -10~80 degree C(+14~176 degree F) |
| Storge temperature | -40~75 degree C(-40~167 degree F) |
| Protection | Motor protection and polarity protection |
| Lead wire | UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30 |
| fan blade material | Black PBT (UL94V-0) glass filled |
| frame material | PBT |
| Weight | 8g |
