Home > Products > fiber optic cable indoor > GYFTY Outdoor Fiber Optical Cable

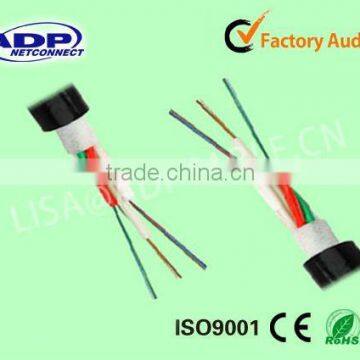

GYFTY Outdoor Fiber Optical Cable

FOB Price

US$ 100 - 500 / Kilometer

2 Kilometers(Min. Order)

Port shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	ADP or OEM
Model Number	Fiber Optical Cable

Product Description

Specifications

GYFTY Outdoor Fiber Optical Cable
1.For Outdoor Used Fiber Optical Cable
2.CE, RoHS, ISO listed
3. OEM available

GYFTY Outdoor Fiber Optical Cable

Fiber Optical Cable

Product Description

GYFTY cable is an outdoor communication optical cable of metal strength member of the loose tube jelly-filled structure with steel-polyethylene laminated sheath.

Features and Benefits :

Full cross-section water-blocking structure, double-sided coated film steel belt longitudinal application
Loose tube is filled with special grease to ensure good water blocking and moisture performance
For critical fiber protection, the phosphate wire center stiffening member is of high modulus and the corrosion-resistant product has more than 30 years of service life.

Applications:

Long haul and building network communication

Installation

Duct/ Aerial

Bending Radius:

Static 10*Cable-diameter:

Dynamic 20*Cable-diameter

Technical Parameters

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~30	10.0	110	6	5	1500	600	1000	300
32~36	10.7	132	6	6	1500	600	1000	300
38~60	11.4	139	12	5	1500	600	1000	300
62~72	12.0	165	12	6	1500	600	1000	300
74~96	13.8	204	12	8	2000	600	1000	300
98~120	15.3	240	12	10	2000	600	1000	300
122~144	17.0	284	12	12	2500	600	1000	300
146~216	17.1	285	12	18 (2 layers)	2500	600	1000	300
218~288	19.5	350	12	24 (2 layers)	3000	600	1000	300

Note:

1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material, and the type is GYTZS.

2.Upon customer’s request, cables with longitudinal color strip on outer sheath can be offered. More details, please refer to GYTA series.

3. Special cable structure can be designed and manufactured on customer’s request.

We produce and test cable comply with following standard:

Mechanical Performance
Max Tension Performance	IEC 60794–1-2-E
Max. Operation Tension	IEC 60794–1-2-E1
Crush Test	IEC 6079 –1-2-E3
Impact Test	IEC 60794–1-2-E4
Repeated Bending	IEC 60794–1-2-E6
Torsion Test	IEC 60794–1-2-E7
Cable bend	IEC 60794–1-2-E11A
Attenuation Coefficient	ITU-T G.652
Structural Test	IEC-60793-1-20
Environmental Performance
Temperature Cycling	IEC 60794–1-2-F1
Water Penetration	IEC 60794–1–2-F5B
Filing Compound Flow	IEC 60794-1-E14

Sheath marking:

The color of marking is white, but if the remarking is necessary, the white color marking shall be printed newly on a different position.

An occasional unclear of length marking is permitted if both of the neighboring markings are clear.

The both cable ends are sealed with heat shrinkable end caps to prevent water ingress.
