Home > Products > Non-pressurized Solar Water Heater > 2015 The Best Compact Solar Water Heater
2015 The Best Compact Solar Water Heater
- shanghai/ningbo
- T/T Credit Card
You May Like
Product Details
| Type | Evacuated Tube | Pressure | Unpressurized | |
| Circulation Type | Direct / Open Loop (Active) | Heating System | Batch / ICS (Passive) | |
| Connection Type | Direct-Plug | Installation | Freestanding | |
| Housing Material | Other, Color Steel | Certification | Other, RoHS | |
| Capacity | 200, 80L-400L | Place of Origin | Zhejiang, China | |
| Brand Name | OU'SUN/OEM | Model Number | OS-UP-T87 |
Product Description

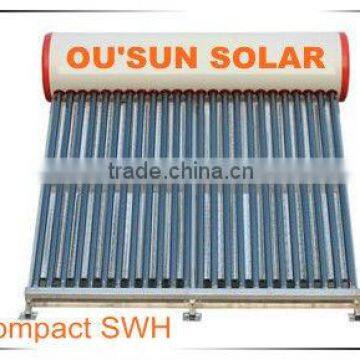

2015 The Best Compact Solar Water Heater
This system uses the thermosiphon principle, Solar vacuum tube is pluged into the bottom of water tank,
The water is filled inside the solar vacuum tube, Solar vacuum tube transmit solar energy to heat energy,
The temperature of water inside solar vacuum tube is rising, As the thermosiphon principle,
the hot water rise up, and arrive in the water tank, the cold water inside the water tank go down the solar vacuum tube,
so the system runs by this circulation way until the water become very hot.
Specification:
1. Water tank inner steel: 0.4~0.5mm SUS304-2B (food grade stainless steel).
2. Water tank outer steel: 0.4mm colored steel or 0.4 mm SUS304-2B.
3. Stand: galvanized steel with painting, or aluminium alloy, or stainless steel.
4. Water tank heat insulation layer: 50~60 mm polyurethane foam.
5. Stand angle: 15 degree, 20 degree, 25 degree, 30 degree, 38 degree, 45 degree, 51 deg
Model | Ligthing | Vacuum Tube | Supply hot | 20/40" container | ||
diameter | length | No. | ||||
IPJG420-1500/47-12 | 1.26 | Ø47mm | 1500mm | 12 | 70 | 90/205 |
IPJG420-1500/47-18 | 1.80 | 18 | 100 | 63/147 | ||
IPJG420-1500/47-24 | 2.49 | 24 | 130 | 50/116 | ||
IPJG420-1500/47-30 | 3.15 | 30 | 160 | 38/89 | ||
IPJG470-1500/47-12 | 1.26 | Ø47mm | 1500mm | 12 | 90 | 78/176 |
IPJG470-1500/47-18 | 1.80 | 18 | 130 | 62/136 | ||
IPJG470-1500/47-24 | 2.49 | 24 | 168 | 51/108 | ||
IPJG470-1500/47-30 | 3.15 | 30 | 210 | 42/90 | ||
IPJG470-1800/58-12 | 1.68 | Ø58mm | 1800mm | 12 | 100 | 66/146 |
IPJG470-1800/58-18 | 2.57 | 18 | 150 | 48/110 | ||
IPJG470-1800/58-24 | 3.40 | 24 | 200 | 32/76 | ||
IPJG470-1800/58-30 | 4.32 | 30 | 250 | 26/63 | ||
The main business of our company is three kinds of solar water heaters, there are compact non-pressurized solar water heater, split pressurized solar water heater and heat pipe compact solar water heater.
If you are interested in our products, welcome to enter our home page for more details.
We Design, Manufacture and deliver the sun’s unlimited and cheapest energy to your daily life.OU’SUN Solar Energy Technology Co., Ltd, With more than 10 years development and technology bring in, Products are acceptable and popular in foreigner country with serious quality control, on time delivery and good export service.
Sample order: we will use wooden box for package.
Container order: We will use high quality export carton for package.
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
1- What is your Delivery Time?
7days for samples load
10days for container load
2- Can you accept OEM ?
YES
3- What is your Payment Term?
We accept T/T or L/C at sight
4-What is your MOQ?
1 sets
5-What is your Price Term?
FOB, CFR and CIF acceptable
