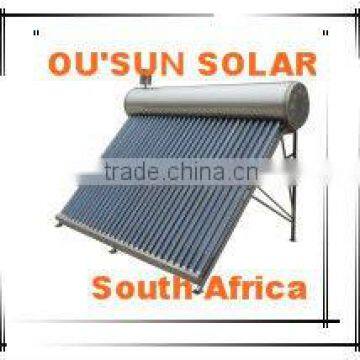

2012 Home Appliances Vacuum Tube Bathroom Geyser
- 3000 Set / Sets per Month
- shanghai/ningbo
- T/T Credit Card
You May Like
Product Details
| Type | Evacuated Tube | Pressure | Unpressurized | |
| Circulation Type | Direct / Open Loop (Active) | Heating System | Batch / ICS (Passive) | |
| Connection Type | Direct-Plug | Installation | Freestanding | |
| Housing Material | Stainless Steel | Certification | Other, RoHS | |
| Capacity | 200, 80L-400L | Place of Origin | Zhejiang, China | |
| Brand Name | OU'SUN/OEM | Model Number | OS-UP-Y87 |
Product Description
Specifications
Bathroom Geyser1.For 5 years warranty
2.For 2% free spare parts
3.Sample offer
4.OEM service
Working Principle Of Bathroom Geyser: This system uses the thermosiphon principle, Solar vacuum tube is pluged into the bottom of water tank,
The water is filled inside the solar vacuum tube, Solar vacuum tube transmit solar energy to heat energy,
The temperature of water inside solar vacuum tube is rising, As the thermosiphon principle,
the hot water rise up, and arrive in the water tank, the cold water inside the water tank go down the solar vacuum tube,
so the system runs by this circulation way until the water become very hot. It's a green product.
Specification:
1. Water tank inner steel: 0.4~0.5mm SUS304-2B (food grade stainless steel).
2. Water tank outer steel: 0.4mm colored steel or 0.4 mm SUS304-2B.
3. Stand: galvanized steel with painting, or aluminium alloy, or stainless steel.
4. Water tank heat insulation layer: 50~60 mm polyurethane foam.
5. Stand angle: 15 degree, 20 degree, 25 degree, 30 degree, 38 degree, 45 degree, 51 degree
Model | Ligthing | Vacuum Tube | Supply hot | 20/40" container | ||
diameter | length | No. | ||||
IPJG420-1500/47-12 | 1.26 | Ø47mm | 1500mm | 12 | 70 | 90/205 |
IPJG420-1500/47-18 | 1.80 | 18 | 100 | 63/147 | ||
IPJG420-1500/47-24 | 2.49 | 24 | 130 | 50/116 | ||
IPJG420-1500/47-30 | 3.15 | 30 | 160 | 38/89 | ||
IPJG470-1500/47-12 | 1.26 | Ø47mm | 1500mm | 12 | 90 | 78/176 |
IPJG470-1500/47-18 | 1.80 | 18 | 130 | 62/136 | ||
IPJG470-1500/47-24 | 2.49 | 24 | 168 | 51/108 | ||
IPJG470-1500/47-30 | 3.15 | 30 | 210 | 42/90 | ||
IPJG470-1800/58-12 | 1.68 | Ø58mm | 1800mm | 12 | 100 | 66/146 |
IPJG470-1800/58-18 | 2.57 | 18 | 150 | 48/110 | ||
IPJG470-1800/58-24 | 3.40 | 24 | 200 | 32/76 | ||
IPJG470-1800/58-30 | 4.32 | 30 | 250 | 26/63 | ||
Product Show:
