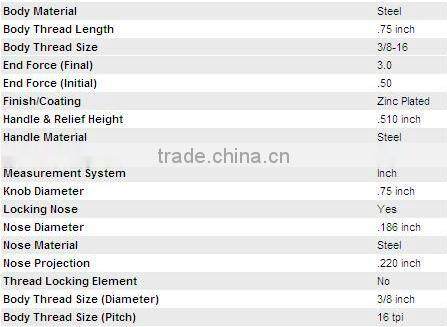

Specifications

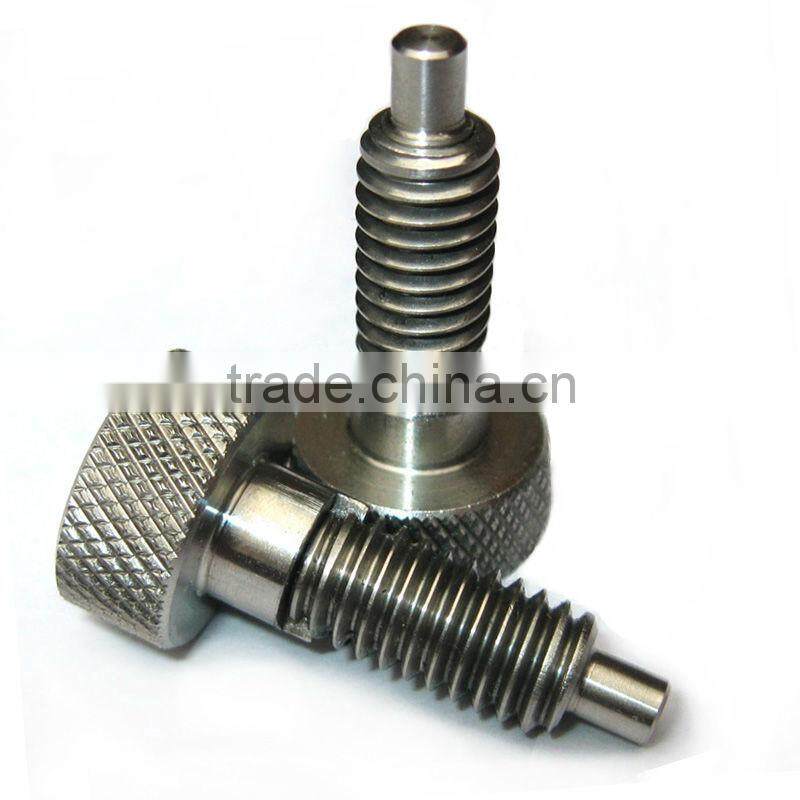

Steel Locking Knurled Knob Spring Plunger, Hand Retractable Plungers  6702-A-ST

Hand retractable spring plungers permit the plunger to be easily withdrawn and re-engaged by pulling on the handle. Hardened plunger permits greater side loading and the tapered end on the plunger allows for easy alignment. Used on original equipment and machining applications as positioners, locating pins, indexing devices, etc. Steel are zinc plated and stainless is Type 303 or equivalent. On ring handle stainless models , all parts are stainless except the ring handle which is nickel plated steel. Locking types have a rest position where the plunger can stay in the retracted position. Nylon locking element not recommended for aluminum applications. Metric dimensions are in millimeters. Metric end forces shown in Newtons.

Hygoal has a wide selection of hand retractable spring plungers that allow the plunger to easily re-engage. It is used in positioners and indexing devices. There is a wide selection of handle types, length, and thread size to make sure you get the one that works for you.

• Easy to grasp handle
• Locking plunger
• Withstands side loading
• Chamfered for easy alignment
• Plunger can be completely withdrawn into the body and locked into a retracted position
• Hand retractable plunger can be easily engaged and withdrawn
• Built-in drive wrench for rapid installation and alignment

Technicall Information:

Material:Steel or stainless steel.

Type:Standard or Locking Element

67XX-ST:Made by Zinc Plated Steel or Yellow Chromate Finish

67XX-SS:Made by stainless steel

67XX-A: Standard

67XX-B:With Locking Element

All this series include:
