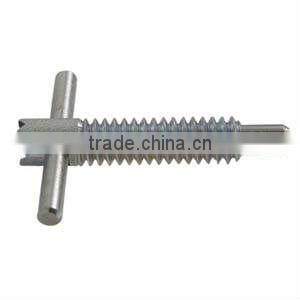

T- Hand Non-Locking Indexing plungers 5803-A-SS

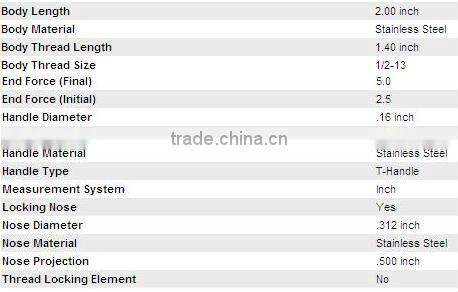

Specifications

Steel Locking T-Handle Spring Plunger , Non-Locking Indexing plungers 5803-A-SS

T-Handle Retractable , Steel Locking T-Handle Spring Plunger, Hand-retractable
without Locking Element

Hand retractable spring plungers permit the plunger to be easily withdrawn and re-engaged by pulling on the handle. Hardened plunger permits greater side loading and the tapered end on the plunger allows for easy alignment. Used on original equipment and machining applications as positioners, locating pins, indexing devices, etc. Steel are zinc plated and stainless is Type 303 or equivalent. On ring handle stainless models , all parts are stainless except the ring handle which is nickel plated steel. Locking types have a rest position where the plunger can stay in the retracted position. Nylon locking element not recommended for aluminum applications. Metric dimensions are in millimeters. Metric end forces shown in Newtons.

Hygoal has a wide selection of hand retractable spring plungers that allow the plunger to easily re-engage. It is used in positioners and indexing devices. There is a wide selection of handle types, length, and thread size to make sure you get the one that works for you.

• Easy to grasp handle
• Locking plunger
• Withstands side loading
• Chamfered for easy alignment
• Plunger can be completely withdrawn into the body and locked into a retracted position
• Steel and stainless Steel

Technicall Information:

Material: Steel with zinc plated or stainless steel.

Type: Standard or Locking Element

58XX-ST: Made by Steel with Zinc Plated

58XX-SS: Made by stainless steel

58XX-A: Standard

58XX-B:With Locking Element

All this series include:

Custom Manufacturing:

Except these standard products,We also supply customized sulotions or OEM according to your sample or drawings.

Hygoal Components manufactures a diverse range of custom plastic and metal products at extremely competitive costs - all from our facilities in Ningbo, China. Our teams have over a decade of manufacturing and supply chain management experience. From design concept, to sample creation, mass production and shipping. And we ensure your product arrives on spec, on time and on budget.

 With the technical capability to rival all manufacturing facilities. We have the knowledge, experience and manufacturing capabilities to meet all of your requirement in  customized  solutions . For details of Hygoal's manufacturing procedure, please see our custom manufacturing overview page  or contact with us.

Hygoal's Custom Manufacturing procedure:

	Submit a technical drawing or post a sample » Use our enquiry form to send us a technical drawing of your product along with a description and the estimated quantity you require. If you do not have a technical drawing in most cases we can also reverse engineer from a sample.
	48hr quote from Hygoal sales team » We leverage the very latest technology and communications tools to unite our global teams. We understand the importance of fluid and responsive interactions between all aspects of the manufacturing process, from factory and quality control to shipping and distribution. Submit a technical drawing today and we'll quote in just 48 hours.
	High quality rapid tooling » Upon quote approval and receipt of your deposit payment, we begin fabrication of your tooling. When only a small number of parts are required, tooling can represent a large proportion of initial cost, but we are confident that our tooling costs will not be beaten. When a greater quantity of parts are produced the relative cost of tooling shrinks dramatically.
	Samples to your door in 35 - 40 days » The next step sees the first samples off the production line, and delivery to your door - but not before they've passed our meticulous quality control checks. We pride ourselves on getting the job done right the first time; we've worked successfully with countless companies whom require a manufacturing partner capable of keeping to close tolerances throughout production. If adjustments do need to be made, we'll perform them quickly and efficiently.
	Mass production in 4 weeks from sample approval » With injection moulding and die casting machines from 15 tonnes up to 3000 tonnes, you can be sure that we're ready for mass production. Our engineers are fastidious in their attention to detail; its imperative for both customer and manufacturer that the goods are on spec; you won't accept second rate products - we won't produce them.
	Packaged, labelled and shipped to your door in 10 weeks from sample approval » We understand our customers require much more than just first rate products, they need them securely packed and shipped to their destination on time. Our supply chain has been in successfull operation for over a decade, we'll even manage and monitor all customs, handling fees and insurance.
