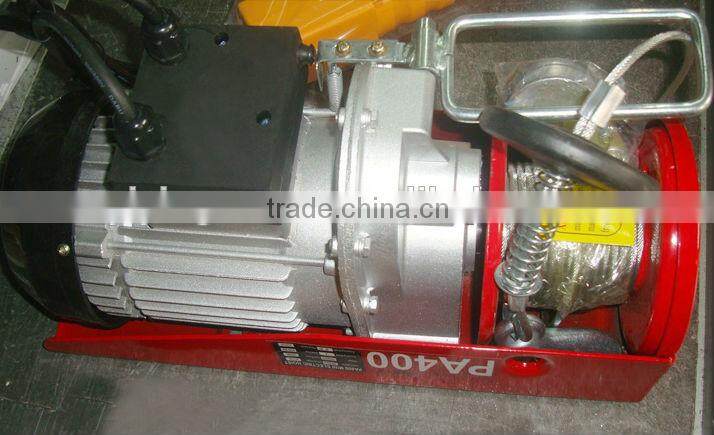

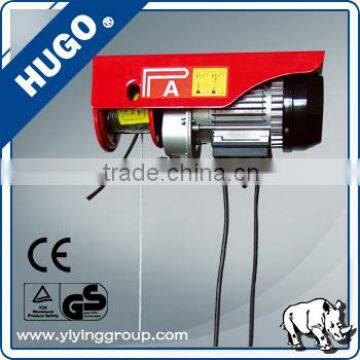

High Quality Mini 230v Electric Winch Mini Winch
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | HUGO Mini Winch | Model Number | PA Mini Winch | |
| Usage | Construction Hoist | Power Source | Electric | |
| Sling Type | Wire Rope | Maximum Lifting Weight | 1000kg | |
| Maximum Lifting Height | 12 M | Lift Speed | 10/5 m/min | |
| Certification | TUV, SGS, CE | Warranty | 1 year, 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
high quality mini 230v electric winch Mini Winch
♣1. Introduction of high quality mini 230v electric winch Mini Winch
1.Excellent control characteristics, minimal setting force required, designed for one-handed operation.
2.Drop-forged, heat-treated suspension hook and load hook mounted on swivel steel balls with safety latches.
3.Motor insulation is B, magnetic single-phase. Double hook use, single hook use
4.Caged roller bearings on drum center shaft
5.Preventing torsion wire rope for more convenient usage.
6. Punching Steel shell, lightweight and strong.
♣2. Parameters of high quality mini 230v electric winch Mini Winch
Model | PA200 | PA250 | PA400 | PA500 | PA600 | PA800 | PA1000 |
Rated Volt(V) | 230-50hz S3 20% 10 min | ||||||
Input Power (w) | 450 | 500 | 750 | 900 | 1050 | 1300 | 1600 |
Rate Lifting(kg) | 100/200 | 125/250 | 200/400 | 250/500 | 300/600 | 400/800 | 500/1000 |
Lifting height(m) | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 |
Lifting speed(m/min) | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 |
packing dimensions(cm) | 44*38*20 | 44*37*25 | 44*37*25 | 44*37*25 | 53*45*19 | 53*28*35 | 53*28*35 |
G.W/N.W | 24/22 | 25/24 | 25/33 | 36/34 | 41/38 | 38/36 | 40/38 |
quan/ctn(pcs) | 2 | 2 | 2 | 2 | 2 | 1 | 1 |
