High Quality PA Mini 100kg Electric Hoist
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Quality 220v pa small lifting hoist for Construction
-
Mini electric hoist 125kg with remote control
-
220V PA200 Mini Electric Cable Winch
-
Low Headroom Electric Hoist Electric Wire Rope Hoist PA200
-
china manufacturer Electric Wire Rope Hoist 500kg Electric Winch
-
500kg Mini Hoist Small Elevators for Homes
Product Details
Condition | New | Place of Origin | Shanghai, China | |
Brand Name | HUGO | Model Number | PA | |
Usage | Construction Hoist | Power Source | Electric | |
Sling Type | Wire Rope | Maximum Lifting Weight | 100kg | |
Maximum Lifting Height | 12 M | Lift Speed | 10/5 m/min | |
Certification | TUV, SGS, CE,ISO | Warranty | 1 year, 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

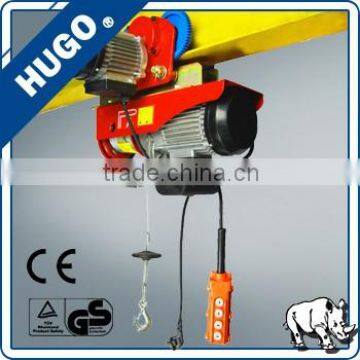

High Quality PA Mini 100kg Electric Hoist
Introduction of High Quality PA Mini 100kg Electric Hoist
1.Excellent control characteristics, minimal setting force required, designed for one-handed operation.
2.Drop-forged, heat-treated suspension hook and load hook mounted on swivel steel balls with safety latches.
3.Motor insulation is B, magnetic single-phase. Double hook use, single hook use
4.Caged roller bearings on drum center shaft
5.Preventing torsion wire rope for more convenient usage.
6. Punching Steel shell, lightweight and strong.
Parameters of High Quality PA Mini 100kg Electric Hoist
Product parameters | |||||||
Model | PA200 | PA250 | PA400 | PA500 | PA600 | PA800 | PA1000 |
Rated Volt(V) | 230-50hz S3 20% 10 min | ||||||
Input Power (w) | 450 | 500 | 750 | 900 | 1050 | 1300 | 1600 |
Rate Lifting(kg) | 100/200 | 125/250 | 200/400 | 250/500 | 300/600 | 400/800 | 500/1000 |
Lifting height(m) | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 |
Lifting speed(m/min) | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 |
packing dimensions(cm) | 44*38*20 | 44*37*25 | 44*37*25 | 44*37*25 | 53*45*19 | 53*28*35 | 53*28*35 |
G.W/N.W | 24/22 | 25/24 | 25/33 | 36/34 | 41/38 | 38/36 | 40/38 |
quan/ctn(pcs) | 2 | 2 | 2 | 2 | 2 | 1 | 1 |
Features |
1. Steel body cover. |
2. High Quality wire rope. |
3. Most tensile safety hooks without break |
4. Compact and high efficient motor with heat protection device |
5. Use Copper motor,big power and different voltage are available |
6. Push button is with 24V low voltage to guarantee safety and limit switch system |
7. Sensitive break system .Friction disk without asbestos |
8. Choose presice process of high tensile helix gear working system to keep lower noise |
9. Low headroom space to suit different lifting length. |
10. IP54 protection grade on electric hoist for prevent water and dust. |
11. Insulation class: FED 25% |
12. One year guarantee. |

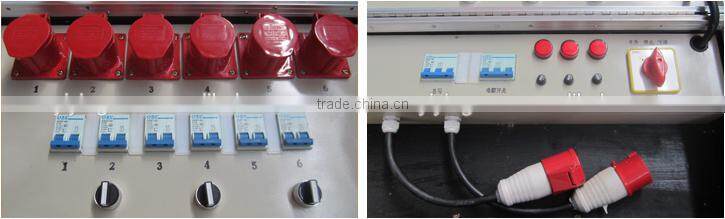

Detail picture of High Quality PA Mini 100kg Electric Hoist
High-rise buildings to lift heavy items from downstairs. Simple structure, easy installation, small size, and single-phase power as a power source.
The motor heat sink made of cast iron structure, improve the service life. Mini electric wire rope hoist speed can reach 10 m / min, initial design rope length is 12 meters.
The electric wire rope hoist we produce can be used in factories, mines, agriculture, electric power. Construction building site, dock and warehouse for installation of the machines, lifting the cargoes. Loading and unloading the trucks.
CE ISO TUV SGS certificate
1.We can make special sample according to the customer's requirement.
2. We have more than 50 professional technical team, provide best after-sales service.
3.Fast delivery time.
4. We have CE, TUV and SGS certification.
5.We are professional hoist manufacturer with more than 20 years experience since 1992.
We are professional hoist manufacturer with more than 20 years experience since 1992. If you have any demand about our product , please don't hesitate to contact us at any time!
1.Is your product customized?
Thanks for your question. Yes, because the working condition are differet, all our products are cstomizd dependingon detail requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What's the information should i provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, ift height, power source or other specials you give us will be more appreciated.
3. How many operation methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin(space capsule seat) control with joystick. You can choose any of them, just tell us!
4. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional enfineer.
5. What's the information should i provide when inquiry?
a. How much is the maximus lifting weight of the hoist?
b. Have you installed the rails? Do you need us supply the rails? How long is it?
c. Where are the working environment?
