Wholesale 100 KG Wire Rope Hoist Portable Mini Electric Winch 220V
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | HUGO | Model Number | PA | |
| Usage | Construction Hoist | Power Source | Electric | |
| Sling Type | Wire Rope | Maximum Lifting Weight | 1000kg | |
| Maximum Lifting Height | 12 M | Lift Speed | 10/5 m/min | |
| Certification | TUV, SGS, CE | Warranty | 1 year, 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

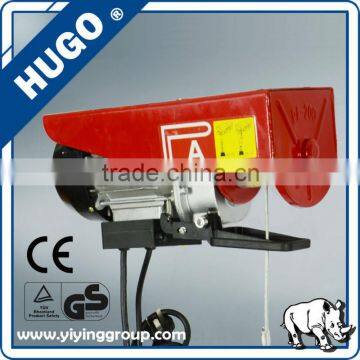

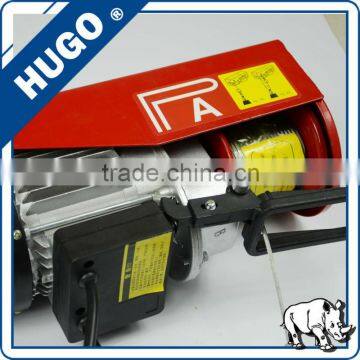

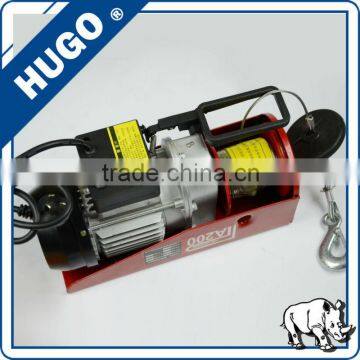

Wire Rope Portable Electric Winch
♣1. Introduction of Wire Rope Portable Electric Winch
1.Excellent control characteristics, minimal setting force required, designed for one-handed operation.
2.Drop-forged, heat-treated suspension hook and load hook mounted on swivel steel balls with safety latches.

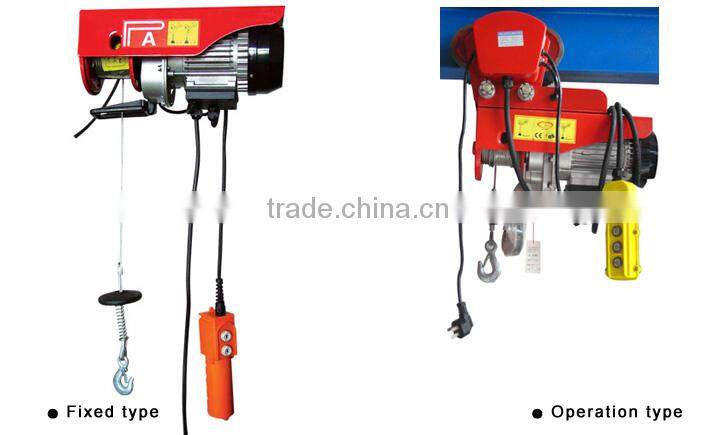

3.Motor insulation is B, magnetic single-phase. Double hook use, single hook use
4.Caged roller bearings on drum center shaft
5.Preventing torsion wire rope for more convenient usage.
6. Punching Steel shell, lightweight and strong.
♣2. Parameters of Wire Rope Portable Electric Winch
Model | PA200 | PA250 | PA400 | PA500 | PA600 | PA800 | PA1000 |
Rated Volt(V) | 230-50hz S3 20% 10 min | ||||||
Input Power (w) | 450 | 500 | 750 | 900 | 1050 | 1300 | 1600 |
Rate Lifting(kg) | 100/200 | 125/250 | 200/400 | 250/500 | 300/600 | 400/800 | 500/1000 |
Lifting height(m) | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 |
Lifting speed(m/min) | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 |
packing dimensions(cm) | 44*38*20 | 44*37*25 | 44*37*25 | 44*37*25 | 53*45*19 | 53*28*35 | 53*28*35 |
G.W/N.W | 24/22 | 25/24 | 25/33 | 36/34 | 41/38 | 38/36 | 40/38 |
quan/ctn(pcs) | 2 | 2 | 2 | 2 | 2 | 1 | 1 |


We are professional hoist manufacturer with more than 20 years experience since 1992. If you have any demand about our product , please don't hesitate to contact us at any time!
1..Is your product customized?
Thanks for your question. Yes, because the working condition are differet, all our products are cstomizd dependingon detail requirement! So if you give us more informaton about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What's the information should i provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, ift height, power source or other specials you give us will be more appreciated.
3. How many operation methods for my selection?

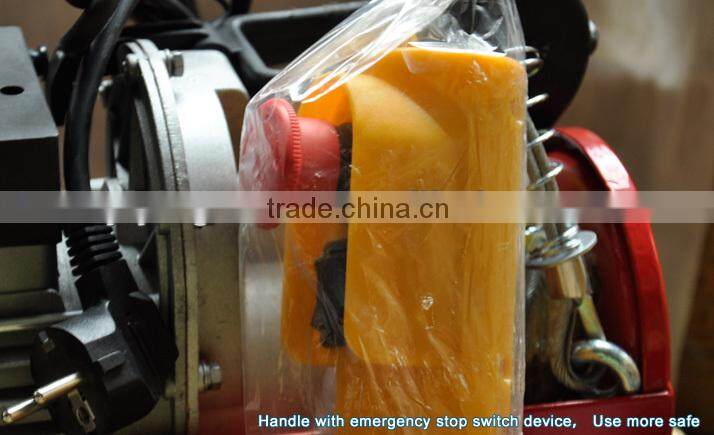

Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin(space capsule seat) control with joystick. You can choose any of them, just tell us!
4. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the special products. The detail dimension please consult our professional enfineer.
5. What's the information should i provide when inquiry?
a. How much is the maximus lifting weight of the hoist?
b. Have you installed the rails? Do you need us supply the rails? How long is it?
c. Where are the working environment?
