220V Mini Electric Hoist Wireless Remote Control
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | HUGO 220V Electric Hoist | Model Number | PA 220V Electric Hoist | |
| Usage | Construction Hoist | Power Source | Electric | |
| Sling Type | Wire Rope | Maximum Lifting Weight | 1000kg | |
| Maximum Lifting Height | 12 M | Lift Speed | 10/5 m/min | |
| Certification | TUV, SGS, CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

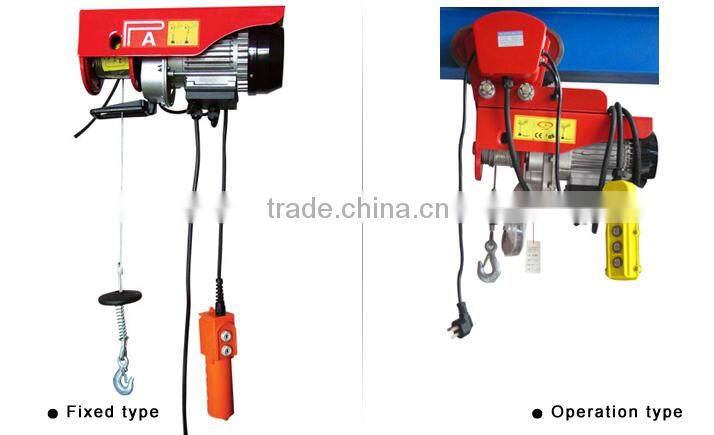

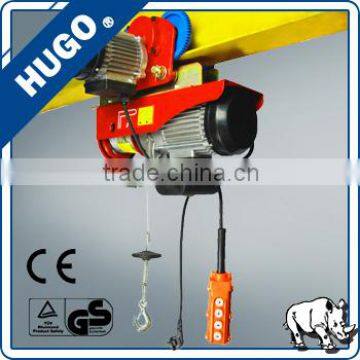

220V Mini Electric Hoist Wireless Remote Control

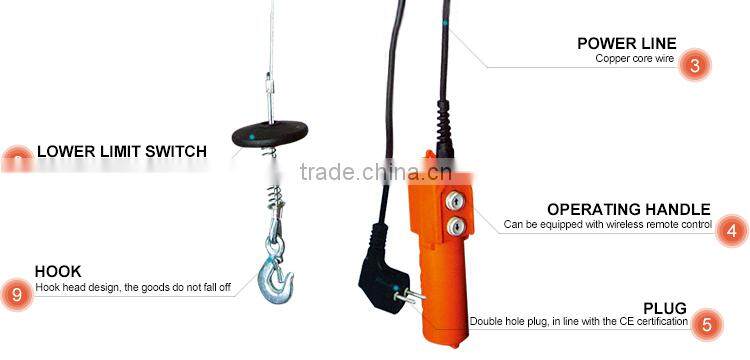

♣1. Introduction of 220V Mini Electric Hoist Wireless Remote Control
1.Excellent control characteristics, minimal setting force required, designed for one-handed operation.
2.Drop-forged, heat-treated suspension hook and load hook mounted on swivel steel balls with safety latches.

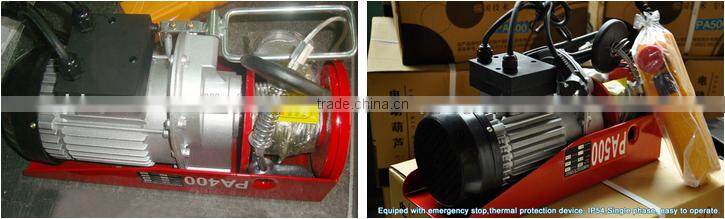

3.Motor insulation is B, magnetic single-phase. Double hook use, single hook use
4.Caged roller bearings on drum center shaft
5.Preventing torsion wire rope for more convenient usage.
6. Punching Steel shell, lightweight and strong.
♣2. Parameters of 220V Mini Electric Hoist Wireless Remote Control
Model | PA200 | PA250 | PA400 | PA500 | PA600 | PA800 | PA1000 |
Rated Volt(V) | 230-50hz S3 20% 10 min | ||||||
Input Power (w) | 450 | 500 | 750 | 900 | 1050 | 1300 | 1600 |
Rate Lifting(kg) | 100/200 | 125/250 | 200/400 | 250/500 | 300/600 | 400/800 | 500/1000 |
Lifting height(m) | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 | 12/6 |
Lifting speed(m/min) | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 | 10/5 |
packing dimensions(cm) | 44*38*20 | 44*37*25 | 44*37*25 | 44*37*25 | 53*45*19 | 53*28*35 | 53*28*35 |
G.W/N.W | 24/22 | 25/24 | 25/33 | 36/34 | 41/38 | 38/36 | 40/38 |
quan/ctn(pcs) | 2 | 2 | 2 | 2 | 2 | 1 | 1 |
![]() |
| 1,Maximum Lifting Height: 30 M;Maximum Lifting Weight: 1000kg 2,Max Lift Speed: 10/5m / min;Single Hook use and double hook use |
![]() |
| 3,the bearing with plastic package can work normally for 500 hours without leaking |
![]() |
4,It is made of thickening #470 silicon steel,the thickness can be 4.4cm 5,Limit device using the spring can be more safe and reliable with buffering |
![]() |
| 6,Double orifice round plug with CE VDE certification |
1. Many OEM producers choose our products . we may accept small first trial order.
2. We have more than 50 professional technical teams, provide best global after-sales service.
3.Fast delivery time.
4. All products have acquired the CE , ISO,PICC.SGS,TUV certificate.
5. we are one of the market leaders in crane hoist designing and manufacturing in China.
6."HUGO" is our brand ,it is well-known brand and is selling well abroad .
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized dependingon detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4.The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
5. What’s the information should I provide when inquiry?
a. What's the lifting material?
b. How much is the maximum lifting weight of the hoist?
c. Have you installed the rails? Do you need us supply the rails? How long is it?
d. Where are the working environment?
