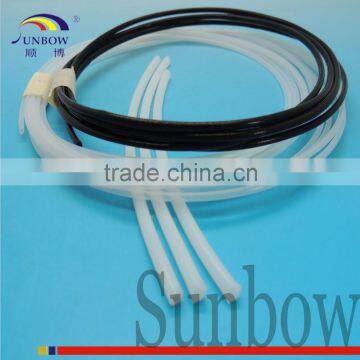

UL Approval Antiwear High Voltage Resistant Heat Resistant Clear Plastic Tube

Item

Standard

Item

Standard

Relative Density

2.14~2.20

Melting Point (⁰C)

327

Tensile Strength (MPa)

≥25

Operating Temperature (⁰C)

-80~260

Stretch Yield Strength (MPa)

≥11

Oxygen index(%)

>90

Elongation (%)

≥300

Water Absorption (%)

<0.01

Arc Resistance

>300

Linear Expansion Coefficient (×10⁵/⁰C)21~100⁰C

10

Shore Hardness (D)

59~63

breakdown strength (kv/mm)

≥45

volume resistance (Ω.cm)

1×10¹⁶

AWG

I.D.(mm)

O.D.(mm)(s)

O.D.(mm)(T)

O.D.(mm)(L)

Standard Package

(meter/roll)

30

0.30±0.10

0.80±0.10

0.70±0.10

0.64±0.10

305

28

0.38±0.10

0.88±0.10

0.78±0.10

0.72±0.10

305

26

0.46±0.10

0.96±0.10

0.86±0.10

0.80±0.10

305

24

0.56±0.10

1.16±0.10

1.06±0.10

0.90±0.10

305

23

0.66±0.10

1.26±0.10

1.16±0.10

1.00±0.10

305

22

0.71±0.10

1.31±0.10

1.21±0.10

1.05±0.10

305

21

0.81±0.10

1.41±0.10

1.31±0.10

1.15±0.10

305

20

0.86±0.10

1.66±0.10

1.46±0.10

1.20±0.10

305

19

0.96±0.20

1.76±0.20

1.56±0.20

1.30±0.20

200

18

1.07±0.20

1.87±0.20

1.67±0.20

1.41±0.20

200

17

1.19±0.20

1.99±0.20

1.79±0.20

1.53±0.20

200

16

1.34±0.20

2.14±0.20

1.94±0.20

1.68±0.20

153

15

1.50±0.20

2.30±0.20

2.10±0.20

1.84±0.20

153

14

1.68±0.20

2.48±0.20

2.28±0.20

2.08±0.20

100

13

1.93±0.20

2.73±0.20

2.53±0.20

2.33±0.20

100

12

2.16±0.25

2.96±0.25

2.76±0.25

2.56±0.25

100

11

2.41±0.25

3.21±0.25

3.01±0.25

2.81±0.25

150

10

2.69±0.25

3.49±0.25

3.29±0.25

3.09±0.25

150

9

3.00±0.25

4.00±0.25

3.80±0.25

3.40±0.25

150

8

3.38±0.25

4.38±0.25

4.18±0.25

3.78±0.25

100

7

3.76±0.25

4.76±0.25

4.56±0.25

4.16±0.25

100

6

4.22±0.25

5.22±0.25

4.92±0.25

4.80±0.25

100

5

4.72±0.25

5.72±0.25

5.42±0.25

5.32±0.25

50

4

5.28±0.30

6.28±0.30

6.02±0.30

5.88±0.25

1

3

5.94±0.30

6.94±0.30

6.74±0.30

6.54±0.25

1

2

6.68±0.30

7.68±0.30

7.48±0.30

7.28±0.25

1

1

7.46±0.30

8.46±0.30

8.26±0.30

8.06±0.25

1

0

8.38±0.30

9.38±0.30

9.18±0.30

8.98±0.25

1
