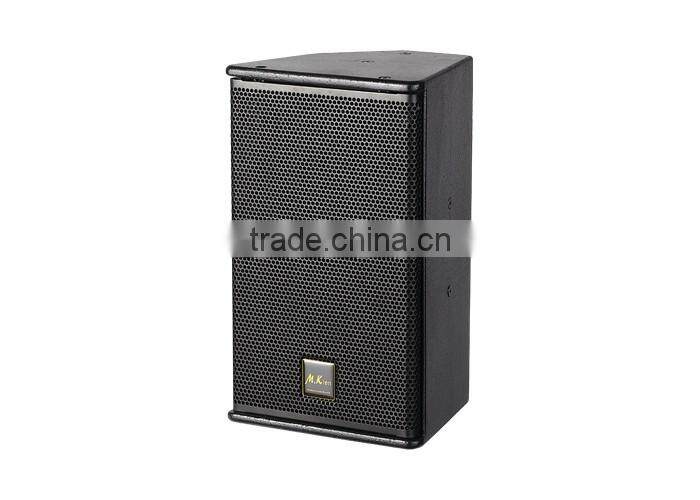

PS8, Trade Assurance, Mini 8 Inch Passive 2-way Full Range Loudspeaker, Professional Speaker
- Guangzhou
- Credit Card PayPal
You May Like
-
PS10, Trade Assurance, 10 Inch Passive 2-way Full Range Loudspeaker, Professional Speaker Quality Choice
-
PS12, Trade Assurance, 12 Inch Passive 2-way Full Range Loudspeaker, Professional Speaker
-
PS15, Trade Assurance, 15 Inch Passive 2-way Full Range Louspeaker, Professional Speaker
-
Trade Assurance, 15 Inch Bass Sub Speaker
-
Trade Assurance, 15 Inch Passive Subwoofer
-
LS1200 Trade Assurance, Single 18 Inch Outdoor Passive Subwoofer
Product Details
| Place of Origin | Guangdong, China | Brand Name | M.Klen | |
| Model Number | PS8 |
Product Description
[ Factory, EXW price, quickly shipment, trade assurance, 10 years of OEM ]:
PS-8 loudspeaker descriptions:
1. PS-8 is a versatile , 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 8''(200mm) low frequency driver and a 1''(25mm) HF compression driver mounted on a constant directivity 100° x 50° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
PS-8 loudspeaker features:
1.Versatile, passive 2-way full range system, 1x8''LF + 1x1.4''HF, 200W - 400W.
2. Full sound, powerful bass, low distortion, pure and natural tone quality, light wight, easy to install and safely.
3. Best chioce for nightclubs, bars, Disco, theaters, concert halls, Band, stage performance, wedding, home party, touring performance, etc.
4. This model is outstanding used in the slow rock bars, which displys very full voices, and the bass is powerful.
PS-8loudspeaker specifications:
| Frequency Response[a] | 75Hz-20kHz±3dB |
| Usable Range@-6dB [a] | 70 Hz-20kHz |
| Sensitivity 1W@1m[b] | 96dB/w/m |
| Nominal Peak SRL@1m[b] | 116dB to 122dB Peak (for 200 to 400W RMS Amp.) |
| HF Dispersion[c] | 50°to 100°Hor. × 55°Vert.Rotatable Horn,4 positions |
| Norminal impedance | 8 ohms |
| Rated power | 200W RMS, 400W peak |
| Components | LF: 1×8″(200mm)Shielded 8Ω driver, Ferrite HF: Voice coil HF driver size 1.4″(34mm) |
| Dimensions | (H)406 x (W)250 x (D)219mm |
| Weight | 11kg |
| Connectors | 2×NL4MP 4-pole SPEAKON |
PS-8 loudspeaker box design:
PS-8 loudspeaker driver configurations:
HF:
LF:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
