SUNBOW Thin Wall Heat Resistant Flame Retarding Kynar/PVDF Heat Shrink Tubing
USD $0.21 - $3.25
/ Meter
1000 Meters(Min.Order)
- Shenzhen
- Credit Card
You May Like
-
Low Voltage Application and PE Material 35mm Black Heat Shrink Tube for Fishing Rod
Quality Choice
-
With TS 16949 Standard UL High Quality Heat Shrink Adhesive Polyolefin PE Pipes
-
SUNBOW UL Flexible Flame Retardant Non Slip Heat Shrink Tube for Fish Tackle/Heat Shrink Tube for Fishing Rod
-
with ISO 9001:2008 standard UL ROHS REACH approval heat shrinkable sleeve for pipe welding joint
-
Flexible Flame Retardant Eco-friendly 18650 Battery Heat Shrink Tubing
-
Hot Sale Adhesive Medium Wall Heat Shrink Tube in USA
Product Details
| Place of Origin | Guangdong, China | Brand Name | SUNBOW | |
| Model Number | SB-PVDF-HST | Type | Insulation Sleeving | |
| Material | Other, PVDF, Polyvinylidene fluoride | Application | Other, High Temperature, High temperature condition | |
| Rated Voltage | 600V | Tensile Strength | >30Mpa |
Product Description

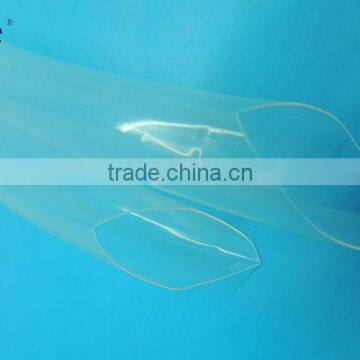

SUNBOW Thin Wall Heat Resistant Flame Retarding Kynar/PVDF Heat Shrink Tubing
1. Model
SB-PVDF-HST
2. Working Temperature
-55C ~ 175C
3. Product Description
SUNBOW Thin Wall Heat Resistant Flame Retarding Kynar/PVDF Heat Shrink Tubing is a thin wall heat shrink tube which is made of modified polyvinylidene fluoride. It has clear and flame retardant properties and can be used in high temperature condition for a long time.
4. Characteristics
1) clear and flame retardant
2) high temperature resistance
3) cutting resistance
4) wearproof, oil resistance and chemical solvent resistance
5) ROHS UL 224 VW-1 flame retardant rating
5. Specification
| Performance | Parameters | Testing Method |
| Ratio | 1.78g/cm3 | ASTM D 791 |
| Tensile Strength | ≥30MPa | ASTM D 2671 |
| Breaking Elongation(after aging) | ≥100% | 250°c*168h |
| Volume Resistivity | ≥1013Ω cm | IEC 60093 |
| Flammability | UL 224 VW-1 | UL 224 VW-1 |
| Cold Bending Resistance | No Crack | -55°c*4h |
| Heat Shock | No Crack | 250°c*4h |
| Copper Corrosion | No Corrosion | 180°c*168h |
| Copper stability | No Degradation | 180°c*168h |
6. Dimension
| Specification (before shrink) | Specification (after shrink) | Shape | Package (m/roll) | ||
| Metric ID (mm) | English ID (inch) | Metric ID (mm) | Wall Thickness (mm) | ||
| Φ1.2 | 3/64 | 0.6 | 0.25±0.05 | round | 200 |
| Φ1.6 | 1/16 | 0.8 | 0.25±0.05 | round | 200 |
| Φ2.4 | 3/32 | 1.2 | 0.25±0.05 | round | 200 |
| Φ3.2 | 1/8 | 1.6 | 0.25±0.05 | round | 100 |
| Φ4.8 | 3/16 | 2.4 | 0.25±0.05 | round | 100 |
| Φ6.4 | 1/4 | 3.2 | 0.25±0.05 | round | 100 |
| Φ9.5 | 3/8 | 4.8 | 0.25±0.05 | flat | 50 |
| Φ12.7 | 1/2 | 6.4 | 0.25±0.05 | flat | 50 |
| Φ19.1 | 3/4 | 9.5 | 0.25±0.05 | flat | 50 |
| Φ25.4 | 1 | 12.7 | 0.25±0.05 | flat | 50 |
| Φ38.1 | 1-1/2 | 19.1 | 0.25±0.05 | flat | 50 |
7. Application
SUNBOW Thin Wall Heat Resistant Flame Retarding Kynar/PVDF Heat Shrink Tubing is widely used in high temperature conditions, welding points, terminal and connection cables which can be easily eroded by industrial fuel, solvent and chemical solvents.
SUNBOW Thin Wall Heat Resistant Flame Retarding Kynar/PVDF Heat Shrink Tubing
