SUNBOW Crosslinked Polyolefin End Cap With Hot Melt Inside
- Shenzhen Port
- Credit Card
You May Like
-
SUNBOW 2:1 heat shrinkable cable end caps
-
SUNBOW 8.7/15KV Single Core Cable Set Heat Shrinkable Outdoor Terminations
-
SUNBOW 8.7/15KV 1 core 3 cores Heat Shrinkable Terminations outdoor and indoor
-
SUNBOW 0.6/1KV 2 cores 3 cores 4 cores 5 cores Heat Shrinkable Terminations and Joints
-
SUNBOW 8.7/15KV 4 Cores Cable Set Heat Shrinkable outdoor Terminations
-
SUNBOW Heat Shrinkable Cable End Cap with hot melt adhesive-lined
Product Details
| Place of Origin | Guangdong, China | Brand Name | SUNBOW | |
| Model Number | SB-WRSFM | Type | Other, End caps | |
| Material | PE | Application | High Voltage | |
| Rated Voltage | 600V | Tensile Strength | 10.4MPa |
Product Description

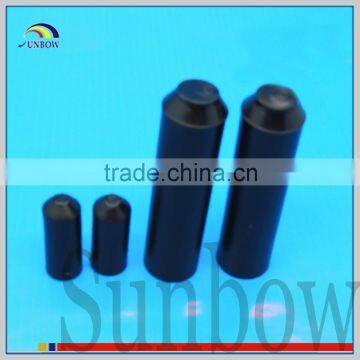

SUNBOW Crosslinked Polyolefin End Cap With Hot Melt Inside
Model Number: SB-WRSFM
Description
Heat shrink end caps are a simple yet effective method for sealing cable ends, pipe, conduit or other similar objects.
Features
2:1 shrink ratio;
Superior resistance to weathering;
Resistant to common fluids;
Standard adhesive liner provides coated hot melt adhesive resists continuous operating temperature;
Shrink temperature: start at 110℃, and fully recovered at 130℃
Dimension
Size | Size after recovery (mm) | Size as supplied (mm) | Cable sizes (mm) | |||
Inner Diameter | Wall thickness | Inner Diameter | Wall thickness | length | Outer Diameter | |
Φ 11 | ≤6.5 | 1.1±0.1 | ≥11 | 0.7±0.2 | ≥22 | Φ6-9 |
Φ 16 | ≤8.0 | 2.5±0.1 | ≥16 | 1.2±0.2 | ≥70 | Φ9-14 |
Φ 20 | ≤8.0 | 2.5±0.1 | ≥20 | 1.2±0.2 | ≥70 | Φ9-17 |
Φ 25 | ≤11 | 2.5±0.1 | ≥25 | 1.2±0.2 | ≥80 | Φ12-22 |
Φ 32 | ≤17 | 2.6±0.1 | ≥32 | 1.5±0.2 | ≥90 | Φ17-27 |
Φ 40 | ≤15 | 2.8±0.1 | ≥40 | 1.5±0.2 | ≥90 | Φ20-35 |
Φ 55 | ≤25 | 2.8±0.1 | ≥55 | 1.5±0.2 | ≥125 | Φ28-45 |
Φ 75 | ≤30 | 3.2±0.1 | ≥75 | 1.8±0.2 | ≥145 | Φ40-65 |
Φ 100 | ≤42 | 3.5±0.1 | ≥100 | 1.8±0.2 | ≥140 | Φ50-90 |
Φ 120 | ≤59 | 3.5±0.1 | ≥120 | 1.8±0.2 | ≥155 | Φ70-110 |
Φ 140 | ≤63 | 4.0±0.1 | ≥140 | 2.0±0.2 | ≥180 | Φ90-130 |
Φ 250 | ≤94 | 4.0±0.1 | ≥250 | 2.0±0.2 | ≥270 | Φ120-240 |
Technical Data
