Product Details
| Place of Origin | Guangdong, China | Brand Name | M.Klen | |
| Model Number | XLC127MKII |
Product Description
[ Factory, EXW price, quickly shipment, alibaba trade assurance, 10 years of OEM ]:

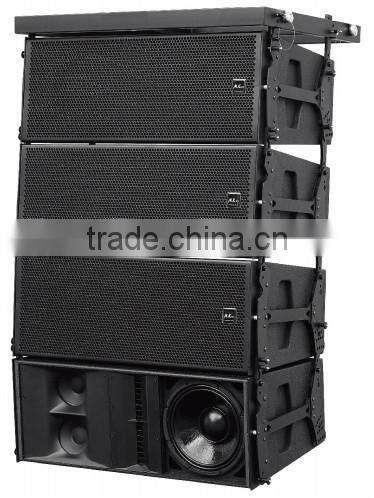

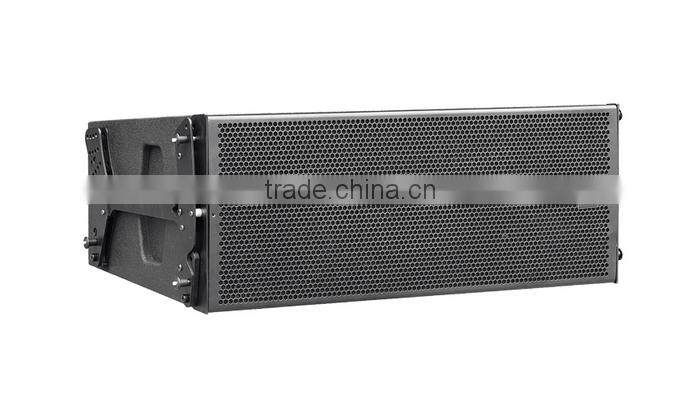

XLC127MKII line array descriptions:
1. XLC127MKII is a high-precision line array loudspeaker for long throw distance sound reinforcement, which is of great dynamic volume. Component’s phase correction application can reply spectrum signal perfectly.
2. XLC127MKII is a three-way design housing fitted with one 12''LF drivers, two 6.5'' MF drivers and two 1.7''HF drivers. Using the flying frame it can be flown in vertical column with up 16 cabinets.
3. The cylindrical wave segments of each cabinet can couple without gaps coherently. Angels between adjacent cabinets can be set in the range from 0° to 6°.
XLC127MKII line array features:
1. Three-way passive, dual 12 inch line array system, 1x12''LF + 2x6.5''MF + 2x1.7'' HF, all Neodymium drivers, 600W - 1200W power.
2. Great dynamic volume, long throw distance, reply spectrum signal perfectly, full sound, powerful bass, pure and natural tone quality.
3. Outdoor / indoor line array system, best choice for theaters, concert halls, stage performance, stadium, gymnasium, outdoor plaza, touring performance, other large scale outdoor performance, etc.
4. The hanging system adopts newest humanized design, making the whole system easy to install and safety. Besides, the cabinets is made of multilayer plywood, spraying with special environmental protection painting.
XLC127MKII line array specifications:
| Type | Compact, Three-way passive |
| Frequency Response(-10dB) | 60Hz-18kHz |
| Frequency Response(-3dB) | 65Hz-18kHz |
| Systen Input Power Rating | 600W RMS, 1200W Peak |
| Max Calculated SPL | 130dB Cont 136dB Peak |
| Horizontal Coverage | ≥95° |
| Vertical Coverage | Vertical coverage angle change according to the different quantity configuration |
| LF Power Handing | 1x350W Cont., 700W Peak |
| MF Power Handing | 2x120W Cont.,480W Peak |
| HF Power Handing | 2x45W Cont., 180W Peak |
| Sensitivity(LF/MF/HF) | 97/96/105 dB |
| LF to MF crossover Freq | 550-850 Hz |
| MF to HF crossover Freq | 1750Hz Passive or Active |
| LF Passband | 1x12" ,8ohms, Ferrite |
| MF Passband | 2x6.5" ,16 ohms, Ferrite |
| HF Passband | 2x2.5” ,16ohms, Ferrite |
| Connectors | Neutrik:2*EP8 |
| Install Dim(HxWxD) | (H)360x(W)540x(D)905 mm |
| Net Weight(Install) | 60kg |
| Range Inputs | ±1: LF |
| ±2: MF | |
| ±3: HF | |
| ±4: N.C |

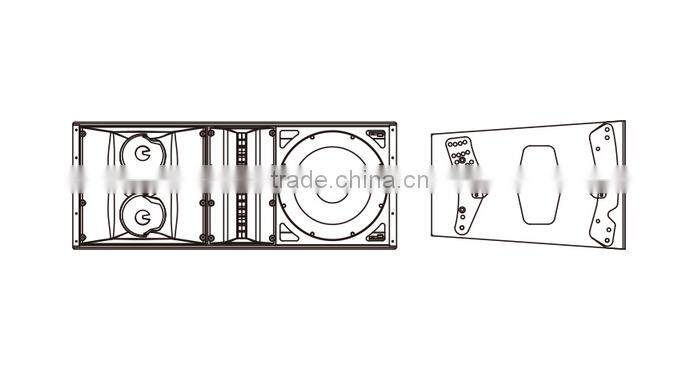

XLC127MKII line array box design:
♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we support Alibaba Trade Assurance.
♥ All the goods are inspected before shipment, so we can ensure the best quality of products .
♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.
♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
