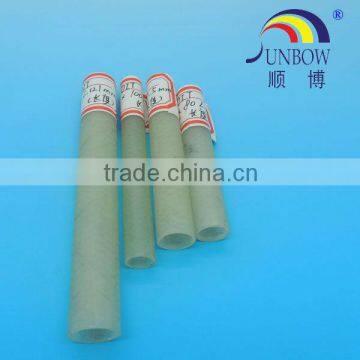

SUNBOW Composite Shaft Insulating Epoxy Resin Sleeve

SUNBOW Composite shaft insulating epoxy resin sleeve

GRADE:SB-DIT

Operating temperature:-40C—125C

STRUCTURE

SUNBOW Composite shaft insulating epoxy resin sleeve is manufactured with glassfiber and thermal plastic epoxyresin.It is braided by

glassfiber in high pressure. It adopts reasonable helical angle and suitable tensile strength.To make sure

the pressure  is equal to every strand and form a stable structure. UL and ROHS compliant.

USAGE

SUNBOW Composite shaft insulating epoxy resin sleeve is widely applied to dynamoelectric tool, home appliances, park tool and other electricity equipments.

PRODUCT   CHARACTERISTICS

Main advantages:
- compressing and assisting tool                                - Precision and automate equipment (600pcs/hr)
- Reduce cost                                               - Tube can be compressed, the other material can reuse.
- Excellent electricity design                                   - UL registered material (NFW -G-10)

Other feature:
- Flexible design and size                                      - Simple design and save time
- Lead time is only 4~6 weeks if reassemble.                      - Low power
- Reduce changing time                                       - Environmental

- No storage time limited (The storage molding material is 60-120 days)

PROPERTY

- Electrical application

- Dielectric withstand 14kV/mm

-Longitudinal strength: 144MPa
- 5000 V high voltage test for 6 seconds.

- Water absorption is less than 0.1% in 24 hours

- Density hits 1.85 g/m3

- Volume resistivity:1015

- Softening point:240C

- NFW-G-10
- Insulation grade H

- Min thickness: 0.074 mm
- Temperature: 180°C

-UL 94 Flammability is  94HB

- Standard tolerance:   - ID: ±0.0010” ±0.025mm           - length±0.010” ±0.25mm
                                        - OD±0.0005” ±0.0125mm         - Concentricity: (TIR) 0.004” 0.10mm;

1) 3~5 quick time production;

2) 2 years quality guarantee;

3) Prompt feedback;

4) 24 hours on line service.

5) Free of sample for your approval

Q : Are you a factory or trading company ?
A: We are a factory , can offer best quality product and reasonable price for you.

Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge.

Q: What is your MOQ?
A: Normally,1000 Meter per color.

Q:What is your delivery time?Can we short it in 7 days or less?
A: 3 days for sample, 3-25 days for mass production(depend quantity).

Q: What is your payment terms?
A: T/T,Western Union

Q: How can I get my order?
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number.

Q:How about your quality?
A: All of our products have obtained the UL and CSA certificates (Cert No:E333178--UZIQ2,VW-1&E333177--UZFT2/8 ,200C,600V).Try a small order, you will have your judgements!
