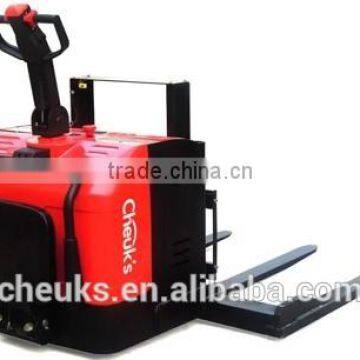

Express Straddle Leg Power Pallet Truck LPT25AC-M

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Cheuk's
Model Number	LPT25AC-M		Lift Drive / Actuation	Electric Motor

The product intro of hand pallet truck LPT25AC-M

Adjustable fork size,suits for different pallets

Good looking;integral type frame,convenient for installation and repair

Sideways battery change for rapid changing in a multi-shift operations.

Long safety tiller provides sufficient distance between the operator and the truck.

High effiency AC driving wheel is powerful,non-carbon brush, maintenance-free and with

electromagnetic brake system, enhance the safety performance.

Come with maintenance free 210Ah, ideal choice for high residual capacities loading and

long operating times.

Rigid mast ensure extremely efficient operation in even the most demanding applications.

Optional backrest ensures safety of both operator and cargos.

Walk with variable speed electric mode,handy for usage in warehouse,wharf and workshop

The specification of hand pallet truck LPT25AC-M

Characteris tics	1.1	Model		unit	LPT25AC-M
	1.2	Rated capacity		kg	2500
	1.3	Load center distance		mm	600
	1.4	Type of operation			pedestrian
Dimensions	2.1	Max lift height		mm	350
	2.2	Min fork height		mm	50
	2.3	Max fork height		mm	400
	2.4	Width outside two forks(adjustable)		mm	210-800
	2.5	Fork length		mm	1100
	2.6	Fork thickness		mm	44
	2.7	Fork width		mm	100
	2.8	Width inside two forks		mm	1500
	2.9	Overall length		mm	1904
	2.10	Overall height(with handle)		mm	1250
	2.11	Overall height(without handle)		mm	1054
	2.12	Overall width		mm	1740
	2.13	Min turning radius		mm	1700
	2.14	Min working aisle width			2800
Performance	3.1	Max travel speed	laden	km/h	3.5
	3.1	Max travel speed	unladen	km/h	4
	3.1	Max lifting speed	laden	m/s	0.056
	3.1	Max lifting speed	unladen	m/s	0.06
	3.3	Max falling speed	laden	m/s	0.057
	3.3	Max falling speed	unladen	m/s	0.059
	3.4	Gradeability	laden	%	2
	3.4	Gradeability	unladen	%	3
Wheels	4.1	Tyre(front/rear)			PU
Motor	5.1	Travel motor		kw	AC1.6
Motor	5.2	Lift motor		kw	AC 2.2
Battery	6.1	Voltage		v	24
Battery	6.2	Capacity		Ah	210
Brake	7.1	Travel brake			regenerative braking
Brake	7.2	Braker			electric-magnetic
Controller	8.1	Controller			CURTIS

Stradde leg inside width can be designed according to your requirement.
