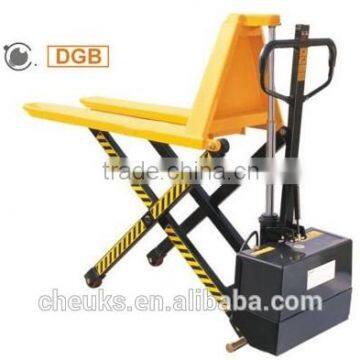

Top quality Semi-electric high lift pallet truck DGB

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Cheuk's
Model Number	DGB		Lift Drive / Actuation	Electric Motor

Product Description

The basic information of Semi-electric High Lift Pallet Truck--DGB

1.Powered by 12 voltage battery, driven by a good effective pump station
2.Used as both a work table and pallet truck
3.10-12 seconds pumping from the bottom to the top
4.Safety overload system prevents the truck from being used beyond its rated capacity
5.The handle automatically returns to its upright position when released.
6.Lifting motor power is 1.1kw
7.Conforms to EN1757-4

The basic information of Semi-electric High Lift Pallet Truck--DGB

Model	Lifting Capacity(kg)	Lowest Fork Height(mm)	Max Fork Height(mm)	Fork Length x Fork Width(mm)
DGB1500	1500	85	800	1100x520,1100x680
DGB1000	1000	85	800	1140x520,1140x680
	Dia.of front wheel(mm)	Dia.of rear wheel(mm)	Lifting time in full range(s)	Size of Fork(mm)
DGB1500	Φ75x50	Φ150x50	18	162x50
DGB1000	Φ75x50	Φ150x50	10/12	162x50
	Descending speed(mm/s)	Motor working voltage(v)	Battery voltage(v)	Electricity volume(A/hour)
DGB1500	<0.1	12	12	63
DGB1000	<0.1	12	12	63
	Working pressure of Pump Station(Mpa)	Input/output voltage of Charger(v)	Max charging current of charger(A)
DGB1500	21	AC230/115DC12	10
DGB1000	15	200-240/12	10

Q’ty/case	Wooden case size(cm)	Q’ty/20’	Q’ty/crate	Wooden case size(cm)	Q’ty/20’
1pcs	166x60x68	33pcs	4	193x60x72	108pcs
	166x76x68	26pcs		193x76x72	84pcs

Company Information

Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools and so on.

Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
