Home > Products > Pallet Truck > High Quality Semi-electric Pallet Truck--SPT15

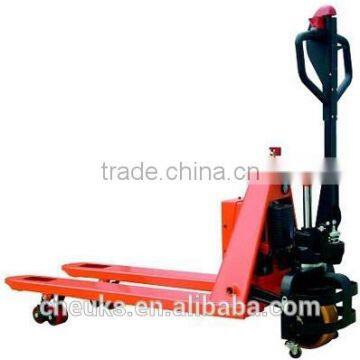

High Quality Semi-electric Pallet Truck--SPT15
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Cheuk's | |
| Model Number | SPT15 | Lift Drive / Actuation | Electric Motor |
Product Description
The product intro of hand pallet truck SPT15
SPT15 series semi-electric hydraulic pallet truck is a new product designed on the base of normal hydraulic pallet truck.
The one of the merits of this product is motor drive without manpower for pushing or drawing of the pallet truck, this matter is absolutely evidence when working under hard working condition.
There are two electrical controller options, one is CURTIS electrical controller, and the other is Chinese electrical controller.
The speed controlling is nonpolar, similar to Power walkie trucks.
The capacity is 1500kg, while other similar products only can offer capacity of 1000kg, only can offer two fixed speed option instead of nonpolar speed controlling.
Electric-magnetic brake as an option.
The specification of hand pallet truck SPT15
Characteristics | 1.2 | Model | SPT15 | ||
1.3 | Motor type | semi-electric | |||
1.4 | steering method | walking-controlled | |||
1.5 | Capacity /rated load | Q Kg | 1500 | ||
1.6 | Load center distance | C mm | 600 | ||
1.8 | Distance between fork backrest and front wheel | X mm | 938 | 1008 | |
1.9 | Wheelbase | y mm | 1275 | 1345 | |
Weights | 2.1 | Weight(including battery) | Kg | 160 | |
2.2 | Bearing: full-load front axle/rear axle | Kg | / | ||
2.3 | Bearing: without-load front axle/rear axle | Kg | / | ||
Wheels types | 3.2 | drive wheel dimension | mm | Φ220x70 | |
3.3 | front wheel dimension | mm | Φ80x70 | ||
3.4 | Caster dimension | mm | Φ150x30 | ||
3.5 | Wheels, number: drive wheel/ caster/ front wheel | piece | 1x+2/4 | ||
3.6 | Caster track width | b10mm | 330 | ||
3.7 | Front wheel track width | b11mm | 380 | 525 | |
Dimensions | 4.4 | Lift height | h3 mm | 115 | |
4.9 | Tiller height | h14 mm | 1310 | ||
4.15 | Fork height lowered | h13 mm | 85 | ||
4.19 | Overall length | l1 mm | 1645 | 1715 | |
4.20 | Length to face of forks | l2 mm | 500 | ||
4.21 | Vehicle width | b1 mm | 540 | 685 | |
4.22 | Fork dimensions | s/e/l mm | 48/160/1150 | 48/160/1220 | |
4.25 | Fork carriage width | b5 mm | 540 | 685 | |
4.32 | Clearance between fork-base and ground | m2 mm | 38 | ||
4.34 | Working aisle with 800x1200pallet (1200 along with fork) | Ast mm | 2108 | 2144 | |
4.35 | swerve radius | Wa mm | 1430 | 1500 | |
Performance | 5.1 | driving speed full load/without load | km/h | 5.0/5.2 | |
5.8 | Gradeability full load/ without load | % | 5/8 | ||
5.1 | Brake | Electric-magnetic | |||
Electric Motor | 6.1 | Drive motor rating s2 60min | kw | 0.6(AC) | |
6.2 | Lift motor rating at s3 15% | kw | 0.8 | ||
6.4 | Battery voltage/capacity | V/Ah | 2x12/38 | ||
6.5 | Battery weight +/-5% | Kg | 28 | ||
box dimension of battery (length/ width/height) | mm | 197/165/174 | |||
Other | 8.1 | Type of drive control | MOSFET Control AC | ||
8.4 | noise level at operator’s ear | dB(A) | <70 | ||
handle turning angle | . | 180 | |||
