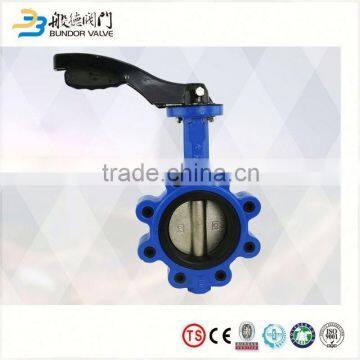

CI Cast Iron 1 inch lug type butterfly valve

	name	CI Cast Iron 1 inch lug type butterfly valve
	Size Range	2~8"(DN50~DN200)
	Pressure	PN10, PN16, Class125
	Body Materials	Cast Iron, Ductile Iron, WCB , Stainless Steel, Bronze
	Seat	NBR, EPDM, Neoprene, PTFE, Viton
	Disc Materials	Ductile Iron, WCB, CF8,CF8M, Al-bronze C958
	End Connection	Lug

Product Description

Adoptive Standards:
Valve Design: API 609,MSS SP-67
Face To Face: API 609,MSS SP-67,DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211

Features:
Single Eccentric Disc-Shaft
Anti-Blow Out Stem
Bi-Directional
Fire safe Design
Low Friction Body Seat
Zero Leakage

Product Process

Packaging and transportation

Our history

Product Certification

1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.

Our Customers

In the 21 years, we have customers in many countries around the world.
