Home > Products > Instruments & Meters > ETCR6000 AC/DC Clamp Leaker Meter AC: 45Hz-400Hz AC600V

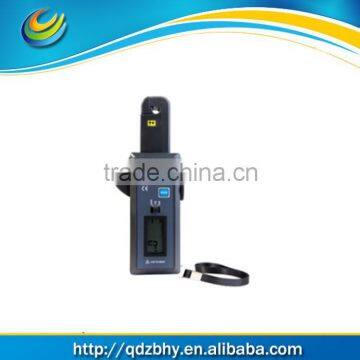

ETCR6000 AC/DC Clamp Leaker Meter AC: 45Hz-400Hz AC600V
US$ 105 - 145
/ Set
1 Set(Min. Order)
- QINGDAO
- T/T Credit Card PayPal
You May Like
-
Kyoritsu 2007A Digital Clamp Meters
-
PROVA CM-01 DC/AC Digital Clamp Meter TES High Resolution DC/AC 10mA
-
Fluke 107 Palm-sized Digital Multimeter
-
Smart Sensor AR8100 Handheld Precision Oxygen Detectors O2 Meter Tester AR-8100
-
Sanwa CD770 Digital Multimeters Standard Type 3-3/4 Digits 4000 Count
-
UNI-T UT71C Intelligent Digital Multimeters
Product Details
| Place of Origin | China | Brand Name | ETCR6000 | |
| Model Number | ETCR6000 | Operating Temperature | -10C-50C | |
| Dimensions | 168mm*65mm*34mm |
Product Description
Product Description
ETCR6000 AC/DC Clamp Leaker is specially designed for measurement of AC/DC current; by adopting up-to-date CT technology and digital integration technology. The small clamp is suitable for line densely places (electric power measurement system, the high speed rail system, car circuit overhaul, and so on), non-contact measurement, to ensure safe operation. It is a product with relatively small size, high accuracy and perfect function compared with similar leakers in the world. The leaker could be widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments. it is an essential tool for electrician safety testing.
ETCR6000 AC/DC Clamp Leaker also named: DC Leakage Current Clamp Meter, Car DC Leakage Current Clamp Meter, AC/DC Clamp Leakage Current Tester. It has those functions as data holding and data storage. It obtains one RS232 interface, communication cable and software, through which historical data inquiry is available, for data reading, exporting and printing.
Technical Specifications
| Function | Measurement of AC/DC current, leakage current |
Power Supply | 6F22,9V |
Test Mode | Clip-on CT, integral mode |
Clamp Size | Φ7mm |
Measurement Range | 0mA-60.0A AC/DC |
Resolution | 1mA AC/DC |
Accuracy | ±2%rdg±5dgt (23C±5C, below 75%rh) |
Display Mode | Four digits LCD display |
Dimension | LWH: 168mm×65mm×34mm |
LCD Dimension | 35mm×21.5mm; display domain: 32mm×15mm |
Sampling Rate | 2 times/s |
Frequency | AC: 45Hz-400Hz |
Polarity Indication | DC current auto identified and display“—” |
Test Position | Tested wire in the jaw center |
Range Shift | Automatically |
Line Voltage | AC600V |
RS232 Interface | Data stored in the memory of the meter via RS232 upload to PC |
Com-Configure | Baud rate:9600, data bit:8, stop bit:1 |
Data Memory | 99units, FULL blinks when the memory is full |
Reading Hold | DH indicating the reading is hold |
Out of Range | OL indicating the current is out of range |
Auto Power-off | 5 Minutes after power on, it will power off automatically to lower the power consumption |
Battery Voltage | Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed |
Weight | 180g (including the battery) |
Working Current | 10mA |
Consumption | 10mW |
Working Temperature and Humidity | -10C-50C,below 80%rh |
Limit Temperature Error | -10C-0C and 40C-50C, within 2%rdg |
Storage Temperature and Humidity | -10C-60C,below 70%rh |
Insulating Strength | AC2kV/rms (between the alloy of the clamp and the housing) |
Applicable safety rules | IEC1010-1, IEC1010-2-032, Pollution level 2, CAT III (600V) |
