Home > Products > Line interactive UPS > 1KVA~5KVA Line-Interactive Double CPU Control Pure Sine Wave Extensible Sensor LCD Metal UPS

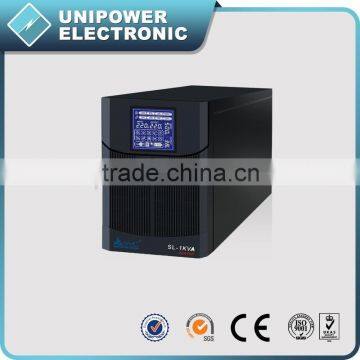

1KVA~5KVA Line-Interactive Double CPU Control Pure Sine Wave Extensible Sensor LCD Metal UPS

FOB Price

Negotiable / Unit

30 Units(Min. Order)

Port Sanshan
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SVC
Model Number	SL series	Phase	Single Phase
Protection	Short Circuit	Output Voltage	220v
Type	Line Interactive	Application	Other, Suitable for all electrical equipments

Product Description

1KVA~5KVA Line-Interactive Double CPU Control Pure Sine Wave Extensible Sensor LCD Metal UPS

Model	SL-1K/SL-1KL		SL-1.5K/SL-1.5KL		SL-2K	SL-3K	SL-4K	SL-5K
Capacity	1000VA/700W		1500VA/1050W		2000VA/1400W	3000VA/2100W	4000VA/2800W	5000VA/3500W
INPUT
Input voltage	145~275VAC
OUTPUT
Output voltage range	200~240VAC
Output frequency	50±0.5Hz(Batt. mode)
Output wave form	Sine wave (Batt. mode)
Transfer time	Typical 2-6ms,10ms max
BATTERY
Battery model	Sealed maintence-free lead-acid batteries
Battery capacity	12V/7.5Ah*2	DC 24V	12V / 9Ah*2	DC 24V	DC48V
Charging period	Depends on the batteries connected.
PHYSITAL
(kg) / Net weight (kg)	11.0	9.2	13.0	11.8	Updating
(mm) / Unit dimention (mm)	408145220				455195330
ENVIRONMENT
Environment of performance	Temperature 0℃~40℃, Humidity 20%~90%
Noise level	Less than 40dB
MANAGEMENT
LCD or LED, RJ45/11 & USB	Optional

1. Wide range of input voltage

The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.

2. Wide range of AVR(Automatic voltage regulation)

In the product’s input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.

3. Automatic self detection when UPS on(LED).

Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.

4. Silence function

In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.

5. Overload protection

In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.

6. Short circuit protection

When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.

7. The low current switch

This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.

8. Automatic charging

There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.

9. With a bypass output

Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.

2. Warranty of Unipower Products

Unipower provides warranty against defects in materials and workmanship for its Uninterruptible power supply, Power inverter/chargers including inverter12v 24v 48V, Solar charge controllers (“Product”).

3. Guides and After-service Consultancy

Unipower Power Team will offer these guides below.

A. Need an Accessory?

B. Products Repair?

C. Power Problems to Solve?

D. Power Protection Solutions, etc.?

24 Hours After-service consultancy just for you and to make your problems to solve easily.

4. OEM Service

OEM service of Unipower is strictly based on the ISO9001 ISO14001 quality assurance system. The TOP involves the effective teamwork of departments from Sales, R&D, and Engineering, purchasing, production & QA, assuring a high quality product and prompt delivery for customers. The standardization of our quality system and the quality stability has earned us the trust of our customers for 12 years.

We have 33 set of fully automatic SMT lines, 10 sets of automatic insertion equipments, ICT PCB testing equipments, ATE automatic testing center and aging workshop for all products. Monthly output of UPS series exceeds 200,000. We have been offering OEM service for over 12 years.
