2015 INSULATED ALUMINUM FLEXIBLE DUCT PIPE
- Shenzhen port Shanghai port
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Supairflow | |
| Model Number | Supair-005 | Type | HVAC Systems |
Product Description

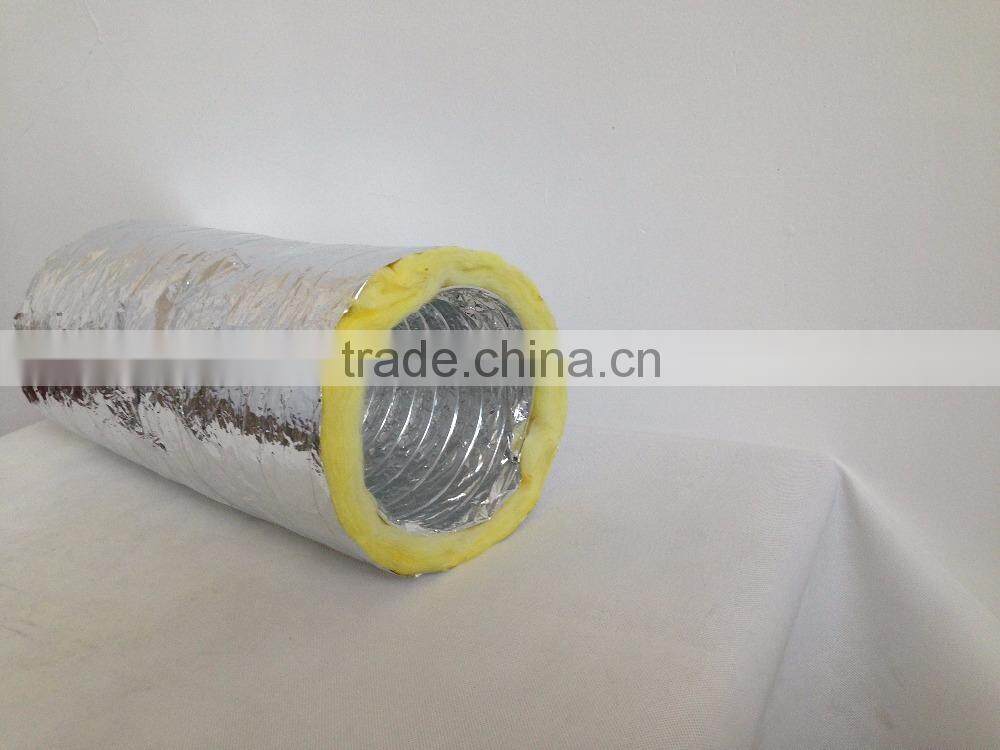

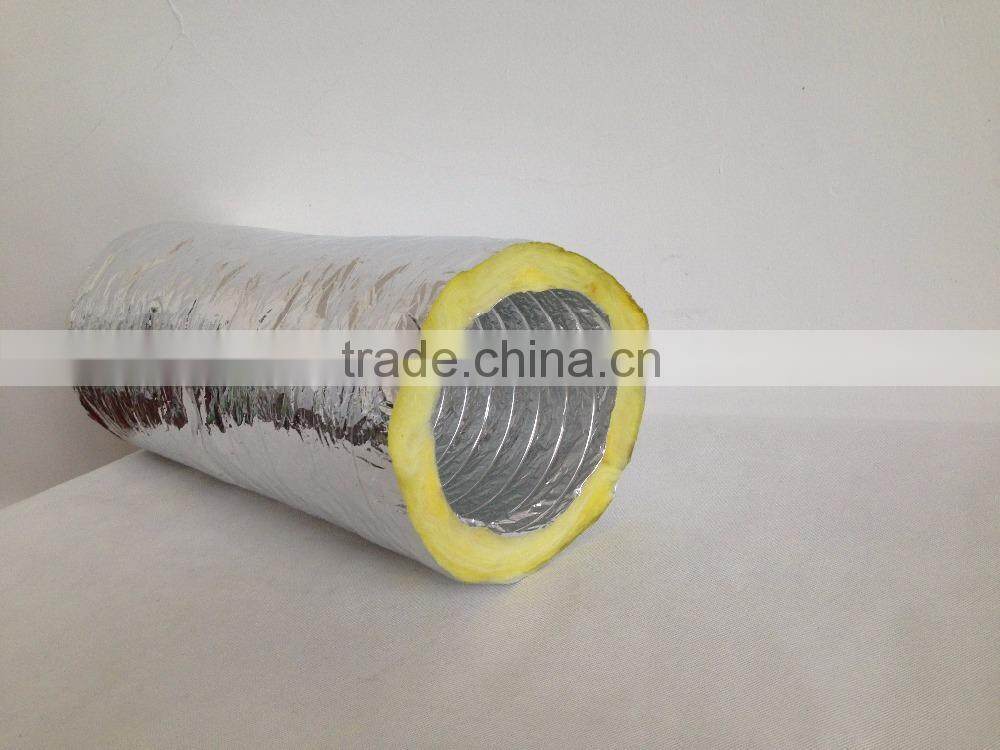

Insulated Aluminum Flexible Duct
1.Product Description:
Supairflow fire rasistant Insulated aluminum flexible air duct is manufactured from
aluminum foils (metallized Mylar),laminated incorrporating totally encapsulated
helically spring wire.which provides outstanding resistance and durability.
With glasswool (fiberglass) blanket as insulation part,use for air conditioning system.
2. Product composition of insulated aluminum flexible duct:
Type 1: Single layer aluminum foils as core duct ( Item no.: Supair-005)
Made up of 1 layer Aluminum foils/ 1 layer Polyester with steel wire (Core Duct)
Glass wool (fiberglass) blacket as insulation part
Aluminum foils sleeves (Jacket)
Type 2: Double layer aluminum foils as core duct (Item no.: Supair-006)
Made up of 1 layer aluminum foils/1 layer Polyester/1 layer aluminum foils
with steel wire (Core Duct)
Glass wool (fiberglass) blacket as insulation part
Aluminum foils sleeves (Jacket)
Glasswool (Fiberglass) material:
Thickness and Density of Glass wool (Fiberglass) | |||
16kg/m3 ,25mmT 1 lb x 1 inch(T) | 24kg/m3 ,25mmT 1.5 lb x 1 inch(T) | 32kg/m3 ,25mmT 2 lb x 1 inch(T) | 32kg/m3 ,50mmT 2 lb x 2 inch(T) |
3.Technical parameter:
Air Velocity | 30 m/s (max) |
Operating pressure | 2500 Pa (max) |
Temperature range | -30℃ to 140 ℃ |
Fire resistance | YES,Difficult to ignite |
Thickness of Aluminum foils core duct | 27 micron (Supair-005 type), 32 micron(Supair-006 type) |
4.Product Size(Diameter) and Length:
Item: Aluminum Flexible Duct ( Supair-001 & Supair-002 Type)
Size | 4” | 5” | 6” | 8” | 10” | 12” | 12.5” | 14” |
Diameter | 102mm | 127mm | 152mm | 203mm | 254mm | 305mm | 315mm | 356mm |
Length | 3m 5m 6m 10m 25feet available | |||||||
Packaging | 1 piece per carton box with plastic bag inside | |||||||
5.How to get a sample ?
Get a sample: we provide free sample service,just need the consumer bear freight cost by
Express.(we also can delivery sample via the consumer’s Express account.)
