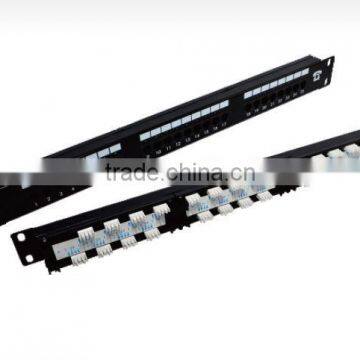

25 port amp metal voice patch panel

Specifications

25 port voice patch panel

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 118

  Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 180 Degree
Termination: 110, KRONE,DUALTypes (3 types)
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" to 50 u" Gold plating on contact area.

       As an experienced manufacturer, we specialize in the production of various kinds of wiring blocks such as 50 pair, 100 pair, 200 pair, 300 pair with & without legs and racks and also different kinds of patch panels.

We would like to establish long term business relationships with your company.

 Honesty+Professional+Best Service+Competitive Price+Qualified Product =Long-term Cooperation

Welcome to our website ! If you have any questions , pls do not hesitate to contact with me!
