UTP Cat6A Shielded Keystone Connector Jack
- Sanghai or Ningbo port
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Jooyi | |
| Model Number | JZ-4101 |
Product Description
Specifications
1.Good quality2.ISO9001:2008 certification
3.Competitive Price
4.Experienced Manufacturer

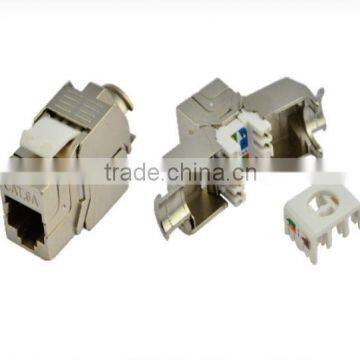

UTP Cat6A Keystone Jack
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 90 Degree
Termination: 110- Krone- Dual Type
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.
We would like to establish long term business relationships with your company.
Honesty+Professional+Best Service+Competitive Price+Qualified Product =Long-term Cooperation
Welcome to our website ! If you have any questions , pls do not hesitate to contact with me!
