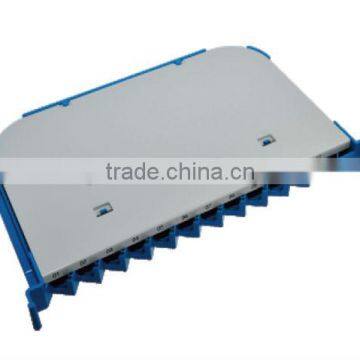

12 core removeable optical fiber splice tray

Products Description

Fiber optic splice tray is used in optical distribution frame, terminal box, and splice closures.The compact size 12 and 24 fiber compact splice cassettes designed for simple, cost effective low and mid-sized fiber splicing applications. Each cassette is supplied with splice holders that secure and protect both fusion and mechanical splices; also the top cover is included. Trays are designed to accommodate up to 24 splices and 12 adapters and can be mount in patch panels or directly into distribution cabinets.

Features and Benefits

1.12-pair fiber optic connection and distribution module

2. Designed for patching and splicing in ODF system

3. Cable storage and splice both in front

4. Longer bending radius for fiber, Easy operationof pigtails

5. Suitable for all kinds of equipment designed  according to 19" machine frame standard, and    can be easily disposed for particular needs

6. The fusing distribution board of the unit box  is double side structure, integrating the fusing     and distribution into one unity, suitable for ribbonor non-ribbon optical fiber cable

7.Every board can be clamped with 12FC or SC or LC or ST adaptors which bevel the face side with 30 degrees. That not only ensures the curvature radius of fiber, but also prevents the eyes from highlight
