2016 Best Quality Hot Sale Portable Flat Panel Pressurized Solar Water Heater

FOB Price

US$ 100 - 2,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Flat-Plate	Pressure	Other, pressurized or low pressure, Pressurized or non-preesurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Direct-Plug	Installation	Freestanding
Housing Material	Other, Galvanized Steel	Certification	CE, CSA, Other, CE, CSA, CCC,ISO900
Capacity	300, 150-300	Place of Origin	Zhejiang, China
Brand Name	EJAI/OEM	Model Number	YYJ-FPS-01

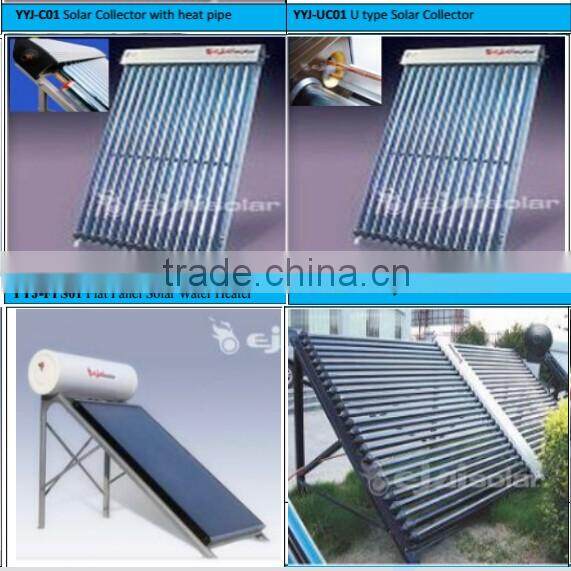

YYJ-FPS01 flat panel solar water heater

Characteristics

1. Optional for pressurized and non pressurized

2. Easy installation on the flat roof and sloping roof.

3. Perfect design combined with building.

Material

Inner tank: SUS304 Stainless steel, Thickness :0.4mm for non pressure and 1.2mm for pressurized system

Outer tank: Galvanized Steel, Thickness:0.55mm

Insulation Layer: 50mm to 60mm

Bracket: Galvanized Steel / Aluminium Alloy

Working Principle:

1.when the temperture of the heat collector reaches the set value,the controller shall start the circulation pump automatically.

2.the circulation pump makes heat-conducting liquid circulate automatically.

3.the heat-conducting liquid transters heat to water by the heat exchanger in the water tank.

4.in case the temperature of the circulation pump does not reach the set value,the circulation pump shall be shut automatically.

Parameter Table

Model	YYJ-FPS01-150L	YYJ-FPS01-300L
Dimensions of tank	Φ480 *1480	Φ480*2800
Weight	38kg	55kg
Electric Resistance Working Pressure	1,5kw,220V
In/Outlet	G 3/4"
Outside Tank Material	Galvanized Steel
Inside Tank Material	Stainless Steel SUS304 (0.4mm thickness)
Framce Material	Polyurethane (thickness 0.5mm thickness)
Flat Panel Collector Quantity	1	2
Flat Panel Collector Specification
Flat Panel Solar Collector Dimension	2000 * 1000 *80mm
Absorber	Material	Chrome Panel
	Coating	Black
	Color	Black
	Thickness	0.12mm
	Absorptivity	90% ±2%
	Emittance	5% ±2%
Pipes	Material	TP2 Copper and alumnium
Pipes	Welding	Ultrasonic
Pipe connector	25mm
Glass	Material	textured Tempered Glass with low iron Conetent
	Iron Content	≤0.01%
	Transmittance	≥92%
	Thickness	3mm
