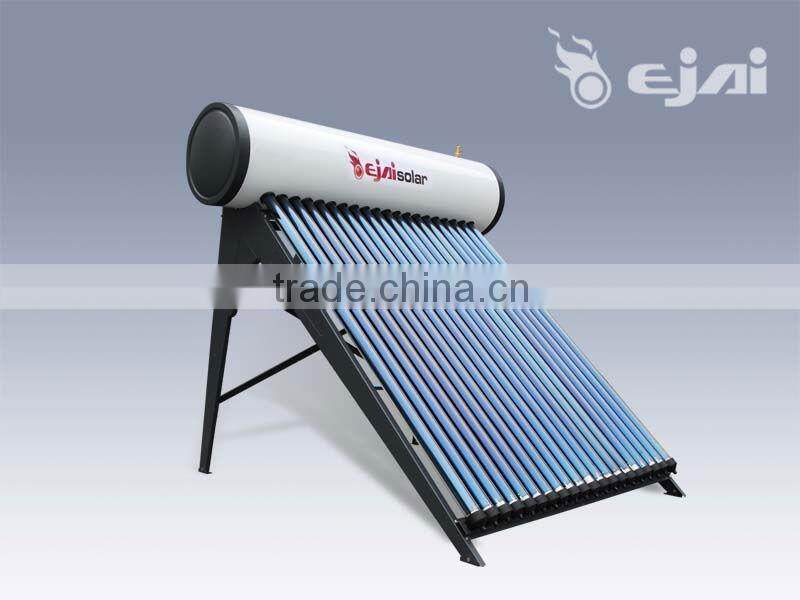

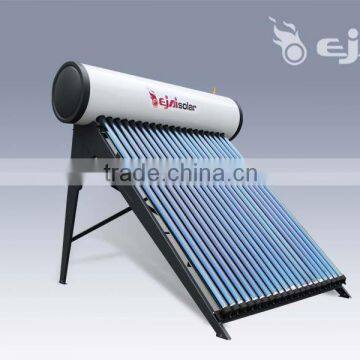

Super March Purchasing Intergrative Non-Pressure Solar Water Heater 200L With 20 Tubes

Super March Purchasing Intergrative Non-Pressure  Solar Water Heater 200L with 20 tubes

MODEl:YYJ-R01-200L

Non-Pressure vacuum tube Solar Water Heaters CHARACTERISTICS:

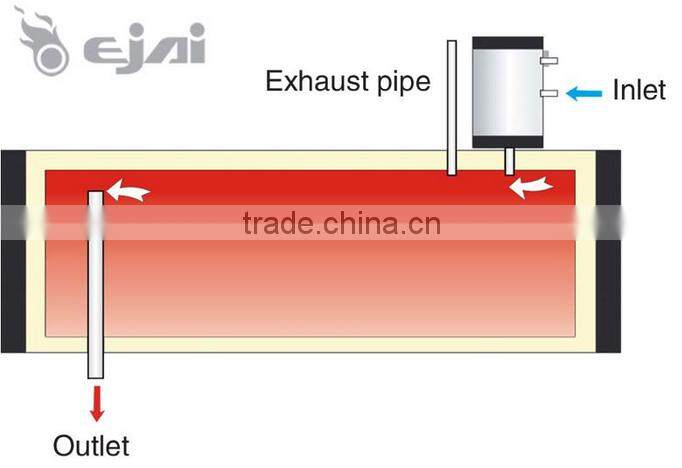

1. It takes advantage of the tap water’s pressure. More pressure more comfortable.                               2. The water is heated in short time and meeting your demand for hot water.

3. It can produce more hot water than the general types with continuous hot water coming.                     Material of Non-Pressure vacuum tube Solar Water Heaters :

 Inner tank: Imported stainless steel (SUS304/2B), 0.4mm thickness

Outer tank: PVDF Coated Galvanized steel alloy,0.5mm thickness

Bracket:Aluminum alloy, 1.8mm thickness

Heat insulation layer: Imported polyurethane (Bayer, Germany), 50mm thickness

Working temperature: 99 celsius degree

 Working pressure: 0.005Mpa (0.05 bars)

 Accessory:Optional assistant tank and electrical heater

 Warranty: 1 year for electric parts/5 Years for the full system /15 Years for the vacuum tube

 Non-Pressure vacuum tube Solar Water Heaters Remark:

1. Diameter of the tank: 360/460mm

 2. Insulation thickness: 50mm

 3. Vent connection: 1/2"

 4. Electric heater connection: 47mm

 5.Cold water inlet: 1/2"

 6. Hot water outlet:3/4"

7. Installation angel: 30/45
