Home > Products > New Products > 2016 200L Solar Water Heater With CE, ISO CCC Certificates

2016 200L Solar Water Heater With CE, ISO CCC Certificates

FOB Price

US$ 100 - 500 / Set

1 Set(Min. Order)

Port Shanghai/Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Unpressurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Direct-Plug	Installation	Freestanding
Housing Material	Other, Galvanized steel alloy	Certification	CE, CSA, Other, CE, CSA, EN12975, SRCC, CCC, Solar Keymark, ISOEN12975,
Capacity	300, 150 180 200 240 300 (L)	Place of Origin	Zhejiang, China
Brand Name	EJAI/OEM	Model Number	YYJ-R02

Product Description

Specifications

1.SUS304 Inner tank
2.CCC,CE,ISO
3.delivery:10-15days
4.OEM service

Characteristics

1. It takes advantage of the tap water’s pressure. More pressure more comfortable.

2. The water is heated in short time and meeting your demand for hot water.

3. It can produce more hot water than the general types with continuous hot water coming.

Material

Inner tank: Imported stainless steel (SUS304/2B), 0.4mm thickness

Outer tank: Galvanized steel alloy,0.4mm thickness

Bracket: Galvanized steel alloy, 1.5mm thickness

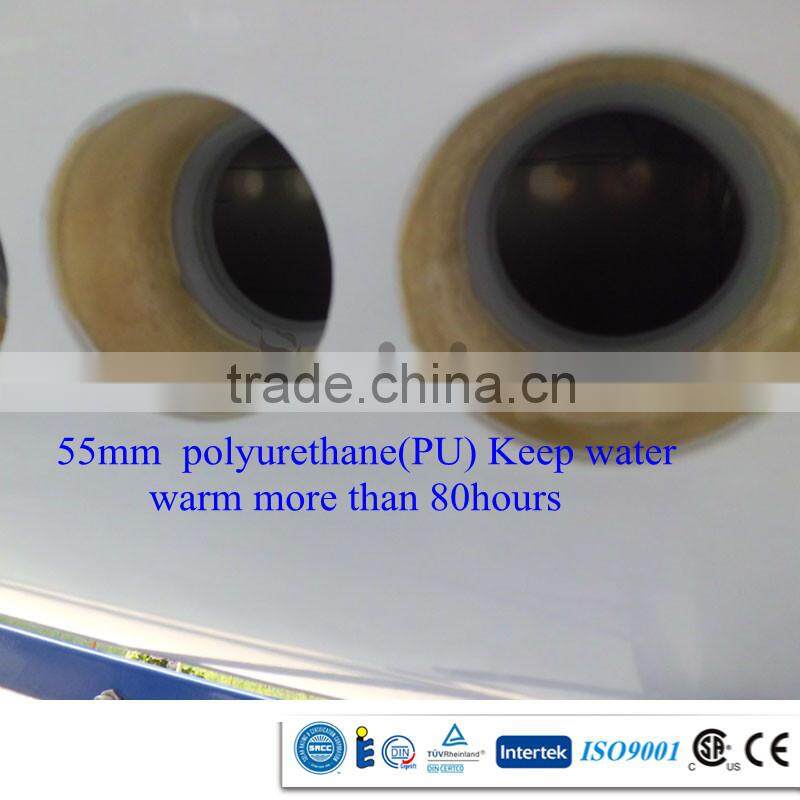

Heat insulation layer: Imported polyurethane (Bayer, Germany), 50mm thickness

Working temperature: 99 celsius degree

Working pressure: 0.005Mpa (0.05 bars)

Accessory:Optional assistant tank and electrical heater

Warranty: 1 year for electric parts/5 Years for the full system /15 Years for the vacuum tube

Different Model For You

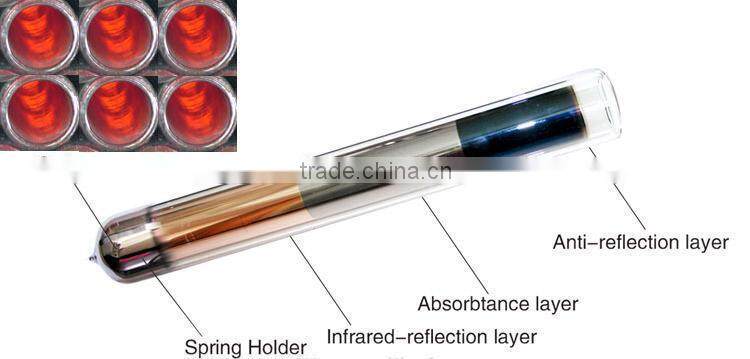

Item No.	Solar Vacuum Tube		Absorber Area(m2)	Tank Capacity	Loading Qty / sets
Item No.	pcs	size / mm	Absorber Area(m2)	Tank Capacity	20GP/40GP/40HQ
YYJ-R021-18	18	Φ47 X 1500	1.69	110L	58/129/144
YYJ-R021-20	20	Φ47 X 1500	1.88	130L	53/118/133
YYJ-R021-24	24	Φ47 X 1500	2.26	160L	43/97/108
YYJ-R021-30	30	Φ47 X 1500	2.83	200L	35/77/87
YYJ-R021-36	36	Φ47 X 1500	3.40	250L	30/68/75

YYJ-R022-15	15	Φ58 X 1800	1.97	150L	43/86/100
YYJ-R022-18	18	Φ58 X 1800	2.36	180L	39/82/96
YYJ-R022-20	20	Φ58 X 1800	2.62	200L	34/72/84
YYJ-R022-24	24	Φ58 X 1800	3.15	240L	31/65/77
YYJ-R022-30	30	Φ58 X 1800	3.95	300L	22/50/58
YYJ-R02-236	36	Φ58 X 1800	4.75	360L	16/40/43

Remark:

1. Diameter of the tank: 360/460mm

2. Insulation thickness: 50mm

2. Vent connection: 1/2"

4. Electric heater connection: 47mm

5.Cold water inlet: 1/2"

6. Hot water outlet:3/4"

7. Installation angel: 30/45
