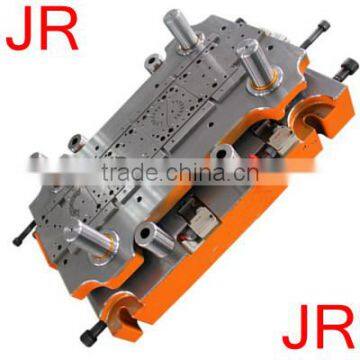

J series refrigerator motor stator rotor core progressive stamping mould /tool/die

Specifications

J series refrigerator motor stator rotor core progressive stamping mould /tool/die

Motor stator rotor detail :
Material: silicon steel ,electric steel , stainless steel
Thickness:0.1mm,0.2mm,0.35mm,0.5mm,etc
Tolerance :0.05mm
Flatness:0.05mm
Certicality:0.1mm
Type: stamping
Mould : progressive stamping mould for stator rotor , single mould for stator rotor ,
Technology: interlock ,chute , point etc
Certificate:ISO9001;2008
Manufacture: OEM
After-sales service provided: engineers available to serbicxe machinery oversea
Stamping mould/tool/die for stator rotor
Material:SKD11,DC53, SAP-9,D2 ETC
Life span: more than 100000000
Type: progressive stamping mould/single mould
Punch and bottom : silicon steel

Our services :

Coating insulation for the stator and rotor

Equipment :electrostatic coating machine

Tech : electrostatic coating , thermoelectric coating

Surface treatment : power sprawing , coating , grooves

Manufacture : OEM

Capacity : 8 sets machine

Insulation material : according to customer need

Winding the stator rotor

Material : copper wire

Machine : winding machine

Casting aluminum

Manufacture : according to customer need

Motor stator rotor lamination stamping die technology

1. lamination interlocking
2. lamination skewing
3. lamination shoulder hole
4. 180 degree rotation for lamination
5. straight-type lamination
6. segment-type lamination

the motor stator rotor core progressive stamping die

product series of progressive die : various lamination and cores for motors which involve air-condition compressor motor , refrigerator motor, plastic sealing motor , automobile motor , generator motor ,stepping and servo motor , universal motor , shaded motor , DC motor ,

the detail of motor core mould

tolerance: 0.05mm

speed: 300 to 400 strokes per minute

life : 100 million

Shenzhen jiarun precision stamping mould company is a professional design and manufacture of motor core and multi-bit high speed stamping progressive die technology-based enterprises, located in Shenzhen ,Guangdong province China.

The company has a complete and scientific quality management system companies rely on advanced production equipment, strong technical force, good professional ethics, advanced processing technology, all the molds by experienced designers to develop design, first-class assembly technician is responsible for assembly. Can fully guarantee the mold precision, long life, long stability for our customers to maximize profits, the company's integrity, strength and product quality is recognized by the industry. The company has a high precision mold processing equipment: Sodick EDM Wire cutting machine, Charmilles EDM Wire cutting machine tools, large machining centers in Li Yang in Taiwan, Japan Okamoto precision surface grinder, Japan Okamoto precision molding grinders and so on. The company specializes in manufacturing various types of motor core, automotive electronics, meter, transformer core, the core high-speed electrical tools leveling progressive die, multi-station molding, large motor punching composite modulus. The company will always adhere to the "credibility and development, quality of survival" business philosophy, constantly striving for excellence quality to meet customer demand for the highest. Welcome friends to visit, guidance and business negotiation, JR staff sincerely look forward to working with you to create a win-win situation!
