hard alloy progressive stamping tool/die/mould for automotive fan motor stator and rotor

Specifications

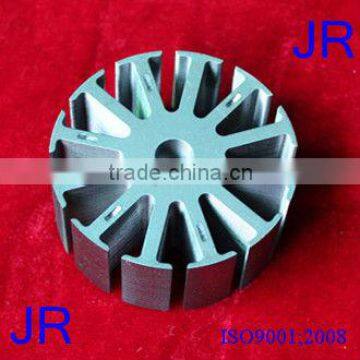

auto stamping tool for automotive fan motor stator and rotor

Shenzhen jiarun precision stampingf mould was founded in 1997, which is specializing in the producing of motor core, stator and rotor , motor core , motor bracket , motor deep drawing cover , stamping die for motor etc . It is a leading Enterprise of Motor stator and rotor . JR ranks the first in the talents team, capability and facilities for R & D and production of motor die. The company covers a land area of 3600 square meter,The investment in the fixed assets more than 10 million.

Through hard working and uninterrupted technical innovation for more than 14 years, Shenzhen jiarun precision stamping mould becomes the most advanced and professional and the largest R & D center and manufacture base of motor core lamination precision punching die in China. JR has received the ISO system qualification. Its annual capacity is 600 sets of stator and rotator core compound die. It is an ideal substitute for the sophisticated die made by developed countries such as Japan and American and European countries. Hongda occupies the first position in domestic sales of Chinese motor core die market for a long time and around 1,00 customers in the world are using the motor stator and rotor from JR

METAL STAMPING PROCESS:

From concept to completed metal part

From a small metal part or a deep drawn metal part to a complex welded assembly, Shenzhen jiarun precision stamping Tool & Die has the expertise and the metal stamping facilities to produce your metal component project, with a diversified capability for size, material or complexity.

The JR stamping Tool & Die Way:

We use lean manufacturing principles to govern our entire metal stamping system, helping to minimize waste, manage flow and deliver quality products on time and on budget. Our web-based software system creates a paperless process that enables us to set up, schedule inspect and control other data throughout the component-manufacturing project. We also use many of the standard design software programs, ensuring that we can translate and deliver your concept and vision into a completed metal part.

Customer Project Review:

The metal stamping process starts with our design review meeting and continues with:

Discussion of customer and internal quality requirements

Development of a process flow for governing the project

Failure modes and effects analysis (FMEA)

Simulation and development of part prototype if necessary to ensure a robust design and manufacturability

Tool & Die Services:

From there, we start the process of complete tooling for the metal part and review of the tooling through short- and long-term capability studies. If necessary, we will re-tool or make engineering changes to your current design.

Metal Stamping Production:

Once your metal part is ready for production, we move on to one of our 30 metal presses, ranging from 20 ton to 220 tons. These presses are equipped with variable speed and accessory items such as feeds, reels, nitrogen cushion systems and electronic detection systems and link motion technology. We can produce metal parts from blank parts to formed and drawn metal parts, small parts, large parts, thin metal parts (0.1mm) or thick gauge metal parts (5 mm). We also have resistance welding using conventional and dedicated welding equipment per part requirements. In addition, our secondary equipment can drill, tap and sub-assemble.

Finishing Touches:

For customers who require more detail in finished metal parts or assemblies, we also have a diversified set of welding, part assembly and finishing capabilities for completing your metal component project.
