Automatic SUS 304 soda filling machine three in one unit
- 5 Set / Sets per Month
- Shanghai/ningbo
- T/T
You May Like
-
Automatic SUS 304 soda maker machine three in one monoblock
-
Automatic soda filling machine/cola production line
-
DCGF 24-24-8 automatic soda water bottle filling machine
-
Full automatic carbonated drink filling machine
-
Automatic 3000bph carbonated drink packing machine
-
Automatic filling machine for carbonated drink
Product Details
| Condition | New | Application | Beverage | |
| Packaging Type | Bottles, Cans | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V 50Hz or by order | Power | 5-18kw/by order | |
| Place of Origin | Jiangsu, China | Brand Name | XINMAO | |
| Model Number | DCGF Series | Dimension(L*W*H) | up to the capacity | |
| Weight | 3800-15000kg | Certification | CE & ISO 9001;2000 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

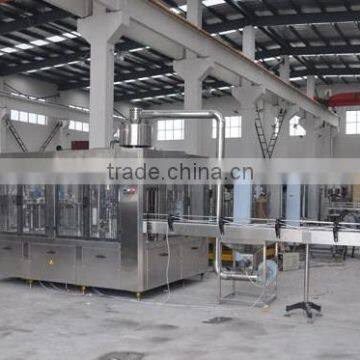

Automatic SUS 304 soda filling machine,washing, filling and capping three in one monoblock
Product introduction:
This machine has washer,filler,capper three functions in one body, automatic in total process, it is suitable for PET bottled cola ,sprint etc. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part’s operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
Main features of the equipments:
1)Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.
2)Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.
3)The cylinder drives the valve, correct and reliable, high speed flow rate, high precision filling valve, CIP loop.
4)Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.
5)Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical data | ||||
Model | DCGF18186 | DCGF24248 | DCGF32328 | |
Number of washing, filling, capping | 18-18-6 | 24-24-8 | 32-32-8 | |
Capacity;bottle(600ml)/hour | 3000-5000 | 6000-7000 | 8000-10000 | |
Suitable bottle size (mm) | φ=50-108 H=170-340 330ml-2.25L | |||
Pressure (kg/cm2) | 2~3 | |||
Power (kw) | 5kw | 6kw | 8kw | |
Overall size (mm)(LxWxH) | 2350*1700*2300 | 3200*1900*2300 | 4300*2000*2300 | |
Weight(kg) | 3800 | 5000 | 6000 | |
Technical data | ||||
Model | DCGF404010 | DCGF505012 | DCGF606015 | |
Number of washing, filling, capping | 40-40-10 | 50-50-12 | 60-60-15 | |
Capacity;bottle(600ml)/hour | 10000-12000 | 12000-15000 | 15000-18000 | |
Suitable bottle size (mm) | φ=50-108 H=170-340 330ml-2.25L | |||
Pressure (kg/cm2) | 2~3 | |||
Power (kw) | 12kw | 15kw | 18kw | |
Overall size (mm)(LxWxH) | 4500*3500*2300 | 5000*4200*2300 | 6000*500083400 | |
Weight(kg) | 6800 | 7600 | 9800 | |
Washing part
Filling part
Capping part
Our workshop
Woring workshop
Packing
Our sparts parts supplier
Our certification
Our customer factory
Why us
Expericed in beverage filling machine more than 15 years
Free technical support&consultation
Professional & fast after service team
Delivery in time
Skype: wendyzhang2009
QQ/ We chat:1479924232
Tel: 0086-189-1360-3625
Any question about this machine, please contact us. We are glad to be at your service! Welcome to our factory to check the machine!
