Home > Products > Conduit Body > Die Cast Aluminum T Sharped bodies with Cover and Gasket

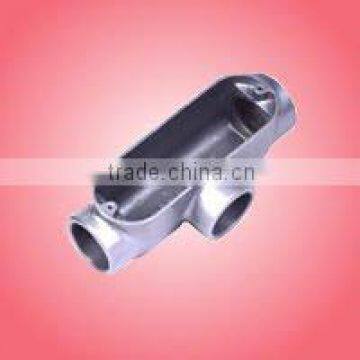

Die Cast Aluminum T Sharped bodies with Cover and Gasket
- shanghai ningbo
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | MEIDa | |
| Model Number | T | Type | Combustion-Proof | |
| Material | Other, Die Cast Aluminum |
Product Description
Model No. | Trade SiZE | length | width | height | Color |
|
Notes | ||||||
T-50 | 1/2" | 4-5/16" | 1-5/16" | 2-3/32" | GRAY | With Aluminum Cover |
T-75 | 3/4" | 5-3/32" | 1-9/16" | 2-3/8" | GRAY |
|
T-100 | 1" | 5-29/32" | 1-13/16" | 2-3/4" | GRAY |
|
T-125 | 1-1/4" | 7-13/16" | 2-1/2" | 3-1/2" | GRAY |
|
T-150 | 1-1/2" | 7-13/16" | 2-1/2" | 3-1/2" | GRAY |
|
T-200 | 2" | 10-1/16" | 3-3/16" | 4-1/2" | GRAY |
|
T-250 | 2-1/2" | 12-13/16" | 4-1/2" | 5-5/16" | GRAY |
|
T-300 | 3" | 12-13/16" | 4-1/2" | 5-29/32" | GRAY |
|
T-350 | 3-1/2" | 15-5/8" | 5-9/16" | 7-5/16" | GRAY |
|
T-400 | 4" | 15-5/8" | 5-9/16" | 7-5/16" | GRAY |
|
Specifications
1.Die-casting alloy
2:surface powder coating
3:set screw both side
4:from washing and oven dry,to painting are under strict control
5.with leather packing collar between the cover and body to keep mositure
Application:
1.For threaded rigid conduit or EMT.
2.Provides access to the interior of the raceway for wire pulling splicing(with a limitions as specified in the National Electrical Code),and maintance,for covers and gasket.
3.Trade size:1/2"-4"
4.other type LL(Left) LB(Bent) LR(Right) C (stright) are availble
