409L 430 Precision Capillary Stainless Steel Pipe/Tube

Product Description

Material	201 304 304L 316 316L 347 347H 321 321H 310 310S 316Ti 410 430 904 904L 2205 2507 2520	Type	Seamless/Welded
Standard	ASTM,AISI,DIN,EN,JIS,GB, GOST	Surface Treatment	Bright,Polishing, Mill finish,2B, 8K
Technique	Hot Rolled/Cold Rolled/Cold drawn Annealing Pickling	Origin	China
DN	6mm-2500mm (3/8"-100")	Wall Thickness	1mm-150mm(SCH10-XXS)
Length	5.8m /6m /12m  Customizd	Certificate	ISO, CE
HS Code	7304419000	End	PE/BE
Load port	Tianjin or Qingdao	Package	Wooden boxes or woven bags
Production Capacity	10000tons/Year	Application	Construction/Manufacturing

MATERIAL DESCRIPTION

About 304/304L Stainless Steel

AISI 304 stainless steel (UNS S30400) is the most widely used stainless steel, containing 18-20% Cr and 8-10.5% Ni, and also known as 18-8 stainless steel. SS 304 is non-magnetic under annealing conditions, but after cold working (such as stamping, stretching, bending, rolling), part of the austenite structure may be converted into martensite and therefore weakly magnetic. Type 304 has good resistance to atmospheric corrosion and oxidation. The high nickel-chromium alloy content gives it excellent corrosion resistance and is widely used in the food industry as a standard food grade stainless steel.

There are several variants of 304 grade stainless steel, such as ultra-low-carbon version type 304L, nitrogen-containing version 304N, 304H with improved creep performance, and type 302 with higher carbon content. The second most widely used 316 grade stainless steel, compared with AISI 304, reduced chromium content, increased nickel content, and added 2-3% molybdenum. The addition of molybdenum can enhance the resistance to pitting and crevice corrosion caused by chloride. Therefore, 316 SS is widely used in marine applications.
Composition Composition of 304 Stainless Steel

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
304	min. max.	- 0.08	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 10.5	- 0.10
304L	min. max.	- 0.030	- 2.0	- 0.75	- 0.045	- 0.030	18.0 20.0	-	8.0 12.0	- 0.10
304H	min. max.	0.04 0.10	- 2.0	- 0.75	-0.045	- 0.030	18.0 20.0	-	8.0 10.5	-



Mechanical Properties of 304 Stainless Steel

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50 mm) min	Hardness
Rockwell B (HR B) max	Brinell (HB) max
304	515	205	40	92	201
304L	485	170	40	92	201
304H	515	205	40	92	201

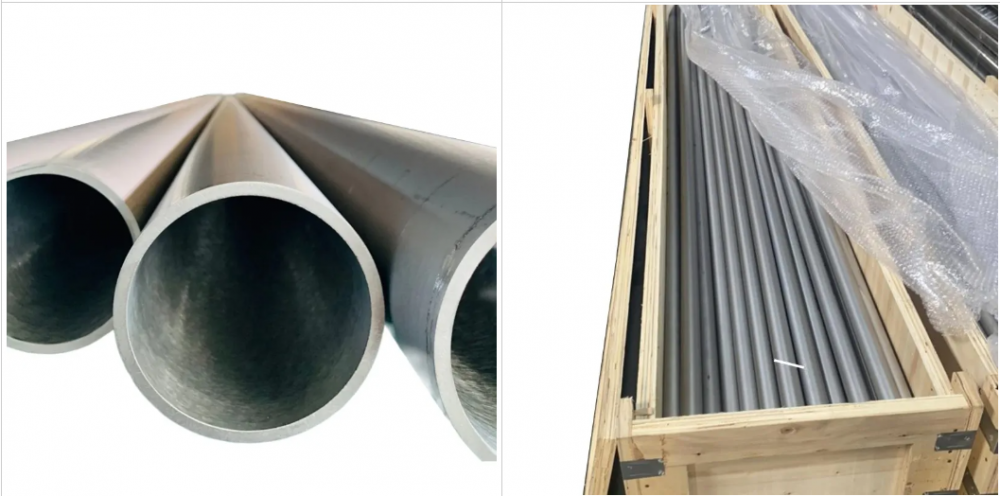

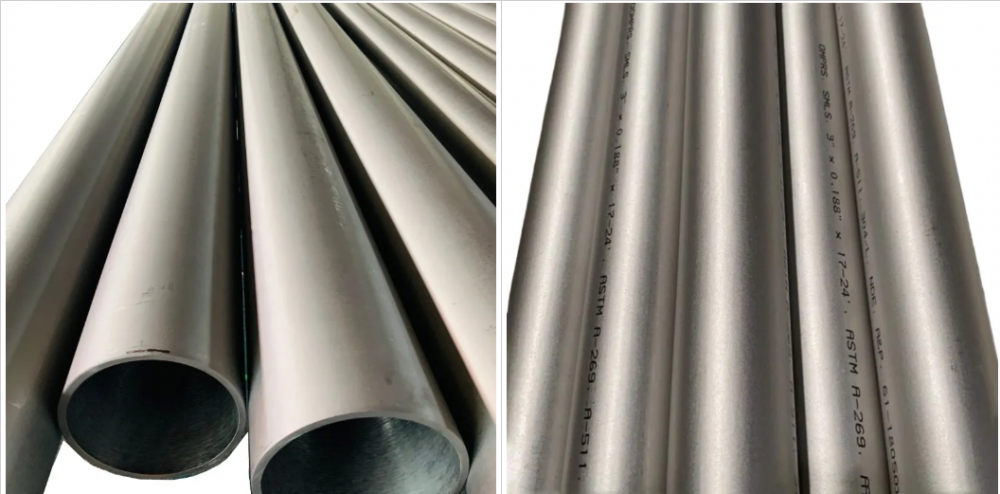

PRODUCTS PICTURES





Zhongzheng Stainless Steel Co., Ltd. was established in 2018 with aregistered capital of 20 million yuan. lt is a manufacturing company thatintegrates the production of special materials, manufacturing andprocessing, sales, and technology development. The company covers anarea of 2,000 square meters and has 200 employees. it has built worldclass stainless steel seamless pipe (hot piercing, cold drawing, cold rollingproduction lines, precision steel pipe production lines, and large, mediumand small-sized welded pipe production lines. The company has beencommitted to providing high performance, high precision, hightemperature-resistant, high pressure-resistant, and corrosion-resistantsolutions and technical services for industrial equipment pipeline systems.The company specializes in producing a series of steel pipes, pipe fittingsflanges, etc., such as high-temperature (nickel-based) alloys, austeniticduplex steel, urea grade stainless steel, super stainless steel, etc. Thecompany is equipped with an annual production capacity of 5,000 tons ofstainless steel seamless pipe production line, 7,000 tons of welded pipeproduction line, and 500 tons of pipe fittings production line, etc. lt canoroduce stainless steel seamless pipes with diameters ranging from ?Φ?6 to?Φ?762 and wall thicknesses ranging from 0.5 to 70 mm, stainless steelwelded pipes with diameters ranging from ?Φ?15 to ?Φ?2200 and wallthicknesses ranging from 0.5 to 80 mm, pipe fittings, and various stainlesssteel ingots, round steel, rough pipes, etc., according to customerrequirements and in accordance with standards such as GB, ASTM, etc.WORKSHOP
