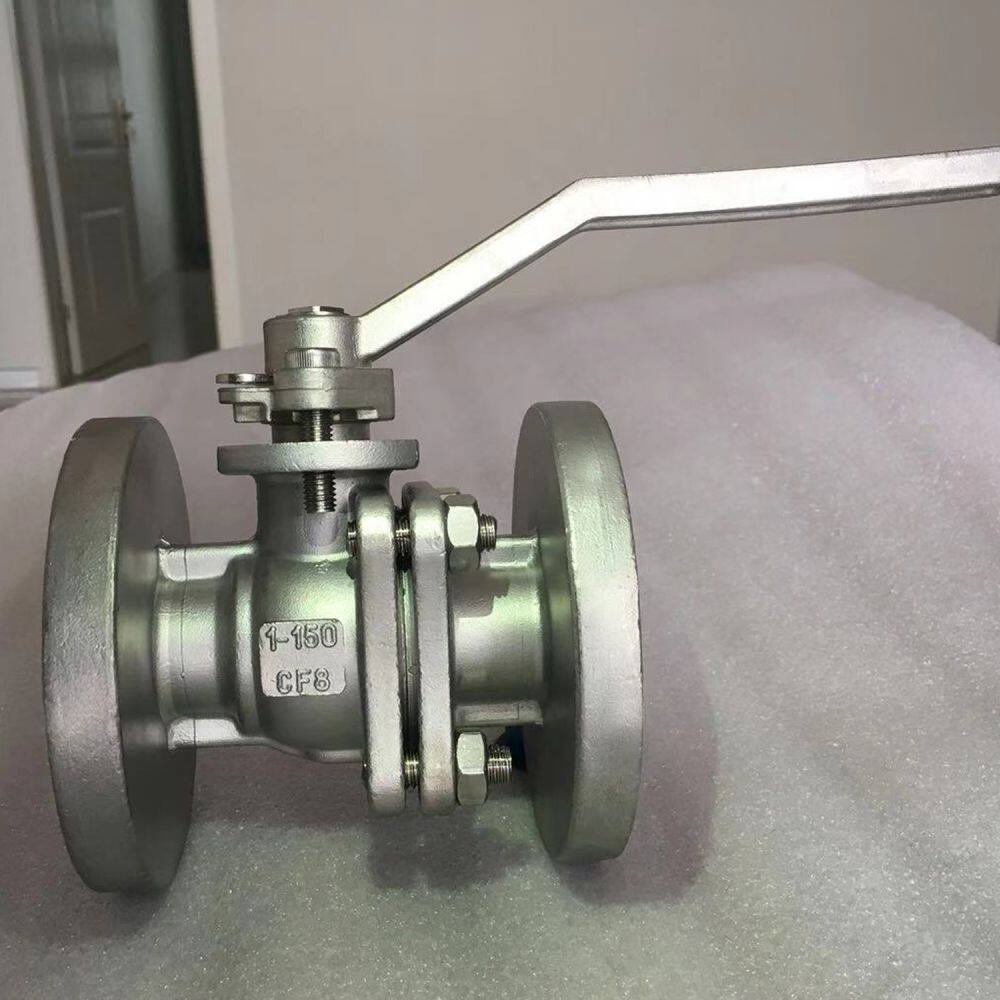

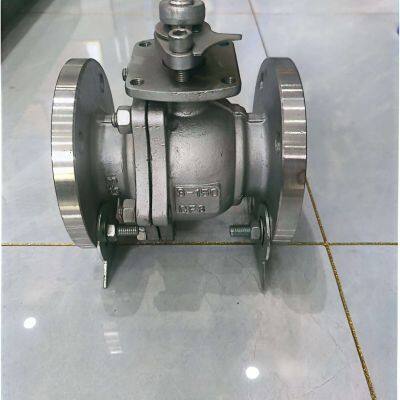

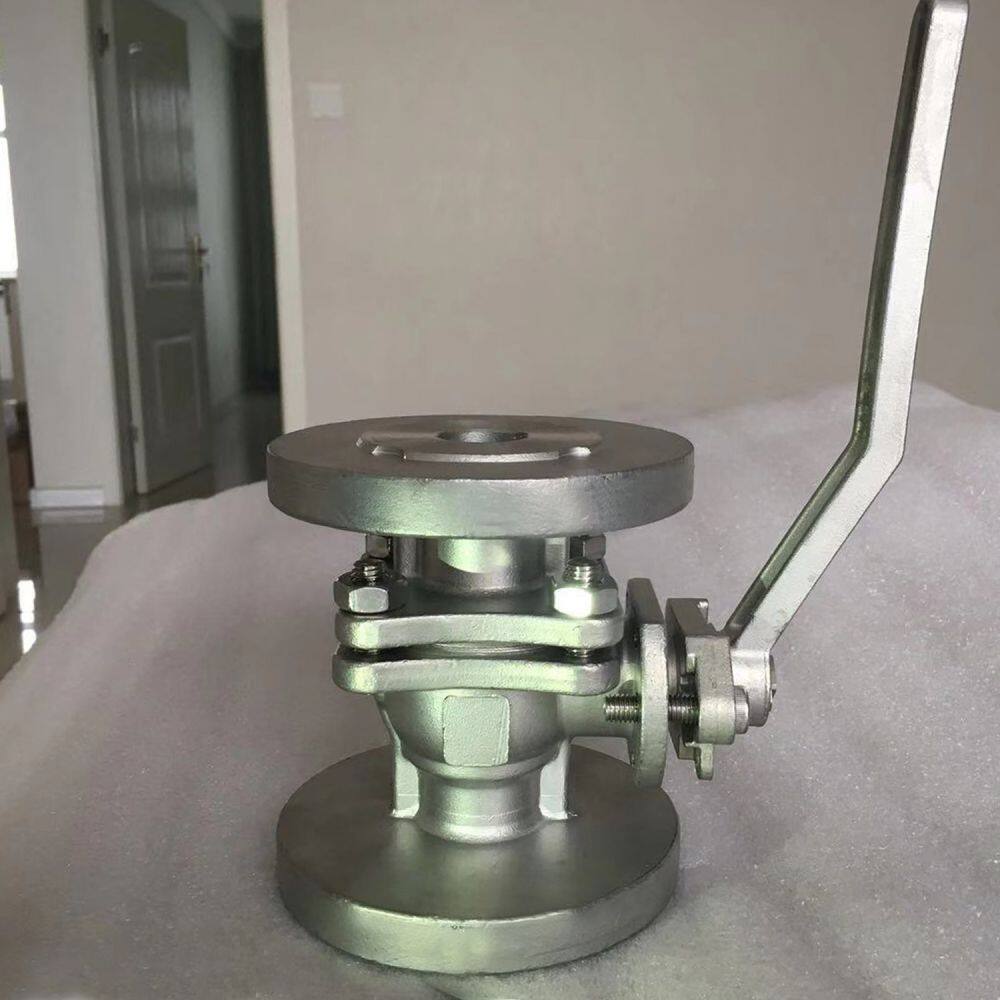

API 608 Compliant ANSI Stainless Steel Ball Valve Featuring ASME B16.5 Flange Standard for Reliable Connections
- tianjin
- T/T L/C PayPal
- 15 days
You May Like
-
Compact ANSI Stainless Steel Ball Valve for HVAC and Industrial Systems, Offering Easy Installation and Maintenance
-
ANSI Stainless Steel Ball Valve With Carbon Steel Stem and Cast Iron Body for High-pressure 300LB Applications in Petrochemical
-
ANSI Forged Globe Valve With Malleable Iron Handle and Carbon Steel Construction for Easy Maintenance
-
Compact ANSI Forged Globe Valve for Chemical Processing Plants With A182 F316L Seat Material
-
ANSI Forged Globe Valve Designed for Oil and Gas Pipelines Featuring API 598 Testing Compliance
-
Economical ANSI Forged Globe Valve Sizes 1/4" to 2" With Multiple Pressure Options for General Industrial Service
Product Details
| Material | Other, Stainless Steel (A351 CF8/CF8M) | Compliance Standard | API 608, ASME B16.5 | |
| Connection Type | Flanged (RF/FF/RTJ) | Pressure Rating | Class 150 to 600 | |
| Size Range | DN15 to DN600 (1/2“ to 24“) | Temperature Range | -20°C to 200°C | |
| Operation | Manual lever or actuated | Seat Material | PTFE or reinforced PTFE |
Product Description
ANSI Ball Valve
Engineered for demanding industrial applications, this API 608 compliant stainless steel ball valve delivers unmatched reliability in critical flow control systems. Featuring ASME B16.5 flanged connections, it ensures leak-proof performance under extreme pressures and temperatures. Manufactured by Chengxin Valve Co., Ltd. since 1993, this valve combines precision engineering with corrosion-resistant materials to minimize maintenance downtime and extend service life across oil & gas, chemical processing, and water treatment industries.
Key design innovations include:
Full-bore construction for unrestricted flow and reduced pressure drop
Zero-leakage sealing technology tested to API 598 standards
Fire-safe design compliant with API 607 requirements
360-degree rotating ball mechanism for uniform wear distribution
TECHNICAL SPECIFICATIONS
| Parameter | Standard Range | Custom Options |
|---|---|---|
| Body Material | CF8 (304SS), CF8M (316SS) | Super duplex alloys |
| Pressure Class | 150, 300, 600 | Class 900-2500 |
| End Connection | Raised Face (RF) | RTJ, Ring Joint |
| Ball Surface | Electropolished | Hard-coated |
Operational benefits include:
Quarter-turn operation for rapid shutoff (90° rotation from full open to close)
Blow-out proof stem design per API 608 section 5.3.2
Antistatic device integrated into ball-stem connection
Double-block-and-bleed capability for safe isolation
PERFORMANCE ADVANTAGES
The trunnion-mounted ball design provides:
Reduced operating torque by 40-60% compared to floating valves
Seat spring loading for positive sealing at low pressures
Emergency sealant injection ports standard on all sizes
With ISO9001, ISO14000, and OHSAS18001 certified manufacturing, each valve undergoes rigorous testing including:
Hydrostatic shell test at 1.5x rated pressure
High-pressure seat leakage test per API 598
Material traceability via heat number documentation
FREQUENTLY ASKED QUESTIONS
Q: What fluids are compatible with this valve?
A: Suitable for hydrocarbons, steam, corrosive chemicals, and potable water when using FDA-compliant seals.
Q: Are actuators included?
A: Manual operation is standard; pneumatic/electric actuators available upon request.
Q: What documentation accompanies delivery?
A: Each valve ships with material certs, test reports, and installation manual.
Q: How does ASME B16.5 ensure connection reliability?
A: It standardizes flange dimensions and pressure ratings for guaranteed interchangeability.
Q: What's the lead time for custom orders?
A: Typically 6-8 weeks for non-standard configurations.
Leverage Chengxin Valve's three decades of expertise to secure your critical flow systems. With direct exports from Tianjin, Qingdao, Shanghai, and Ningbo ports to South America, Eastern Europe, Africa, and the Middle East, we provide technical support through our global offices. Request a pressure rating calculation or material selection guidance today.
All specifications subject to engineering review for specific service conditions. Certified product drawings available upon inquiry.
