Qianli Super Cam Ai Gorilla 4K Camera 0.5X 0.7X Auxiliary Barlow Lens

Description

Qianli Super Cam Ai Gorilla Industrial Camera equipped with Sony 1/1.8 inch CMOS and Authentic 4K Real 8M Pixel Sensor. Qianli Gorilla 4K camera and Qianli 0.5X 0.7X Auxiliary Teleconverter Barlow lens can be used with 6558 Gorilla Trinocular Microscope for mobile phone repair and other electronic motherboard soldering repair. Qianli 0.5X 0.7X objective lens are designed for the YCS Integrated Microscope UV Lamp used with the 6558 series microscopes.

Option:

1. Qianli Ai Gorilla 4K Camera (Space Gray/Black with Sprinkles).

2. Qianli 0.5X Barlow lens.

3. Qianli 0.7X Barlow lens.

Qianli Gorilla Microscope Features:

1. High-resolution and ultra-clear imaging: True 8-megapixel Sony CMOS sensor supports 4K resolution.

2. Proprietary Ai processing chip: Built-in high-performance 2GHz CPU + GPU + NPU module provides powerful image processing capabilities.

3. Dual 4K Output: Simultaneously outputs 4K/60FPS via HDMI and 4K/30FPS via Type-C, supporting high-definition video transmission.

4. Flexible Interface Design: Multiple interfaces (USB 2.0, Type-C 3.1, HDMI 2.0, etc.) are provided to meet the connection needs of various devices.

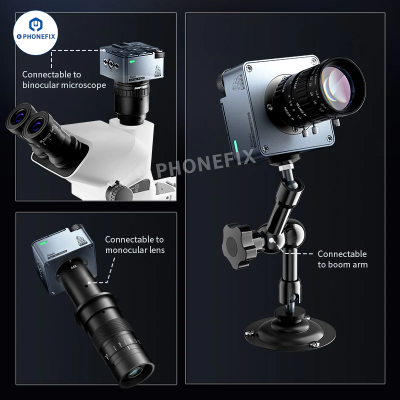

5. Modular Design: Supports interchangeable lenses and flange mounts to meet diverse application scenarios.

6. High Integration and Openness: Supports connection to a wireless mouse, keyboard, and external storage devices (TF card/USB flash drive) for operation and storage.

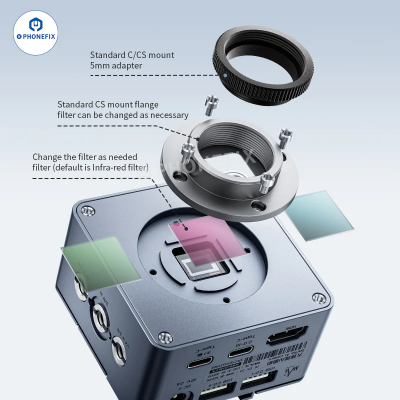

7. Removable Filter: Replaceable filters are available to adapt to different environmental requirements.

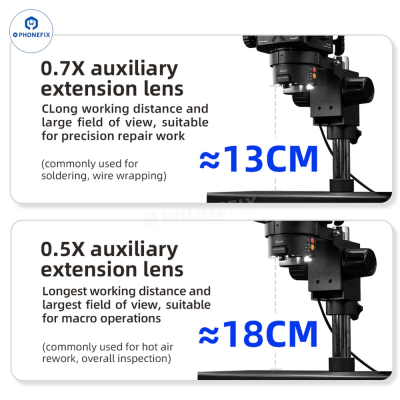

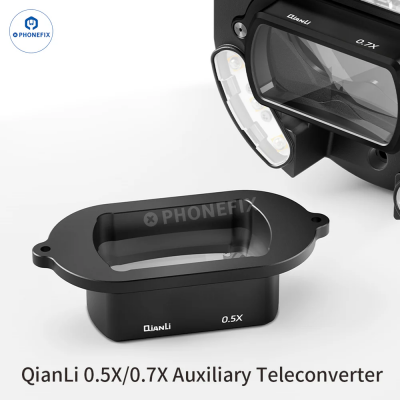

Qianli 0.5X/0.7X Auxlliary Teleconverter lens Features:

1. Improved Working Distance and Field of View: The microscope's field of view and operating space are significantly increased, facilitating precise manipulation.

2. Two Magnification Options: 0.5X and 0.7X teleconverters are available, allowing users to choose the one based on their usage habits and needs.

3. Strong Compatibility: Compatible with microscope light sources and supports integrated microscope positioning, improving work efficiency.

4. Larger Operating Space: The 0.5X teleconverter offers the longest working distance, ideal for macro operations; the 0.7X teleconverter provides a wider field of view, ideal for detailed repair work.

5. Addresses Operational Pain Points: Effectively addresses the issues of short working distance and limited access to the work area, making hands-on repairs more convenient.

Qianli Super Cam Ai Gorilla CMOS 4K Camera Performance Parameters:

Resolution:

· HDMI: 3840*2160@60FPS, 1920*1080@60FPS

· Type-C 3.1: 3840*2160@30FPS, 1920*1080@60FPS

Operation: Wireless mouse, buttons, PC software, Universal UVC port

Input Voltage: DC 12V/2A

Hardware and Interfaces:

CMOS Sensor: Sony 1/1.8-inch 8-megapixel

Hardware Processor: 2GHz (CPU+GPU+NPU module) high-performance processor

Pixel Size: 2μmx2μm

Hardware Interfaces: USB 2.0 x2, Type-C 2.0 x1, Type-C 3.1 x1, HDMI 2.0 x1, DC 2.1 x1, TF Card x1

Expansion Ports: Cold Shoe x1, 1/4" Bracket x4, 3/8" Bracket x3, 3/8" with Arri Positioning Hole x1

Status Light: Flashes on power-up, Green

Lens Mount: CS, C-Mount

Storage/Upgrade Ports: TF Card/USB Drive/PC Software

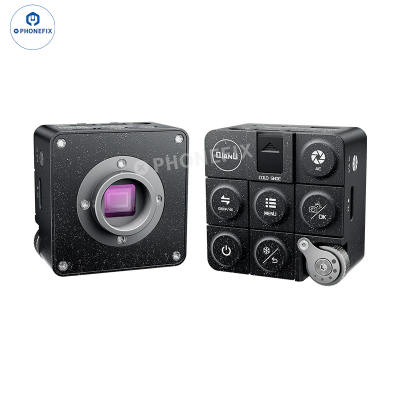

Buttons: 6 Function Buttons, 1 Scroll Knob

Software:

White Balance: Auto, Manual

Exposure: Auto/Manual

Mirror Image: Horizontal/Flip

Menu Languages: Chinese/English/Spanish

(Default Chinese)

Photo/Video: Automatic and Manual Naming, Customizable Save Path

Image Controls: Optimal Brightness, Gain, Contrast, Saturation

Digital Zoom: Digitally Zoom in and out

Expansion App: Installable (to be developed, customized, or installed by different industries)

Upgrade: Automatically detects and updates upgrade files upon power-up

Super Cam Ai Gorilla CMOS 4K Camera Specifications:

Brand: Qianli

Name: Super Cam Ai Gorilla

Function: CMOS Camera

Color: Space Gray/Black with Sprinkles

Packaging Dimensions: 170 x 190 x 83mm

Product Dimensions: 70 x 70 x 46mm

Material: Aluminum Alloy

Gross Weight: 891g

Qianli 0.5X/0.7X Auxlliary Teleconverter Product Specifications:

Brand: Qianli

Name: 0.5/0.7X Auxiliary Teleconverter

Dimensions:

· 62.5 x 29 x 17.5mm (0.5X)

· 62.5 x 29 x 11.5mm (0.7X)

Optional: 0.5X Teleconverter, 0.7X Teleconverter

Net Weight: 31.3g (0.5X) / 29g (0.7X)
