Home > Products > Acoustic Barriers > Modern Acryl PVC Sound Reduction Panels Road Noise Barrier With Micro Hole Design for Highway/Railway Use

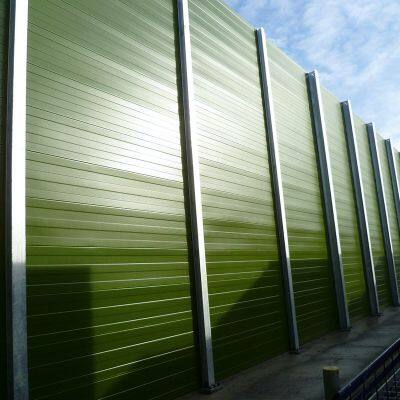

Modern Acryl PVC Sound Reduction Panels Road Noise Barrier With Micro Hole Design for Highway/Railway Use
US$ 8.2 - 12
/ Square Meter
1 Square Meter(Min. Order)
You May Like
-
2-400 Mesh Stainless Steel Wire Mesh Filter Screen/micro Screen Mesh Filter/ Micron Stainless Steel Mesh Screen(Factory)
-
Titanium NetFlatted Titanium Expanded Mesh80 180 400 Mesh 0.05mmPlatinized Titanium Flatten Meshtitanium Wire Mesh
-
80 180 400 Mesh 0.05mmFlatted Titanium Expanded MeshNickel for Gdltitanium Wire Mesh
-
Wholesale 200mm 300mm 400mm Stainless Steel Test Lab Sieve Standard Flour Sieve for Baking Straining Powdering Welded Mesh
-
Stainless Steel Laboratory Test Sieve 200/300/400/500/600mm Soil Sand & Filters Sieve With Welding & Bending Services
-
100 150 200 250 500 600 Micron Analysis Test Sieve Mesh Price 304 316 Lab Standard Sifter Shake Soil Sieve Manufacturer
Product Details
| Warranty | 1 Year | |||
| Feature | Anti-Corrosion, Fire Resistant, Water Resistant | After-sale Service | Onsite Installation, Online Technical Support, Onsite Training, Onsite Inspection | |
| Project Solution Capability | graphic design, 3D model design | Application | school/highway/railway | |
| Design Style | Modern | Place of Origin | Hebei, China | |
| Brand Name | longen | Model Number | Acoustic Barriers r902 | |
| Type | Absorptive & Reflective | Product name | noise Sound Barrier | |
| barrier post | H-post:125x125x6.5x9mm, 150x150x7x10mm.or as you need | Noise barrier panel | 2000x500x80,or as you need | |
| Flange plate | 300x300x10, 350x350x10, etc. | Metal plate thickness | 0.5-1.2mm | |
| Panel type | shutter type, punching type | color | lake blue, green, blue, opal, brown, silvery gray, red | |
| Certificate | ISO9001 & BV | application | for highway or railway sound barrier |
Product Description
Product Description
Residential highway railway powder coated Sound Barrier Panel / Noise Barrier Wall / Acoustic Screen Fencing

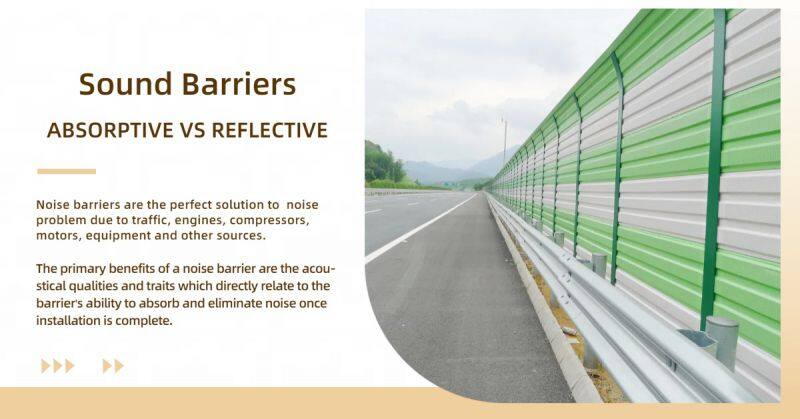

noise barriers/sound barriers absorptive

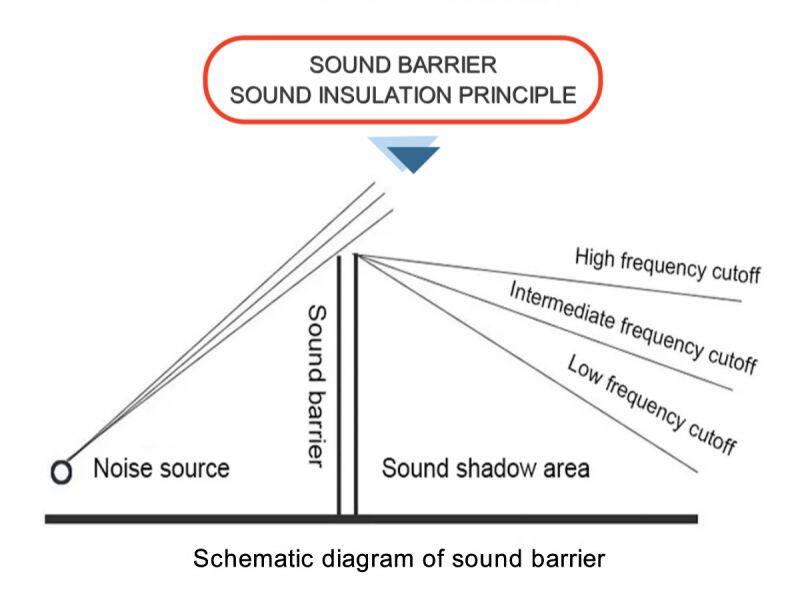

Noise barriers are the perfect solution to frustrating noise problem due to traffic, engines, compressors, motors, equipment and other sources. The primary benefits of a noise barrier are the acoustical qualities and traits which directly relate to the barrier's ability to absorb and eliminate noise once installation is complete.
Key Features of Our Noise Barrier Systems
Structural Durability:Our noise barrier systems are engineered for longevity and can withstand diverse environmental conditions.
Acoustic Excellence:The integration of advanced materials and acoustic principles ensures exceptional noise reduction capabilities.
Customization Options:We offer a range of customization options, from barrier designs to finishes, allowing seamless integration into diverse environments.
Aesthetic Integration:Our barrier systems harmonize with architectural styles, enhancing visual aesthetics while providing noise reduction benefits.
Installation Efficiency:The modular design of our systems streamlines installation, reducing project timelines while maintaining performance standards.
Sustainability Focus:We prioritize eco-friendly materials and construction practices, ensuring that our noise barrier systems are sustainable solutions.Product Parameters
Key Features of Our Noise Barrier Systems
Structural Durability:Our noise barrier systems are engineered for longevity and can withstand diverse environmental conditions.
Acoustic Excellence:The integration of advanced materials and acoustic principles ensures exceptional noise reduction capabilities.
Customization Options:We offer a range of customization options, from barrier designs to finishes, allowing seamless integration into diverse environments.
Aesthetic Integration:Our barrier systems harmonize with architectural styles, enhancing visual aesthetics while providing noise reduction benefits.
Installation Efficiency:The modular design of our systems streamlines installation, reducing project timelines while maintaining performance standards.
Sustainability Focus:We prioritize eco-friendly materials and construction practices, ensuring that our noise barrier systems are sustainable solutions.Product Parameters
Specification
Main materials and specifications of noise barrier | ||||
Parts List | Items | Product Description | ||
Noise barrier Panel | Metal Material | Galvanized sheet, aluminum alloy sheet, color plate | ||
Transparent material | Glass, PC board, acrylic board, etc | |||
Other materials | High-strength cement, cement wood chips, glass steel, etc | |||
Hole pattern | Louver holes: common hole spacing 20*137, 20*182 | |||
Micropores: common 3 holes 3 distances,5 holes 2 distances,2 holes 4 distances | ||||
Aperture ratio | Not less than 25% | |||
Common size | 500*2000*80(100)mm,500*2000*120mm,1000*2000*80(100)mm etc | |||
Surface concave groove | Can be customized according to drawings or customer requirements | |||
Surface treatment | Electrostatic powder coating, fluorocarbon spraying | |||
Color | Green 6029, blue 5017, gray 7042, white 9010, etc., color can be selected according to the national standard color card | |||
H shape post | Material | Q235B | ||
Common size | 100*100*6*8,125*125*6.5*9,150*150*7*10,175*175*7.5*11 etc | |||
Common height | 2m-6m, up to 12m | |||
Flange | Size tolerance less than 2mm, thickness tolerance less than 0.4mm | |||
Long hole: 22*30, 24*30, 26*40, 28*40; round hole: 22, 24, 26, 28, 30, 35 | ||||
Surface treatment | Hot dip galvanizing - electrostatic powder coating, fluorocarbon spraying | |||
Color | Green 6029, blue 5017, gray 7042, white 9010, etc., color can be selected according to the national standard color card | |||
Noise absorb material | Glass wool, rock wool, water-repellent cloth, acoustic felt, foam aluminum, aluminum fiber, etc. | |||
We can provide you with all types of sound barriers.
Feature | Steel Noise Barriers | Aluminum Noise Barriers | Glass Noise Barriers | Concrete Noise Barriers |
Durability | High | Moderate | Moderate | High |
Acoustic Performance | Excellent | Good | Good | Excellent |
Aesthetics | Varied options | Modern designs | Transparency | Limited |
Corrosion Resistance | Yes | Yes | Yes | N/A |
Maintenance | Low | Low | Low | Moderate |

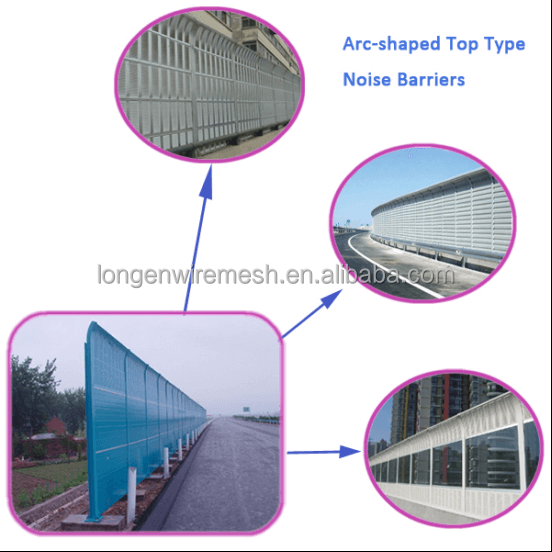

common sizes and types barriers for customers
Application
Some transportation noise barrier applications include:
> Highways and Bridges
> Structure-Mounted
> Railroads
> Distribution Facilities
> Transit Hubs / Intermodal
> Airports
> Highways and Bridges
> Structure-Mounted
> Railroads
> Distribution Facilities
> Transit Hubs / Intermodal
> Airports
Sound Barrier for Industrial Infrastructure
> Some industrial noise barrier applications include:
> Manufacturing Plants
> Equipment Enclosures
> Perimeter Walls
> Roof-Top HVAC Barriers
> Generator Surrounds
> Some industrial noise barrier applications include:
> Manufacturing Plants
> Equipment Enclosures
> Perimeter Walls
> Roof-Top HVAC Barriers
> Generator Surrounds
Sound Barrier for Municipal Infrastructure
> Some municipal noise barrier applications include:
> Light Rail Transit
> Waste Water Treatment Plants
> Pump Stations
> Schools
> Equipment Barriers
> Roof-Top Equipment Enclosures
> Some municipal noise barrier applications include:
> Light Rail Transit
> Waste Water Treatment Plants
> Pump Stations
> Schools
> Equipment Barriers
> Roof-Top Equipment Enclosures

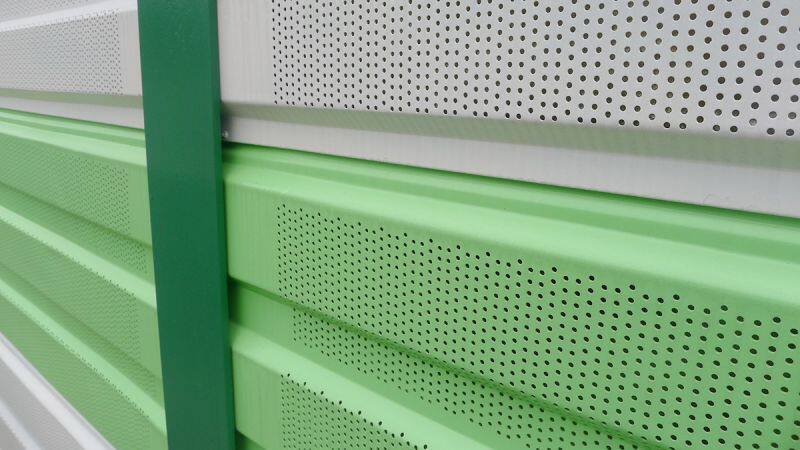

Micropore outdoor Noise Barriers

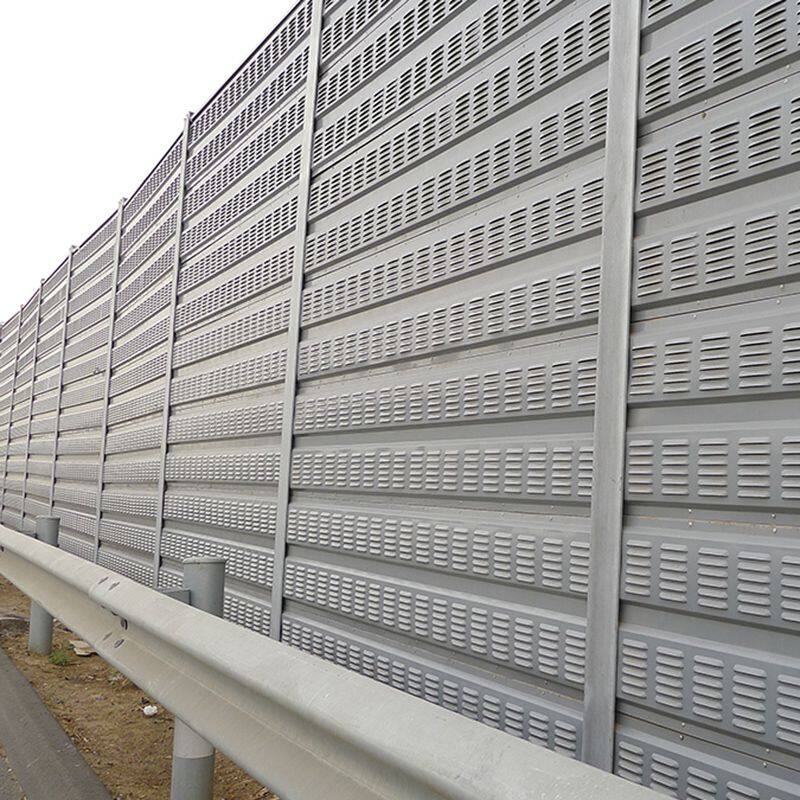

Shutter Outdoor Noise Barriers
PC Sheet Outdoor Noise Barriers

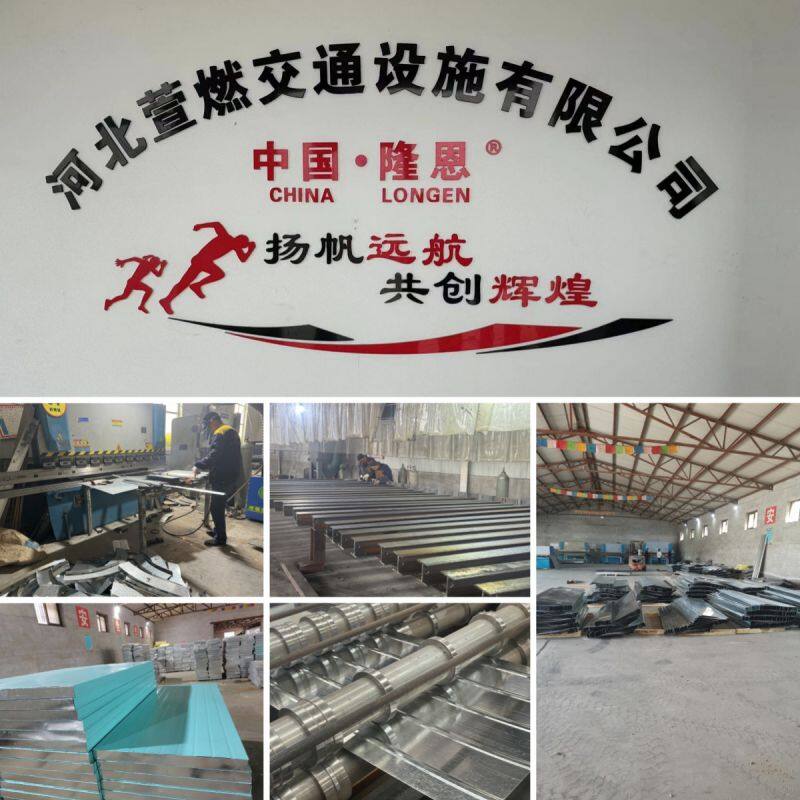

Company Profile
