Home > Products > Hexmesh/Hexmetal > 410S Tortoise Shell Mesh Bonding Hole Stainless Steel Hex Metal for Refractory Line China Manufacturer

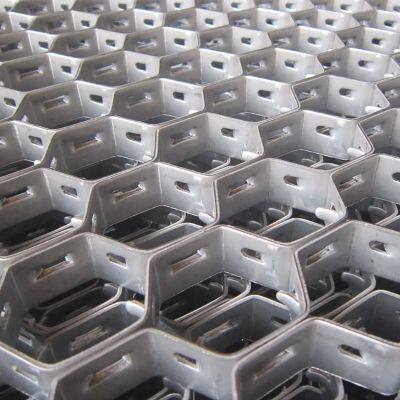

410S Tortoise Shell Mesh Bonding Hole Stainless Steel Hex Metal for Refractory Line China Manufacturer
US$ 9.2 - 45
/ Square Meter
1 Square Meter(Min. Order)
You May Like
-
50mm Hexagonal Hole Expanded Stainless Steel Wire Mesh Mild Carbon Hexsteel With Lances for China Exporter's Refractory Lining
-
2.0X25mm 37mm Hole Flex Mesh China Factory Hexagonal Metal Mesh for Cyclones of the FCC Units in Oil Refinery
-
Wholesale Flexible Hexagonal Tortoise Shell Mesh Roll-Formable Reinforcement Stainless Steel Wire Welded Mesh for Curved Ducts
-
Refractory Hex Mesh, Malla Hexagonal As Lining Against Heat, Abrasion & Corrosion, ST37 Carbon Steel
-
Flexible Hexmesh Refractory Lining FCC Units for Oil Refinery | 2.0X25mm | 37mm Hole | 1mX1m | Flexmetal Mesh
-
Chinese Supplier's 1*1 Inch Mesh Steel Drag Mat for Soft Turf Maintenance 36*36 48*60 72* 72 72*36 36*60 Square Welding Cutting
Product Details
| Model Number | rhex16 | |||
| Brand Name | Longen | Place of Origin | Hebei, China | |
| Delivery Time | 8-14 days | Processing Service | Cutting, Welding | |
| Weave Style | Plain Weave | Hex steel material | A3F,0CR13,1CR17,OCR18NI9,SS321,SS316 | |
| Hex steel material thickness | 1.0mm,1.2mm,1.5mm,1.8mm,2.0mm,2.5mm,3.0mm | Mesh size | 40mm,48mm,50mm,60mm,80mm,100mm | |
| Product name | Hexagonal Cellular Mesh Hex Metal Refractory Lining | Usage | refractory linings | |
| Hex steel product depth | 10-60mm | Connection Type | Inner buckle lock riveting \ outer buckle lock riveting | |
| Feature | High weldability \ long lifetime \ easy to install | Color | sliver and black | |
| Advantage | Longer Life |
Product Description
Product Description

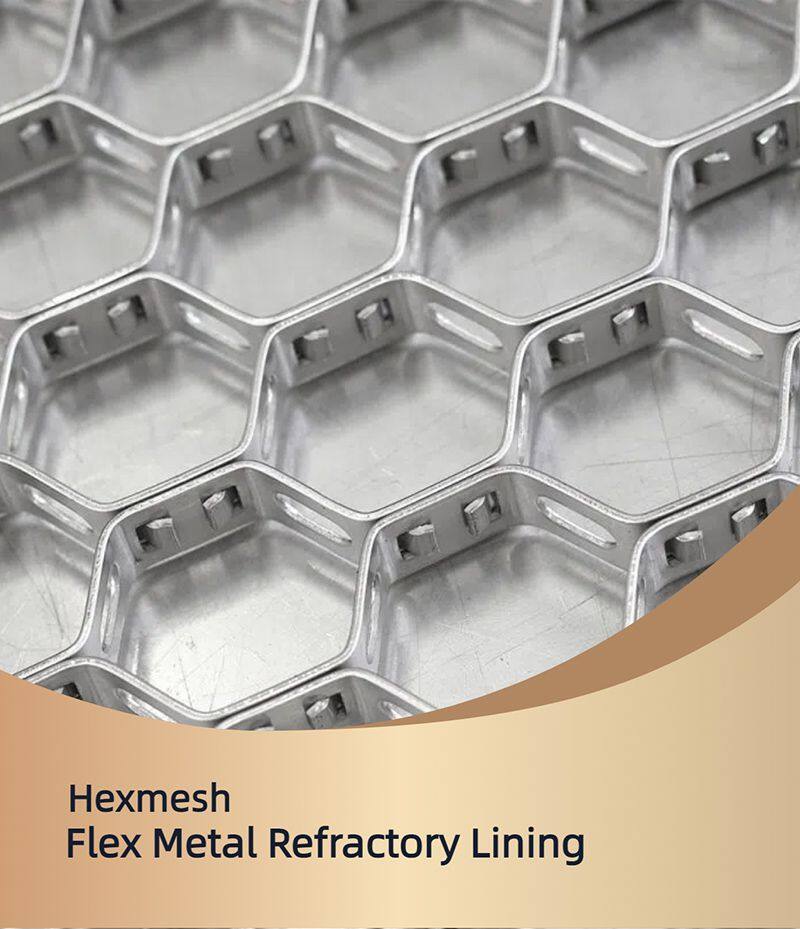

Hex mesh, commonly referred to as hex metal or hex metal grating, is a robust steel framework widely used in industrial and construction applications. Also termed hex steel mesh, hex steel grill, or hex steel grid, this material serves as a reinforced structural support for refractory linings and concrete surfaces. Engineered for durability, hex metal mesh is manufactured by precision-pressing and interlocking metal strips, forming uniform hexagonal apertures that enhance load distribution and material adhesion.
Ideal for high-temperature environments and heavy-duty projects, hex metal grating combines strength with flexibility, making it a preferred choice for furnace linings, flooring systems, and infrastructure reinforcement. The unique hexagonal pattern of hex mesh ensures optimal anchoring for castable refractories while allowing thermal expansion control. Available in various steel grades and aperture sizes, hex steel grid solutions meet rigorous engineering standards for industrial lining applications and architectural designs.
Specification
Hex mesh material | A3F,0CR13,1CR17,OCR18NI9,SS321,SS316 |
Hex mesh material thickness | 1.0mm,1.2mm,1.5mm,1.8mm,2.0mm,2.5mm,3.0mm |
Mesh size | 40mm,48mm,50mm,60mm,80mm,100mm |
Hex mesh product thickness | 10-60mm |
Connection Type | Inner buckle lock riveting outer buckle lock riveting. |

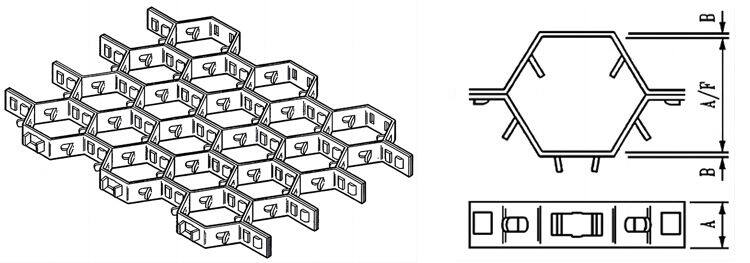

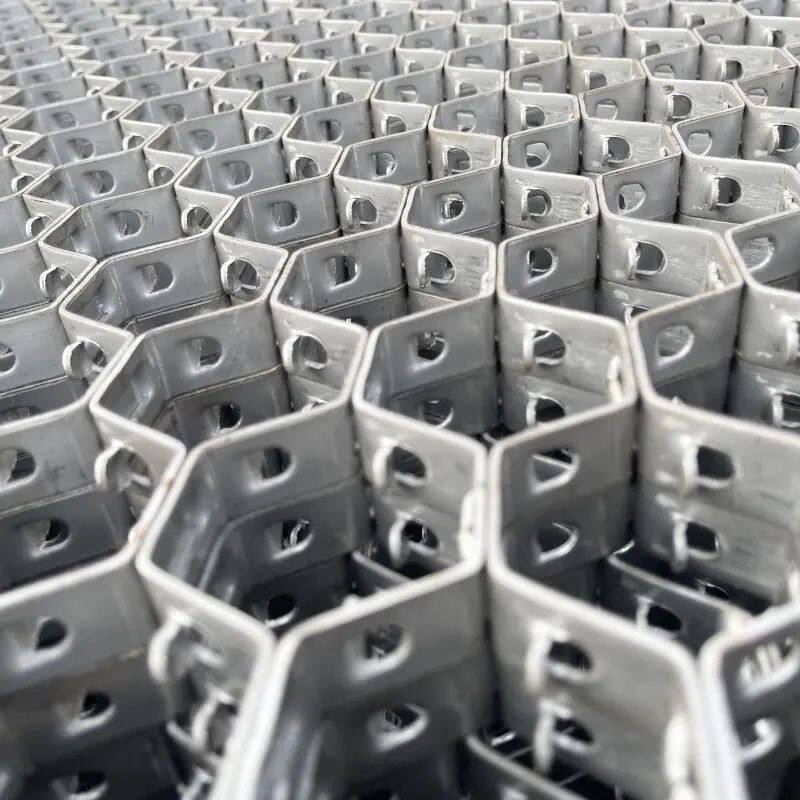

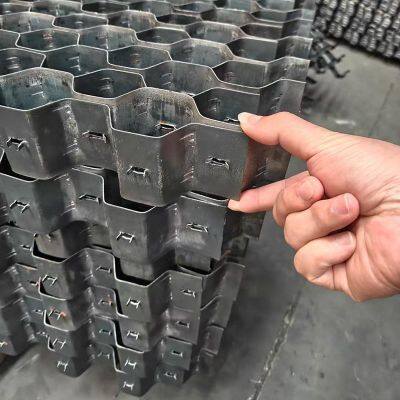

Hexsteel: Bonding Hole Type
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to
achieve a bond from one cell to another.
Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to
achieve a bond from one cell to another.
Hexsteel: lance tab type
This style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
This style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.
Application
Hex Mesh & Hex Metal: Versatile Solutions for Industrial Applications
1. High-Temperature Equipment Protection
Hex steel mesh serves as an exceptional refractory lining material for extreme environments, offering unmatched flexibility, tensile strength, and corrosion resistance. Its thermal stability makes it ideal for lining:
Industrial furnaces and reactor vessels
Cement plant cyclones and kiln components
Power plant flue gas systems and ductwork
Petrochemical processing equipment ：Particularly effective in power generation, steel production, and heavy manufacturing sectors, hex metal significantly enhances heat dissipation while resisting thermal erosion and mechanical abrasion.
2. Heavy-Duty Floor Reinforcement
Hex mesh provides superior impact resistance for industrial flooring systems requiring:
Forklift traffic durability in warehouses
Thermal protection in foundry floors (800°C+ environments)
Load-bearing capacity for truck ramps/docks
Slip-resistant surfaces in steel mills
Structural reinforcement for waste treatment plants
Its interlocking design withstands continuous rolling loads and mechanical stress, outperforming conventional concrete floors in high-traffic zones.
3. Adaptable Structural Solutions
The unique flexibility of hex metal allows seamless adaptation to complex geometries, making it perfect for:
Curved duct lining installations
Custom-shaped furnace interiors
Reactor vessel contouring
1. High-Temperature Equipment Protection
Hex steel mesh serves as an exceptional refractory lining material for extreme environments, offering unmatched flexibility, tensile strength, and corrosion resistance. Its thermal stability makes it ideal for lining:
Industrial furnaces and reactor vessels
Cement plant cyclones and kiln components
Power plant flue gas systems and ductwork
Petrochemical processing equipment ：Particularly effective in power generation, steel production, and heavy manufacturing sectors, hex metal significantly enhances heat dissipation while resisting thermal erosion and mechanical abrasion.
2. Heavy-Duty Floor Reinforcement
Hex mesh provides superior impact resistance for industrial flooring systems requiring:
Forklift traffic durability in warehouses
Thermal protection in foundry floors (800°C+ environments)
Load-bearing capacity for truck ramps/docks
Slip-resistant surfaces in steel mills
Structural reinforcement for waste treatment plants
Its interlocking design withstands continuous rolling loads and mechanical stress, outperforming conventional concrete floors in high-traffic zones.
3. Adaptable Structural Solutions
The unique flexibility of hex metal allows seamless adaptation to complex geometries, making it perfect for:
Curved duct lining installations
Custom-shaped furnace interiors
Reactor vessel contouring
Cyclone separator reinforcement
When combined with flex metal systems, hex mesh creates hybrid linings that strengthen both flat surfaces (factory floors) and curved structures (chimney flues), while enhancing cement composite durability through embedded reinforcement.

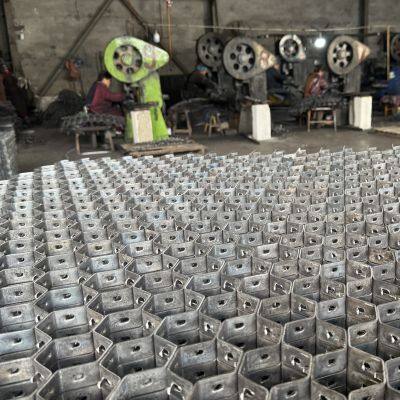

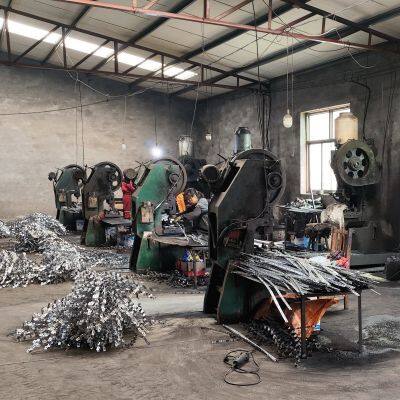

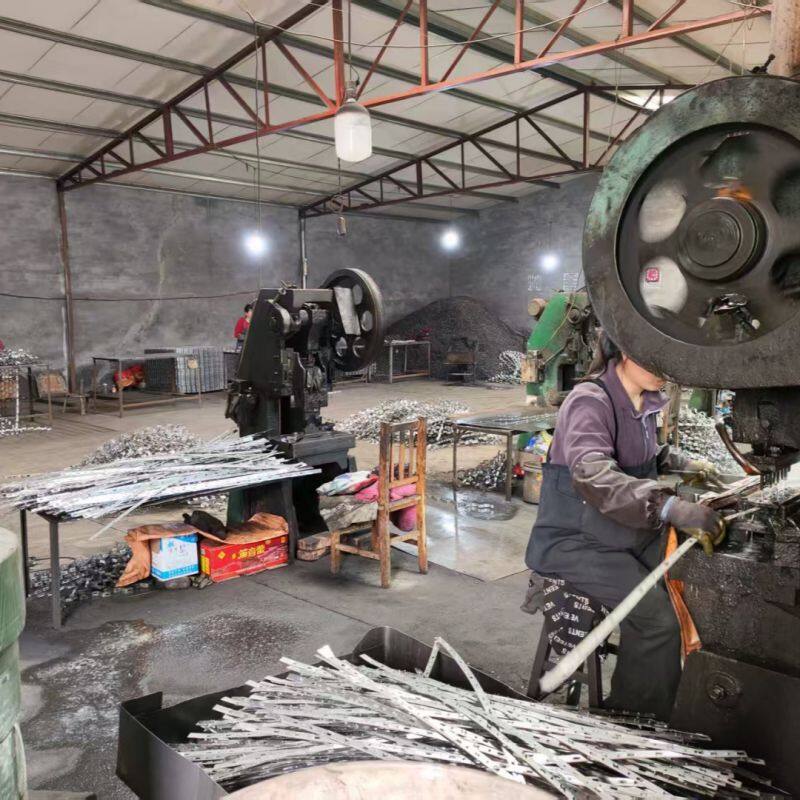

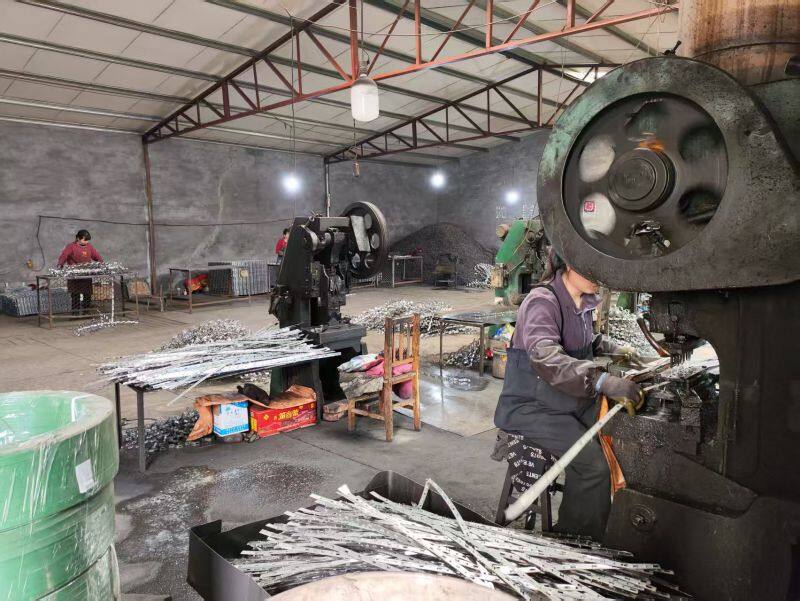

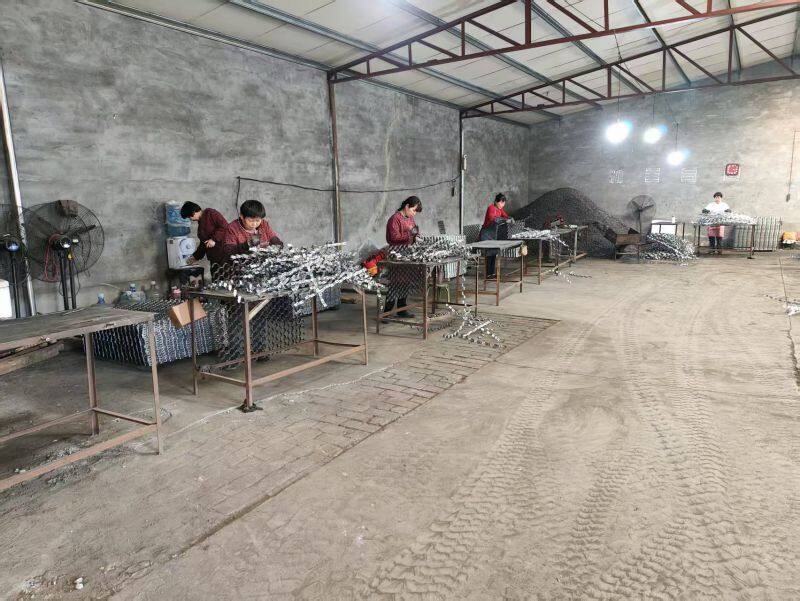

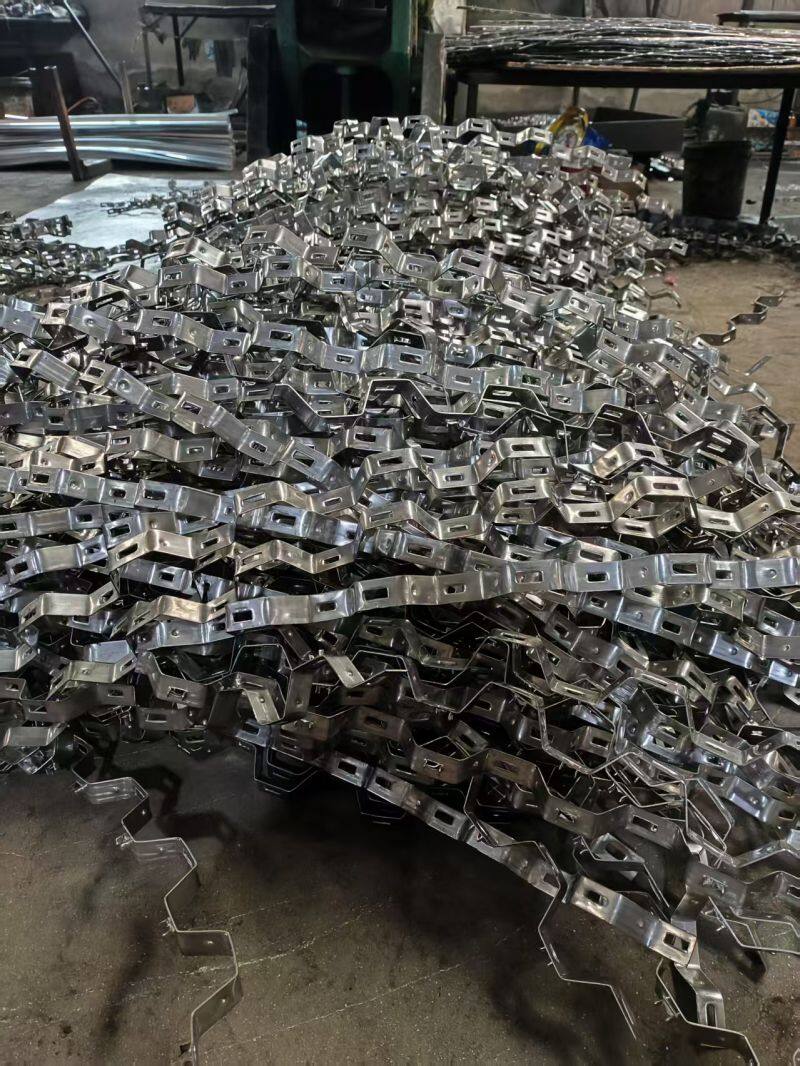

production process

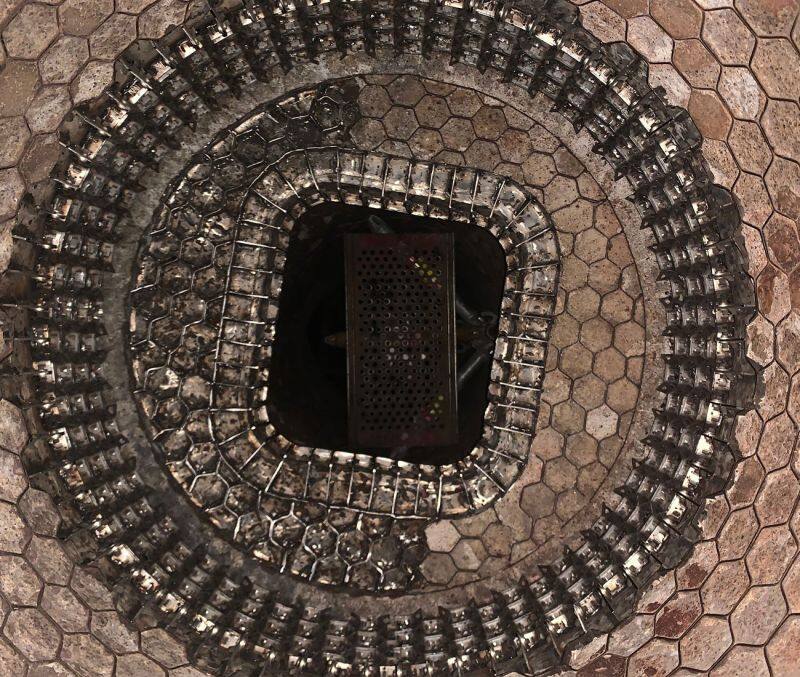

installation Instructions
Hex mesh Hexagonal Heat-Resistant Mesh install process ：

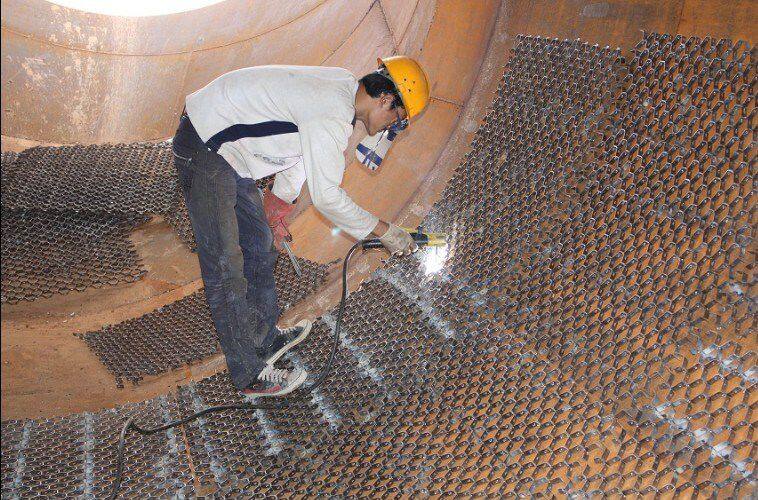

1.Weld the Tortoise Shell Mesh directly to the inner walls of equipment (e.g., boilers, pipelines).
2.Apply heat-resistant coatings or castables over the mesh to create a robust, insulated layer.
2.Apply heat-resistant coatings or castables over the mesh to create a robust, insulated layer.

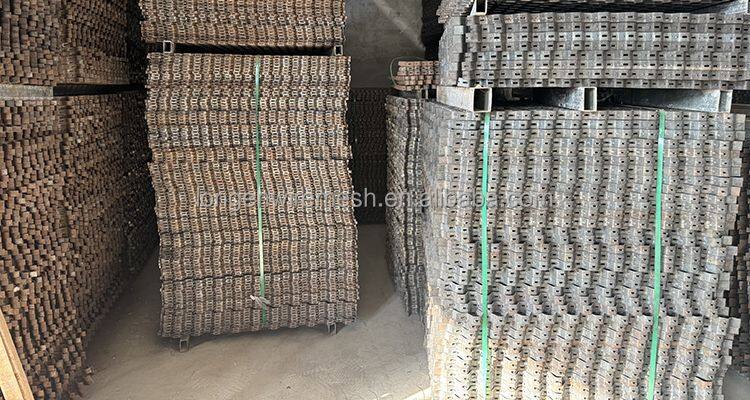

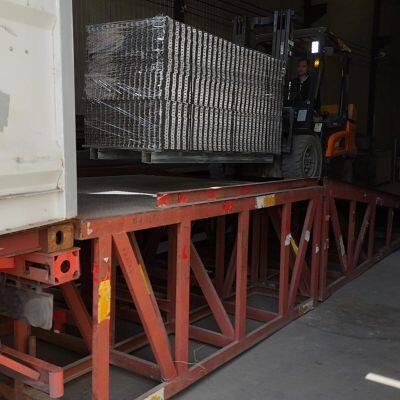

Packing & Delivery
Company Profile
FAQ
Q1: What are your payment terms?
A1: We accept wire transfer (T/T), Letter of Credit (L/C), Western Union, or payments via Alibaba. Terms: 30% deposit upfront,with the remaining 70% due before shipment. We provide photos and packaging details for your approval before final payment.
Q2: Do you offer after-sales support?
A2: Quality and service are our top priorities. Complimentary after-sales assistance is provided to ensure long-term satisfaction.
Q3: Can you produce custom-designed products?
A3: Yes, we specialize in bespoke manufacturing based on your designs, specifications, or technical drawings.
A1: We accept wire transfer (T/T), Letter of Credit (L/C), Western Union, or payments via Alibaba. Terms: 30% deposit upfront,with the remaining 70% due before shipment. We provide photos and packaging details for your approval before final payment.
Q2: Do you offer after-sales support?
A2: Quality and service are our top priorities. Complimentary after-sales assistance is provided to ensure long-term satisfaction.
Q3: Can you produce custom-designed products?
A3: Yes, we specialize in bespoke manufacturing based on your designs, specifications, or technical drawings.
Q4: How do you justify your pricing?
A4: Our quotations include transparent cost breakdowns to demonstrate competitive and fair pricing.
Q5: Do you accept client-provided designs?
A5: Absolutely. We work closely with your designs to deliver tailored solutions.
Q6: What delivery terms do you offer?
A6: Options include EXW (Ex-Works), FOB (Free On Board), CFR (Cost and Freight), and CIF (Cost, Insurance, Freight).
Q7: What are your packaging standards?
A7: Standard packaging uses rods/belts for bundles or coils, but we customize to meet specific client requirements.
Q8: What is the delivery timeline?
A8:
* Stock orders: Shipped within 7 business days after deposit.
* Custom production: 15–30 days post-deposit, depending on order complexity.
Q9: Can you replicate products from samples?
A9: Yes. We reverse-engineer from samples or drawings, including mold and fixture creation.
Q10: Do you provide free samples?
A10: Complimentary samples are available for in-stock items; shipping costs are borne by the buyer.
Q11: How do you ensure product quality?
A11: All items are produced in certified facilities, undergo rigorous QA/QC checks per national standards, and include warranties.
Q12: What sets your company apart?
A12:
* Quality & Value: Premium materials at competitive rates.
* Experience: Decades of expertise with dedicated after-sales support.
* Quality Control: Inspections at every production stage.
* Packaging: Secure, customized solutions by expert teams.
* Flexibility: Trial orders completed in 7 days; samples on request.
A4: Our quotations include transparent cost breakdowns to demonstrate competitive and fair pricing.
Q5: Do you accept client-provided designs?
A5: Absolutely. We work closely with your designs to deliver tailored solutions.
Q6: What delivery terms do you offer?
A6: Options include EXW (Ex-Works), FOB (Free On Board), CFR (Cost and Freight), and CIF (Cost, Insurance, Freight).
Q7: What are your packaging standards?
A7: Standard packaging uses rods/belts for bundles or coils, but we customize to meet specific client requirements.
Q8: What is the delivery timeline?
A8:
* Stock orders: Shipped within 7 business days after deposit.
* Custom production: 15–30 days post-deposit, depending on order complexity.
Q9: Can you replicate products from samples?
A9: Yes. We reverse-engineer from samples or drawings, including mold and fixture creation.
Q10: Do you provide free samples?
A10: Complimentary samples are available for in-stock items; shipping costs are borne by the buyer.
Q11: How do you ensure product quality?
A11: All items are produced in certified facilities, undergo rigorous QA/QC checks per national standards, and include warranties.
Q12: What sets your company apart?
A12:
* Quality & Value: Premium materials at competitive rates.
* Experience: Decades of expertise with dedicated after-sales support.
* Quality Control: Inspections at every production stage.
* Packaging: Secure, customized solutions by expert teams.
* Flexibility: Trial orders completed in 7 days; samples on request.
