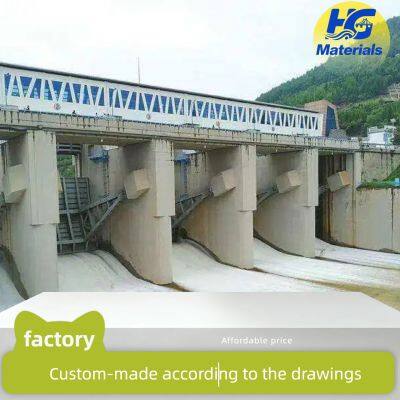

Fixed-wheel Steel Gate, Stainless Steel Flat Sliding Steel Gate, Hydraulic Curved Steel Gate for Power Stations and Reservoirs

# Application Scenarios of Radial Gates   Radial gates, renowned for their structural efficiency—uniform force distribution across the curved leaf, superior hydraulic performance, low operational energy consumption, and adaptability to large spans and high water heads—are widely employed in diverse fields such as water conservancy, flood control, irrigation, water supply, and navigation. Below is a detailed elaboration of their practical applications, highlighting their tailored value in specific scenarios:   ## 1. Flood Discharge and Flood Control in Large Hydraulic Hubs   In core flood-discharge components of large reservoirs and dams, such as spillways and flood discharge tunnels, radial gates are often the preferred choice. These scenarios demand **safe of ultra-large flows** (especially during flood seasons) while withstanding immense water pressure from high heads (up to tens or even hundreds of meters).   - **Spillway Applications**: Spillways serve as the "safety valves" of reservoirs, requiring rapid discharge of excess floodwater to prevent dam overtopping during peak floods. The curved leaf of radial gates enables quick rotational opening, and its shape aligns naturally with water flow lines, minimizing turbulence and head loss during discharge—thus reducing scouring of downstream riverbeds. For instance, the Three Gorges Dam’s spillways utilize multiple radial gates, each with a span exceeding 20 meters, capable of withstanding water pressure from over 100-meter heads. During flood seasons, these gates can be opened synchronously or in stages to precisely control downstream flow, ensuring dam safety.   - **Flood Discharge Tunnel Outlets**: Some reservoirs divert floodwater through underground tunnels, where outlet gates must seal and open under high pressure. The radial force structure of radial gates efficiently transfers water pressure to hinge shafts on side piers, preventing leaf deformation. Their compact rotational opening design also saves space in tunnel structures, making them ideal for confined underground environments.   ## 2. Water Intake and Tailwater Control in Hydroelectric Power Stations   Stable operation of hydroelectric power stations relies on precise water flow regulation. Radial gates act as "flow control valves" in water intake and tailwater systems, directly impacting power generation efficiency and unit safety.   - **Intake Gates**: Water intake channels or pressure pipes of hydropower stations require gates to cut off flow (e.g., during unit maintenance) or adjust flow into turbines. Radial gates excel here: when open, their leaves rotate above the water flow, avoiding obstruction of the water passage and reducing head loss (by over 30% compared to vertical-lift gates, which "block and lift" water). When closed, their tight sealing (typically ≤0.1L/(m·h) leakage) prevents water waste. For example, numerous large hydropower stations in the Jinsha River basin use radial gates at their intakes, integrated with automated control systems to real-time adjust flow based on grid load demands, enhancing power generation efficiency.   - **Tailwater Gates**: Tailwater from turbines must be regulated by tailwater gates to maintain stable downstream water levels—fluctuations in tailwater levels directly affect turbine output. The rapid response capability of radial gates (opening within 1–2 minutes) allows them to adapt quickly to tailwater changes, especially during sudden unit shutdowns, where they can close promptly to prevent abrupt drops in downstream water levels.  ## 3. Channel Regulation in Irrigation and Water Supply Projects   In long-distance water conveyance channels for agricultural irrigation and urban water supply, radial gates regulate water levels and flows to ensure stable water distribution across different regions or users.   - **Irrigation Canal Control**: Large-scale irrigation districts often require dividing water into branch canals with varying flow rates based on crop water needs. Radial gates, with their stepless adjustment capability, can precisely control flow (adjustable within ±5% of target values) by rotating the leaf to different angles. Their curved shape minimizes flow resistance, ensuring uniform water distribution to downstream farmland without excessive energy loss—critical for maintaining pressure in extended canal networks.  - **Urban Water Supply Pipelines**: In water supply systems, radial gates are installed at the junctions of main pipelines and distribution networks to regulate water pressure and flow, preventing pipeline bursts from overpressure or insufficient supply to high-elevation areas. Their reliable sealing performance avoids water loss, ensuring efficient utilization of water resources.   ## 4. Navigation Locks and Waterway Management   Navigation locks, which enable ships to traverse water level differences between upstream and downstream, depend on radial gates for safe and efficient operation.  - **Lock Gates**: The upstream and downstream gates of navigation locks must open/close smoothly to adjust water levels in the lock chamber, allowing ships to enter and exit. Radial gates are ideal here due to their large span capacity (up to 50 meters) and ability to withstand high differential water pressure between the lock chamber and external water. When opened, their leaves rotate outward, creating unobstructed passages for ships; when closed, their tight sealing prevents water leakage between the lock chamber and external water, ensuring stable water level adjustment within the chamber. For example, the Three Gorges Navigation Lock uses massive radial gates to accommodate large cargo ships, with each gate weighing hundreds of tons and operating with high precision to ensure safe passage.  ## 5. Urban Flood Control and Drainage   In urban areas prone to waterlogging, radial gates are integrated into drainage systems, rivers, and lakes to manage water levels and prevent flooding.   - **River Mouth Gates**: Coastal cities often install radial gates at river mouths to block tidal surges (high tides) from intruding upstream, which could exacerbate urban flooding. These gates close during high tides to prevent saltwater intrusion and open during low tides to drain urban stormwater. Their corrosion-resistant design (e.g., anti-rust coatings, stainless steel components) ensures durability in saline environments.   - **Stormwater Detention Ponds**: Urban stormwater detention ponds use radial gates to control the release rate of stored rainwater, preventing downstream drainage systems from being overwhelmed during heavy rains. The gates can be programmed to open gradually as downstream water levels recede, balancing flood control with the need to empty the pond for subsequent storms.   ## 6. Industrial Water Intake and Wastewater Discharge   Industries such as thermal power plants, steel mills, and chemical plants require large volumes of cooling water, while their wastewater discharge must comply with regulatory standards—both scenarios benefit from radial gates.   - **Cooling Water Intake**: Power plants draw water from rivers or lakes for cooling, and radial gates at intake points regulate the intake flow to match cooling system demands. Their ability to operate under high flow rates (up to thousands of cubic meters per hour) and resist debris impact (via reinforced leaf structures) ensures continuous water supply to critical industrial processes.   - **Wastewater Discharge Regulation**: Industrial wastewater must be discharged at controlled rates to avoid disrupting receiving water bodies. Radial gates at discharge outlets adjust flow based on real-time water quality monitoring data, ensuring compliance with environmental standards while preventing sudden pollution spikes.   In summary, radial gates’ versatility stems from their ability to balance structural strength, hydraulic efficiency, and operational flexibility, making them indispensable in scenarios requiring precise water control, high reliability, and adaptation to complex hydraulic conditions. Their applications span from large-scale national infrastructure to local urban and industrial systems, underscoring their critical role in modern water resource management.
