Home > Products > Steel coil sheet and plate > Prime Quality 304L Stainless Steel Anti-Skid Plate 316L Cold Rolled 201 Pattern Iron Coil ASTM Standard 1mm Bending

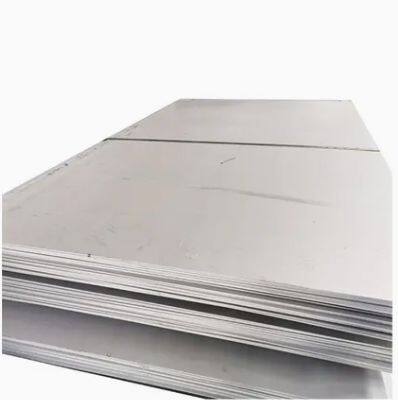

Prime Quality 304L Stainless Steel Anti-Skid Plate 316L Cold Rolled 201 Pattern Iron Coil ASTM Standard 1mm Bending

FOB Price

Negotiable / Ton

1 Ton(Min. Order)

Payment TermsT/T
Delivery Detail8 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	ISO, ROHS, AISI, ASTM, GB, EN	Shape	Square
Technique	Other	Surface Treatment	Pickling
Model NO.	201 304 316L	Production Process	welding/ polishing/inside bead removing
Specification	Customized

Product Description

AR400 wear-resistant steel plate origin Wugang delivery status quenching and tempering (Q+T) (quenching and tempering)
1, AR400 Product Introduction:
AR400 is a high-strength wear-resistant plate.
Naming: N is the first pinyin letter of the two Chinese characters "Nai" and "Mo", while 400 represents the average Brinell hardness of this steel plate.
2, NM450 Function and Performance:
Function: It mainly provides protection in situations or parts that require wear resistance, prolonging the service life of the equipment, reducing maintenance downtime caused by maintenance, and correspondingly reducing investment in funds.
Performance: Performance: Yield over 950, tensile strength above 1180.

GB NM400 Wear Resistant Steel Plate Cuttable Quenched Tempered Heat Treatment Hot Rolled High Hardness 400HB Metal plate
Standard grade	DIN: XAR300,XAR400, XAR450, XAR500, XAR600, DILLIDUR400V,DILLIDUR450V,DILLIDUR500V; X120Mn12; 1.3401; SSAB:400,450,500,550,600;WELDX700,WELDX900,WELDX960; NF: FORA400,FORA500,Creusabro4800,Creusabro8000; EN: QUARD400,QUARD450,QUARD500 ; RAEX320,RAEX400,RAEX450,RAEX500; DUrostat400,DUrostat450,DUrostat500; JIS: JFE-EH360,JFE-EH400,JFE-EH500, WEL-HARD400, WEL-HARD500; SUMIHARD-K340,SUMIHARD-K400,SUMIHARD-K500 GB: NM360,NM400,M450,NM500,NM550,NM600,NR360,NR400,B-HARD360,B-HARD400,B-HARD450,KN-55,KN-60,KN-63.
Treatment	Quenched&Tempered Steel Plate
Thickness	Common 2~100 mm (1~300 mm)
Width	Common 10~2500 mm (600~2500 mm)
Length	100~12000 mm, customized
surface	Clean, finishing,blasting and painting according to customer requirement
Certificate	MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS.
Trading term	EXW, FOB, CFR, CIF
Application	Widely used in a variety of architectural and engineering structures,such as 1.) metal constructions such as buildings,bridges,ships; 2.) transmission tower, reaction tower; 3.) lifting transportation machinery; 4.) industrial furnace;boilers 5.) container frame, warehouse goods shelves, etc

GB/T 24186 NM Wear Resistant Steel Plates Chemical Composition(%) max.
Grade	C	Si	Mn	P	S	Cr	Ni	Mo	Ti
NM300	0.23	0.70	1.60	0.025	0.015	0.70	0.50	0.40	0.050
NM360	0.25	0.70	1.60	0.025	0.015	0.80	0.50	0.50	0.050
NM400	0.30	0.70	1.60	0.025	0.010	1.00	0.70	0.50	0.050
NM450	0.35	0.70	1.70	0.025	0.010	1.10	0.80	0.55	0.050
NM500	0.38	0.70	1.70	0.020	0.010	1.20	1.00	0.65	0.050
NM550	0.38	0.70	1.70	0.020	0.010	1.20	1.00	0.70	0.050
NM600	0.45	0.70	1.90	0.020	0.010	1.20	1.00	0.80	0.050
B: 0.0005-0.006, Als min. 0.010

GB/T 24186 NM Wear Resistant Steel Plates Mechanical Properties
Steel Grade	Thickness	Hardness (HBW)	Elongation	Tensile Strength
NM300	≤80	270-330	≥14%	≥1000 Mpa
NM360	≤80	330-390	≥12%	≥1100 Mpa
NM400	≤80	370-430	≥10%	≥1200 Mpa
NM450	≤80	420 - 480	≥7%	≥1250 Mpa
NM500	≤70	≥470	-	-
NM550	≤70	≥530	-	-
NM600	≤60	≥570	-	-

Grade Comparison
GB	NM300,NM360,NM400,NM450,NM500
SS	HARD400, HARD450, HARD500, HARD600
DIN	XAR400, XAR450, XAR500, XAR600, Dillidur400, Dillidur500
NBN	QUARD400, QUARD450, QUARD500
NF	FORA400, FORA500, Creusabro4800, Creusabro8000
JIS	JFE-EH360, JFE - EH400, JFE - EH500, WEL-HARD400, WEL-HARD500
SFS	RAEX400, RAEX450, RAEX500

It has good mechanical strength,corrosion-resistant and heat-resistance strength.

It is widely used in electric apparatus,chemical machinery,ood processing equipment,rechargeable batteriesomputers, cellular Phone, power tools, camcorders and so on.

Nickel Grade	Ni+Co	Cu	Si	Mn	C	Cr	S	Fe	Mg
Nickel Grade	≥	≤
Ni201	99.2	.25	.3	.35	.02	.2	.01	.3	-
Ni200	99.0	.25	.3	.35	.15	.2	.01	.3	-

Physical Data

Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.oC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446oC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.oC

Typical Mechanical Properties

Mechanical Properties	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

Our Production Standard

	Bar	Forging	Pipe	Sheet/Strip	Wire
ASTM	ASTM B160	ASTM B564	ASTM B161/B163/B725/B751	AMS B162	ASTM B166

	Main Composition %
	Ni	Mn	Si
NiMn2	Bal.	1.5-2.5	0.3
NiMn3	Bal.	2.3-3.3	0.3
NiMn5	Bal.	4.6-5.4	0.5

Code No.	Dia. mm	TS. N/mm2	Elongation %
NiMn2	≤6.0	≥350	≥20
NiMn3	≤6.0	≥350	≥20
NiMn5	≤6.0	≥350	≥20

1.standard exporting cartons package
2.Cartons packed with wooden pallet
3.As per customized specifications such as logo or others
