Home > Products > Road mark removal machine > High Quality Diesel Fuelled Water Blasting System High-Pressure Jetting for Road Marking Removal Recovery Pump New Condition

High Quality Diesel Fuelled Water Blasting System High-Pressure Jetting for Road Marking Removal Recovery Pump New Condition

FOB Price

US$ 19000.00

≥1 Sets

Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

machine type	HIGH PRESSURE CLEANER	condition	New
place of origin	shenyang, China	brand name	RELIABLE
feature	Non-Toxic	power source	Diesel
use	road mark removal	cleaning process	Cold Water Cleaning
cleaning type	HIGH PRESSURE CLEANER	material	Metal / Coil
Power	132	dimension(lwh)	420210220cm
warranty	1 Year	weight (kg)	4000
Voltage	24V	Pump Type	TRIPLEX
Fuel Tank Capacity	300L	Horsepower	132KW
Water Tank Capacity	3000l	Flow Rate	32lpm
Pump Drive	direct mount	Pressure Washer Duty	Heavy-Duty
Name	road mark remove machine	Working pressure	160Mpa/1600bar
Water flow	30 L/min	Diesel engine	153kw
High pressure hose	50meters	road mark removal device	hand push system
function	road mark removal and recovery	machine color	canbe customized

Product Description

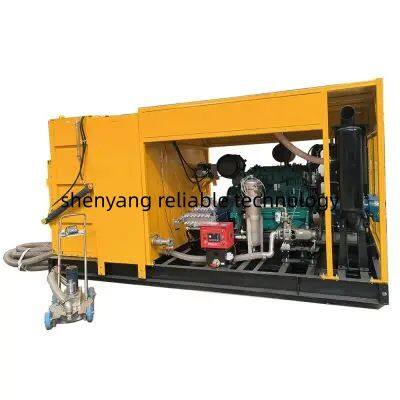

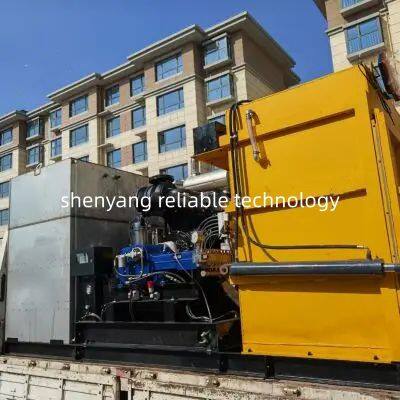

Road mark removal high pressure water jetting machine

UHP Water Jetting road marking removal equipment for removing pavement or road line. UHP waterjetting works faster and more thoroughly without dust or pavement damage. Pavement markingremoval equipment also use new technology like water blasting to obliterate the surface Road markings are designed for the long run, but sometimes they need to be removed. When a trafficsituation changes or a parking is redesigned. Special tools and techniques enable to remove stripesand pavement markings efficiently. Removing existing road striping or pavement markings is a real difficulty. The markings must beefficiently removed without causing damage to the road surface. Sometimes the marking are even harder than the underlying asphalt. So water jetting equipment forroad marking removal will be the best way will not cause any dust. Now pavement marking removalequipment prefer to water blasting .

High pressure water jetting machine for road mark removal

Advantages of water blasting road line

* Completely removes markings, coatings and runway rubber * No abrasives to damage concrete or asphalt * Saves time and labor. * Creates a stronger bond for repainting * Eliminates dust and debris with vacuum system. * Cleans deep into runway grooves The complete road marking removal equipment from all surfaces has never been as quick, clean andcost-eficient. And perhaps best of all, very little to no confusing mark left behind. No resurfacing, andno secondary clean-up or drying necessary. Thermoplastic, waterborne paints, epoxy paints. Rubberized paints and permanent foil backed orwaffle tapes do not stand a chance against the 40,600 psi (2800 bar)

Model	Rate pressure	Water flow	Electric motor drive	Diesel engine drive
RLB0530	160MPa/1600bar	30 L/min	90kw	132kw
RLB0550	200Mpa/2000bar	45 L/min	160kw	225 kw

Name: High pressur plunger pump

Rate pressure: 160Mpa/1600bar

water flow:30 L/min~110L/min

Pump speed： 366rpm

plunger stroke: 120mm

with pressure gauge and safety valve;

pump head and plunger material: stainless steel

with plunger cooling system and pump end lubrication system

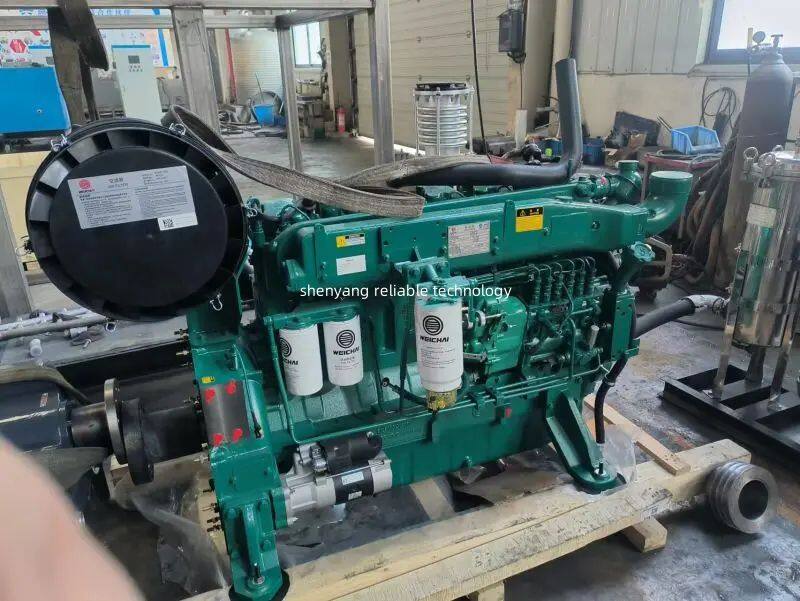

Name: Diesel engine

engine power: 120-264kw; 6-cyliner

Speed： 1500rpm

start type: electric start, 24v/100Ah

with cooling system

contact with high pressure pump

Road mark removal device

include recovery device

Road mark revmoal device

stainless steel material

road mark removal system

Road mark removal device

airport rubber removal

Overflow water spray gun

Pressure has 1500bar/2800bar

Overflow type

Contact thead: M22*1.5 & M24*1.5

material: stainless steel

High pressure rubber hose

Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc

Pressure: Max.2800bar;

material: ruber with wire winding inside

Barracuda nozzle / turbo nozzle

4-jet rotating nozzle

better for surface strong dirt cleaning

Flexible lance

Pressure 1500bar/2800bar/3035bar

Size: DN8-10-12mm;

Contact thead: M22*1.5 & M24*1.5

Length can be customized

Overflow foot control valve

Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel

industrial Pipe Cleaning nozzle

Size: DN13,24,40, etc;

7-jet rotating nozzle;

Pressure: 1500bar/2800bar

for industrial inner pipe cleaning

Q1：What pressures and flow is suitable to road mark removal?

A1：Pressure normally suggest 1500bar~2500bar; Flow rates suggest 30-50L/min,

Q2: Are you trading company or manufacturer?

A2：We are manufacturer here for over 10years, can OEM machines according to customized request.

Q3: How do I choose the right nozzle for my application?

A3: suggest hand push road mark removal device with recovery function. also can do rust paint removal. also this machine can choose water spray gun and cleaning nozzles for surface strong dirt cleaning, choose pipe cleaning nozzle for industrial pipe cleaning purpose,

Q4:What type of water should be used in these machines?

A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.

Q5:What are the power options for high-pressure water jetting machines?

A5: for road mark removal, suggest diesel engine drive will be more convenient;

also can choose Electric: Suitable for indoor use and quieter operation.

Q6:Can I customize a high-pressure water jetting machine for specific needs?

A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.

Q7:How do I choose suitable model?

A7:You can confirm your working purpose request, we have rich experience

Q8:How long is your delivery time?

A8:Normal 3-10 days; Customized order need to confirm with the seller.

Q9:What Certificate do you have?

A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,

Q10:Which is your shipping port?

A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.

Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?

A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
