Large Drain Sewer High Pressure Water Jetting Machine New Condition Efficient Cleaner for Drainage Pipe Cleaning

FOB Price

US$ 9900.00

1 - 4 Sets

US$ 8500.00

≥5 Sets

Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	CE	machine type	HIGH PRESSURE CLEANER
condition	New	place of origin	shenyang, China
brand name	RELIABLE	feature	Non-Toxic
power source	Electric	use	Sewer drain pipe cleaning machine
cleaning process	Cold Water Cleaning	cleaning type	HIGH PRESSURE CLEANER
material	Metal / Coil	Power	145
dimension(lwh)	280155165cm	warranty	1 Year
weight (kg)	2000	Voltage	380 V
Pump Type	TRIPLEX	Horsepower	145kw
Water Tank Capacity	150gal	Flow Rate	220L/min
Engine Brand	Huadong	Pump Drive	direct mount
Pressure Washer Duty	Heavy-Duty	Name	sewer drain pipe cleaning machine
Working pressure	24Mpa/240bar	Water flow	220 L/min
Diesel engine	145kw	Electric motor	90kw, 3 phase
High pressure hose	100meters	nozzle	DN40-DN80 sewer drain pipe cleaning
function	sewer drain pipe cleaning machine	machine color	canbe customized
cleaning sewer diameter	100-1200mm

Product Description

Products Description

Sewer drain pipe cleaning machine

High pressure water jet cleaning machine, with large water flow 50-170L/min, pressure 24Mpa; use suitable pipe cleaning nozzle-multi hole jetting nozzle, better for sewer drain inner pipe cleaning, to unclog the blocked pipe.

Name	sewer drain pipe cleaning machine
Engine drive	Diesel engine
power	33kw 41kw 145kw etc
Rate pressure	200bar -240bar-300bar
water flow	50L/min 85L/min 170L/min 250L/min 300L/min can be chosen
hose reel	automatic hydraulic hose reel
water filter	water inlet filter 80um
how to choose	according to the pipe diameter you plan to cleaning

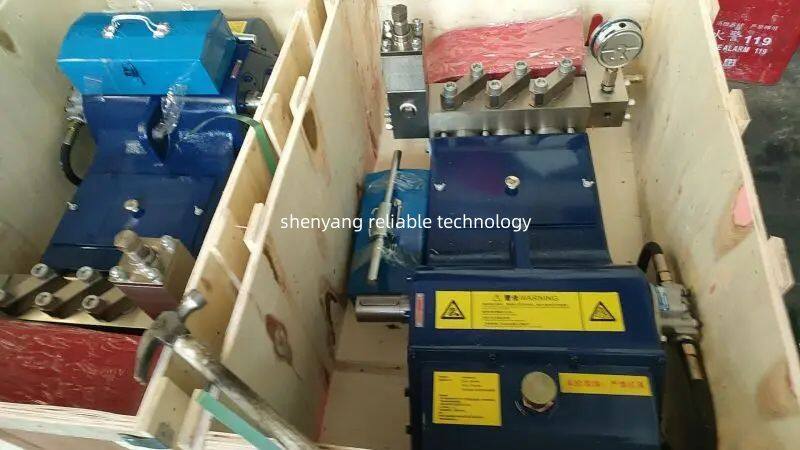

Name: High pressur plunger pump

Rate pressure: 24Mpa/240bar

water flow:170 L/min

Pump speed： 405rpm

plunger diameter:40 mm

with pressure gauge

safety valve

for diameter 100-1200mm sewer drain pipe cleaning purpose

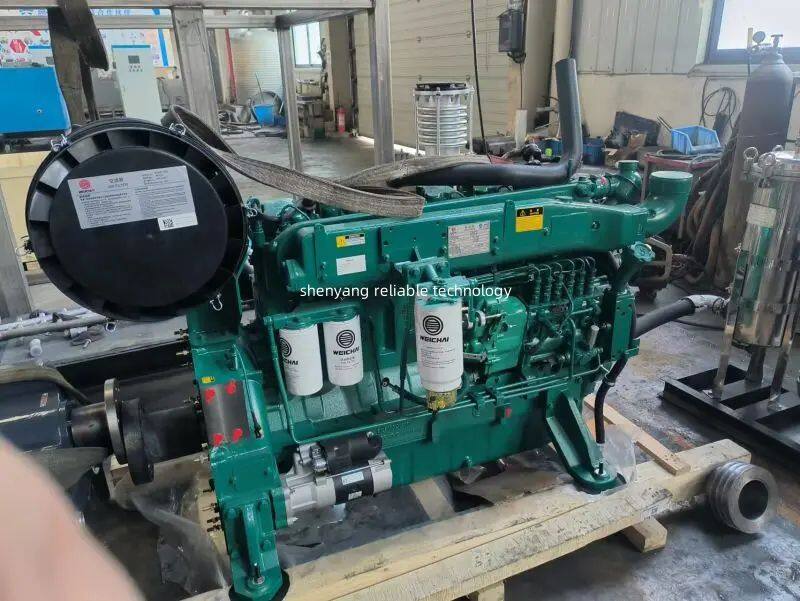

Name: diesel engine drive

Power: 41kw to 145kw, 264kw etc

Speed： 1500rpm

start type: electric start, 24v/45Ah

belt connect with high pressure pump

Name: Electric motor

power: 15kw-90kw; 3-phase, 380v/50Hz

Volt also can be customized

440v/460v/220v,etc

Speed： 1500rpm

contact with high pressure pump

customized automatic cleaning device

water spray gun cleaning

automatic cleaning device

Mul-ti hole jetting nozzle

M22*1.5 thread

material: stainless steel

Size: DN20/30/40/50/80

Rotary pipe cleaning nozzle

connect: 1/2'' M22*1.5 or customized

mul-ti hole jetting, body rotary

high effect for pipe cleaning

large pipe cleaning nozzle

alumium material, light weight;

easy to be operate

for large diameter pipe cleaning

Model	Rate pressure	Water flow	Engine/power	cleaning pipe dia.
RLB45345	24MPa/240bar	170 L/min	Electric / 90 kw Diesel / 145 kw	100~1500mm
RLB22300	20Mpa/200bar	85 L/min	Electric / 30 kw Diesel / 41 kw	50~800mm
RLB13300	20Mpa/200bar	50 L/min	Electric / 15 kw Gasoline / 27 HP Diesel / 28 HP	50~400mm

plastic pipe cleaning

Municipal pipeline cleaning

sewer drain pipe cleaning

Overflow water spray gun

Pressure has 1500bar/2800bar

Overflow type

Contact thead: M22*1.5 & M24*1.5

material: stainless steel

High pressure rubber hose

Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc

Pressure: Max.2800bar;

material: ruber with wire winding inside

Barracuda nozzle / turbo nozzle

4-jet rotating nozzle

better for surface strong dirt cleaning

Flexible lance

Pressure 1500bar/2800bar/3035bar

Size: DN8-10-12mm;

Contact thead: M22*1.5 & M24*1.5

Length can be customized

Overflow foot control valve

Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel

industrial Pipe Cleaning nozzle

Size: DN13,24,40, etc;

7-jet rotating nozzle;

Pressure: 1500bar/2800bar

for industrial inner pipe cleaning

FAQ

Q1：What pressures and flow is suitable to sewer drain pipe cleaning?

A1：Pressure normally suggest 200bar~500bar; Flow rates suggest 50-500L/min,

pressure not need so higher, as big water flow us large pipe cleaning.

Q2: Are you trading company or manufacturer?

A2：We are manufacturer here for over 10years, can OEM machines according to customized request.

Q3:What's the cleaning type for the sewer drain pipe cleaning?

A3: a: use mul-ti hole jetting nozzle, go inside the pipe itself for inner pipe cleaning

b: use rotating nozzle, rotary during water jetting, so it will be better effect.

Q4:What type of water should be used in these machines?

A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.

Q5:What are the power options for high-pressure water jetting machines?

A5: for road mark removal, suggest diesel engine drive will be more convenient;

also can choose Electric: Suitable for indoor use and quieter operation.

Q6:Can I customize a high-pressure water jetting machine for specific needs?

A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.

Q7:How do I choose suitable model?

A7:You can confirm your working purpose request, we have rich experience

Q8:How long is your delivery time?

A8:Normal 3-10 days; Customized order need to confirm with the seller.

Q9:What Certificate do you have?

A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,

Q10:Which is your shipping port?

A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
