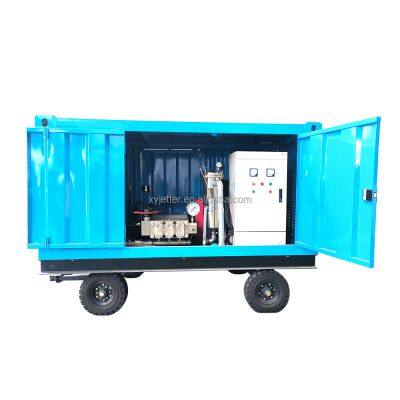

Industry Heat Exchanger Pipe Cleaning Machine High Pressure Water Jetting Equipment Tube Pipeline Cleaner

Standard features :

Name: High pressure water jetting machine

* High pressure plunger pump:

• Pressure: range from 700ba to 1500bar; (10000psi to 22000psi)
• Water flow: range from 20L/min to 150L/min
• Could be driven by electric motor or diesel engine; can be choosed by customer.
• Pump head material: stainless steel ;
• The plunger is made of stainless steel nickel-plated alloy with high hardness,
• The pump body is made of ductile iron, which is hard and not easy to deform.
• Forced lubrication system: Reduce friction and wear, dissipate heat and cool the power end, extend service life and improve operating efficiency.
• Forced water cooling system: to make sure long time running without high temp.
• Setting with pressure regulating valve, safety valve and pressure gauge;

* Diesel engine: 6-cylinder; speed: 1500-1800rpm;  Brand can be customized

                        Electric start: 12v/100Ah storage battery * 2 sets;

* with the radiator tank has a good cooling effect on the diesel engine.

* Water tank: Stainless steel material, volume 200-300L; The high-pressure pump provides high-level water inlet to ensure that no air enters the high-pressure pump, which plays a good protective role for the high-pressure pump

* Booster pump and water inlet filter: to make sure water inlet pressure and Cleanliness,Prevent impurities from entering the high-pressure pump,

Technical parameter

* Note: Can be customized with pressure and water flow.

Application :

Notes:

• High-pressure cleaners are categorized by pressure range (e.g., 100-3000+ bar) and temperature (cold/hot water), tailored to specific tasks.

• Applications often overlap across industries due to the versatility of high-pressure systems

HeNan XuZhiYang Machinery Co., Ltd. Manufactuerr for high pressure water jetting machine. With more than 15 years experience and passion for innovative high-pressure engineering solutions with own high-pressure plunger pumps and units (pressure range from 100bar to 3000bar ), a dedicated and reliable partner in various industries worldwide. With solutions in the field of ultra-high-pressure water jetting, water blasting, high pressure jetter and for industrial applications in Construction, Chemical, Energy, Oil & Gas, Maritime, Steel and Cement.

Main products of our HeNan XuZhiYang : High pressure cleaning machine, sewer tube cleaning machine, industrial pipe cleaning machine, shipyard rust remove machine, high pressure pump, high pressure jetter, high pressure water descaling system, wet sand blasting machine for rust paint remove; etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. Which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc.

 Q1:What pressures and flow rates are available in these machines?
