Industrial Pipe Cleaning Equipment 1500Bar Diesel Powered Hydro Blasting Machine

FOB Price

US$ 19800.00

≥1 Sets

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

machine type	HIGH PRESSURE CLEANER	condition	New
place of origin	Henan, China	brand name	XUZHIYANG
feature	Rust / Corrosion Inhibitor	power source	Diesel
use	industrial cleaning	cleaning process	Cold Water Cleaning
cleaning type	HIGH PRESSURE CLEANER	industry used	Electronic Industry, Food Processing
material	Metal / Coil	Power	264
dimension(lwh)	380170190cm	warranty	1 Year
weight (kg)	3500	Voltage	380 V
Pump Type	TRIPLEX	Fuel Tank Capacity	200L
Horsepower	264kw	Water Tank Capacity	300L
Flow Rate	50-85L/min	Pump Drive	direct mount
Pressure Washer Duty	Heavy-Duty	Product Name	hydro jetting machine
rate pressure	1500bar	water flow	50-85L/min
diesel engine	264kw, 6-cylinder	movable	with wheels

Product Description

Product Overview

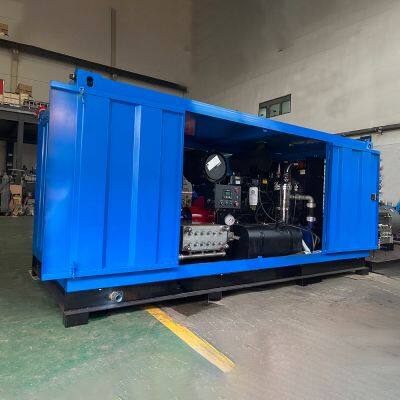

High pressure hydro jet machine

This high pressure hydro jet machine is driven with 6-cylinder diesel engine, Max. working pressure 22000psi/1500bar; chould be better for industrial heavy dirt cleaning, condenser/ heat exchanger pipe cleaning, tube/tank cleaning, marine rust paint removal, concrete surface roughening, cement removal, etc. welcome customized.

FEATURES AT A GLANCE

Model: XZY501500

Rate pressure: 150Mpa/1500bar/22000psi

water flow: 50L/min / 13.2 GPM

pump speed: 366rpm

pump plunger diameter: 24mm;

with regulating valve, safety valve

pressure gauge;

Diesel engine drive: 264kw, 6-cylinder;

Fuel tank & water tank & booster pump with water inlet filter.

Name: High pressure plunger pump

Rate pressure: 150Mpa/1500bar/22000psi

water flow: 50L/min / 13.2 GPM

pump speed: 366rpm

pump plunger diameter: 24mm;

with regulating valve, safety valve

pressure gauge;

Front face

right face

left face

PRODUCT SPECIFICATIONS

Model	Rate pressure	Water flow	Electric motor drive	Diesel engine drive
XY501500	150MPa/1500bar	50 L/min	160kw	225kw
XY701200	120Mpa/1200bar	70 L/min	160kw	225kw
XY851500	150Mpa/1500bar	85 L/min	200kw	264kw
XY501000	100Mpa/1000bar	50 L/min	90kw	120kw
XY70700	70Mpa/700bar	70 L/min	90kw	120kw
XY60500	50MPa/500bar	60 Lmin	55kw	64kw
XY85500	50Mpa/500bar	85 L/min	90kw	120kw
XY22500	50Mpa/500bar	22 L/min	22kw	33kw

PRODUCT CONFIGURATION

6-cylinder diesel engine

150Mpa high pressure pump

Seismic pressure gauge

Overflow water spray gun

Pressure has 1500bar/2800bar

Overflow type

Contact thead: M22*1.5 & M24*1.5

material: stainless steel

High pressure rubber hose

Inner diameter:1/2'' , 3/8'', DN8, DN10, DN12, DN13; etc

Pressure: Max.2800bar;

material: ruber with wire winding inside

Barracuda nozzle / turbo nozzle

4-jet rotating nozzle

better for surface strong dirt cleaning

Flexible lance

Pressure 1500bar/2800bar/3035bar

Size: DN8-10-12mm;

Contact thead: M22*1.5 & M24*1.5

Length can be customized

Overflow foot control valve

Pressure has 1500bar/2800barOverflow type
Contact thead: M22*1.5 & M24*1.5
material: stainless steel

industrial Pipe Cleaning nozzle

Size: DN13,24,40, etc;

7-jet rotating nozzle;

Pressure: 1500bar/2800bar

for industrial inner pipe cleaning

Successful Project

industrial pipe cleaning

pipe cleaning effect

industrial strong dirt cleaning

Marine rust paint removal

Tank & reactor cleaning

concrete surface roughening

large Pipe cleaning

cement removal

concrete cutting

Product packaging

FAQ

Q1：What pressures and flow rates are available in these machines?

A1：Pressure ranges from 3,000 PSI to 40,000 PSI (200 to 2800 bar) or more. Flow rates typically range from 15 to 600 L/min;

Q2: Are you trading company or manufacturer?

A2：We are manufacturer here for over 10years, can OEM machines according to customized request.

Q3: How do I choose the right nozzle for my application?

A3: Fan Nozzles: For surface cleaning. Rotary Nozzles: For deep cleaning and descaling. Piercing Nozzles: For cutting and precise applications. Pipe cleaning nozzles: For industrial pipe/sewer drain pipe cleaning; Turbo nozzle: for surface strong dirt cleaning, Customized Nozzles: Designed for specific tasks or materials.

Q4:What type of water should be used in these machines?

A4:Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.

Q5:What are the power options for high-pressure water jetting machines?

A5: Electric: Suitable for indoor use and quieter operation. Diesel: Preferred for outdoor use and higher power needs. Gasoline: Portable option, ideal for remote locations.

Q6:Can I customize a high-pressure water jetting machine for specific needs?

A6:Yes, many manufacturers offer customization options to tailor the machine for specific applications or requirements. Contact the manufacturer for details.

Q7:How do I choose suitable model?

A7:You can confirm your working purpose request, we have rich experience

Q8:How long is your delivery time?

A8:Normal 3-10 days; Customized order need to confirm with the seller.

Q9:What Certificate do you have?

A9:We can offer CO ( Certificate of Origin）， FA（Form A）, FE, FF; CE certificate,

Q10:Which is your shipping port?

A10: Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.

Q11:Do you offer training or instructional materials on how to use your machines safely and effectively?

A11:We offer online training, and have video to introduce machine and operating. also if you need, our tech. can come to your country for training.
