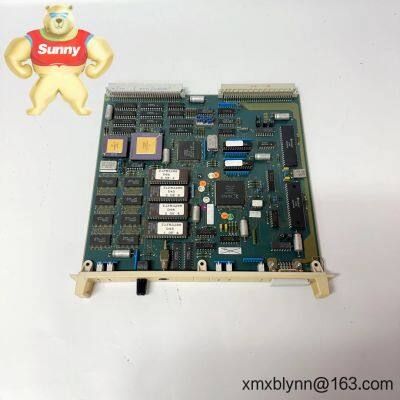

ABB DSBC172 57310001-KD – Bus Supervision Board for Advant/Legacy DCS Racks

The ABB DSBC172 (part no. 57310001-KD) is a bus supervision board designed to monitor, condition, and safeguard the system bus within ABB Advant/legacy DCS rack environments. In many cases it acts as the “health keeper” for the backplane, stabilizing communication and flagging faults before they impact controllers or I/O modules.

From my experience, plants keep the DSBC172 on hand for lifecycle support—especially where continuity of MB/S100-style backplane communications is critical. It typically drops in with no wiring changes, restoring stability to aging racks and reducing nuisance bus errors.

• Backplane bus supervision – Continuously monitors bus integrity and timing, helping prevent erratic I/O updates and controller communication faults.

• Fault indication – Clear front-panel LED status (and test points on many revisions) make it faster to localize bus issues during maintenance.

• Signal conditioning – Stabilizes bus levels and, in many cases, mitigates noise on longer or heavily loaded racks.

• Drop-in replacement – Fits ABB Advant/legacy DCS rack formats where DSBC172 is specified; typically no software changes required.

• Revision KD – 57310001-KD denotes the hardware revision variant, preferred in many installed bases for its proven reliability.

• Lifecycle support – Practical path to keep mature systems running while planning phased upgrades to newer platforms.

You’ll typically see the DSBC172 used in mature ABB DCS architectures where maintaining bus integrity is vital:

• Power generation units (boiler/turbine islands) maintaining stable I/O scans on legacy racks

• Oil & gas plants requiring predictable controller-to-I/O communication under electrical noise

• Chemicals and petrochemicals where trip and interlock logic depends on clean backplane timing

• Pulp & paper and metals lines that run continuously and need dependable rack-level communications

• Reliability – Helps stabilize older racks, reducing intermittent bus faults that are hard to trace.

• Compatibility – Designed for ABB Advant/legacy DCS frames where DSBC172 is specified, typically no code or wiring changes.

• Cost control – Extends the usable life of installed assets and avoids rushed platform migrations.

• Serviceability – LED indication and accessible test points speed up diagnostics for maintenance teams.

A maintenance supervisor at a combined-cycle plant told us their nuisance bus alarms dropped off after swapping in a DSBC172-KD—no other changes. That seems to be the common outcome in most cases when the issue is backplane noise or marginal signaling.

• Cabinet environment – Keep to clean, temperature-controlled conditions with adequate ventilation; avoid high-vibration mounting.

• ESD handling – Use proper grounding, wrist straps, and antistatic procedures when inserting/removing the board.

• Rack slotting – Install only in the designated slot per your ABB rack manual; check that backplane connectors are clean and undamaged.

• Wiring – No field wiring to the DSBC172; confirm adjacent modules and terminators are correctly seated to ensure stable bus loading.

• Routine care – Inspect front-panel LEDs during walkdowns, clean dust with dry air (low pressure), and verify firmware/EPROM revision where applicable.

• After replacement – Power-cycle per site procedures and confirm stable scan/communication status before returning the unit to service.

• Typically CE compliant for industrial control equipment; UL/CSA recognition depends on the host rack/system certification

• Manufactured to ABB quality standards; traceability by part number and revision (57310001-KD)

• Standard commercial warranty terms are commonly 12 months from shipment, subject to supplier policy

The DSBC172 is commonly deployed within ABB Advant/legacy DCS racks alongside controller and I/O modules. In many installed bases you’ll find it paired with Advant Master rack hardware and classic I/O cards, providing supervision of the backplane those modules share.
